9/B105

Top Width: 6.144" (156.06mm)
Outside Length: 106.8" (2712.7mm)
Inside Length: 105" (2667mm)
Min Pulley Diameter: 5.4"
Configuration: 9-Band Set

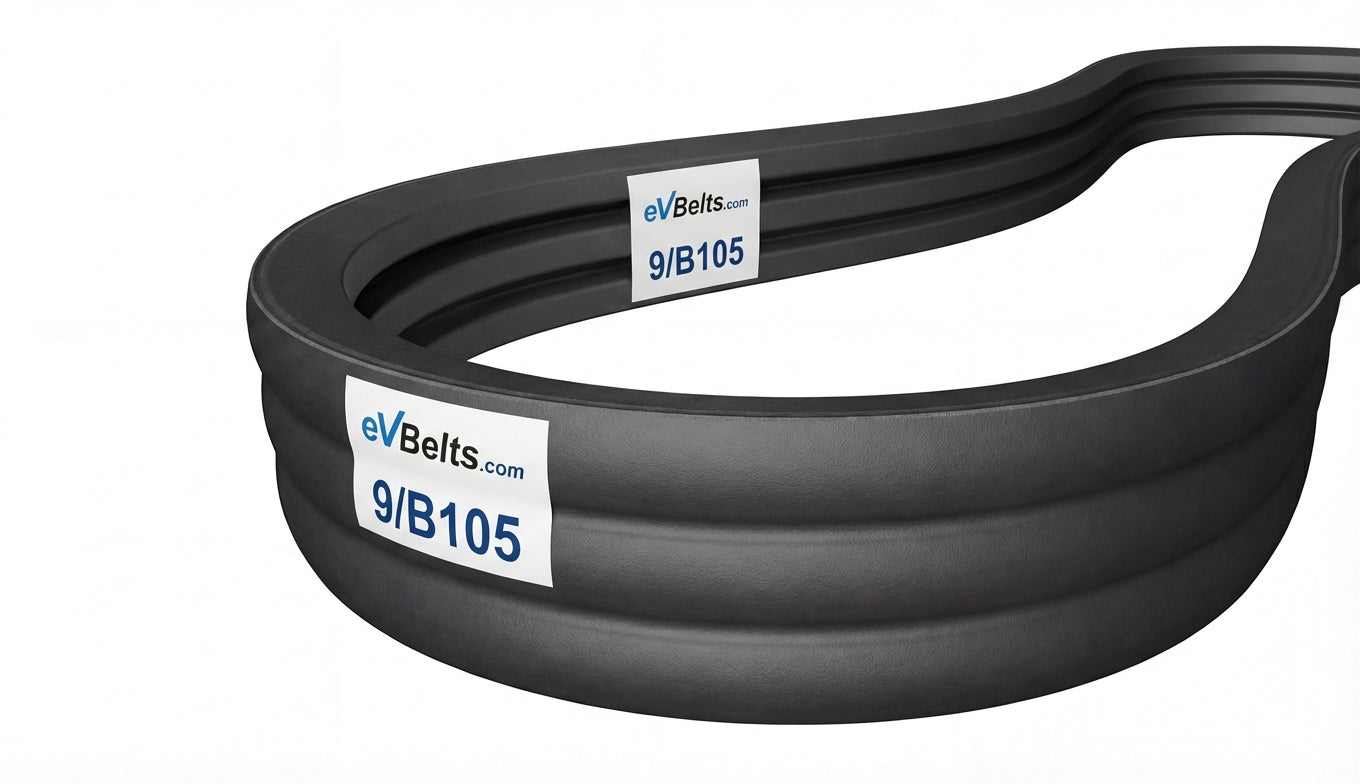

The 9/B105 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 106.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215563

$183.59

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	9/B105
Top Width	6.144 in / 156.06 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	105.0 in / 2667.0 mm
Outside Length	106.8 in / 2712.7 mm
Effective Length	106.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	9
