8/B56
8/B56
/
/

8/B56

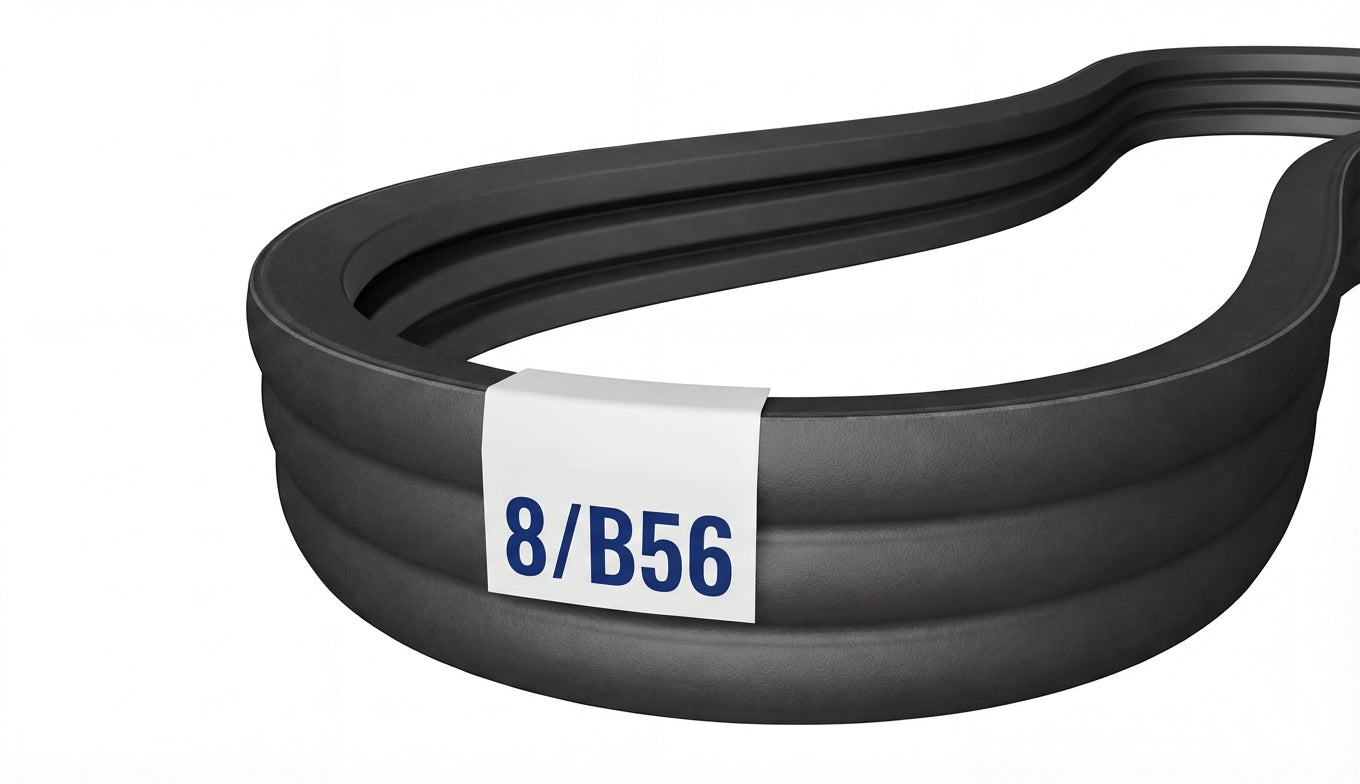

The 8/B56 is a factory-joined 8-band B banded belt assembly measuring 5.458" wide x 57.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215425

$95.34

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications
Part Number 8/B56
Top Width 5.458 in / 138.63 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 56.0 in / 1422.4 mm
Outside Length 57.8 in / 1468.1 mm
Effective Length 57.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 8
