8/B52

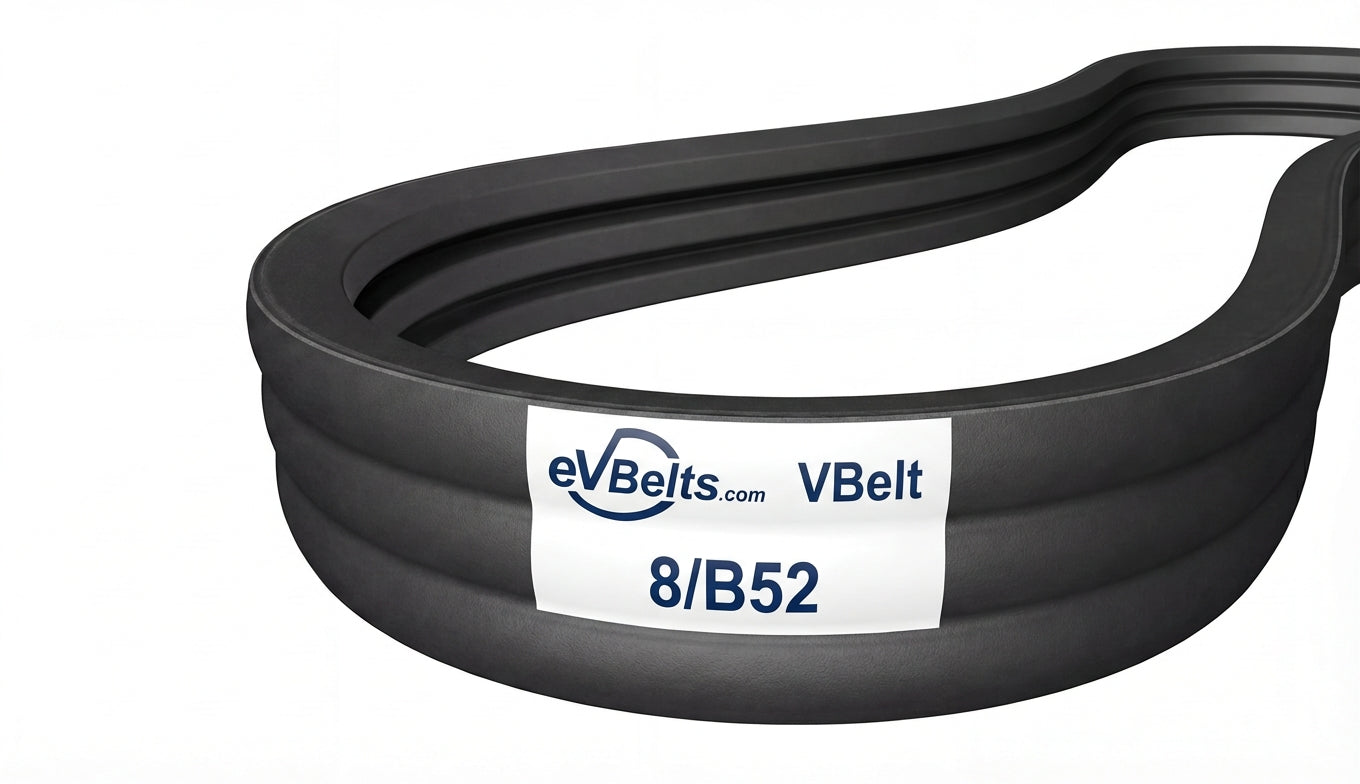

The 8/B52 is a factory-joined 8-band B banded belt assembly measuring 5.458" wide x 53.8" long, featuring oil and heat resistant rubber construction.
SKU: 1215421
$92.50
9250
0 In Stock
Estimated delivery between June 25 and June 27.
Technical Specifications
| Part Number | 8/B52 |
| Top Width | 5.458 in / 138.63 mm |
| Belt Depth | 0.4375 in / 11.11 mm |
| Inside Length | 52.0 in / 1320.8 mm |
| Outside Length | 53.8 in / 1366.5 mm |
| Effective Length | 53.4 in |
| Min Sheave Diameter | 5.4 in / 137.2 mm |
| Ribs | 8 |
