8/B195

Top Width: 5.458" (138.63mm)
Outside Length: 196.8" (4998.7mm)
Inside Length: 195" (4953mm)
Min Pulley Diameter: 5.4"
Configuration: 8-Band Set

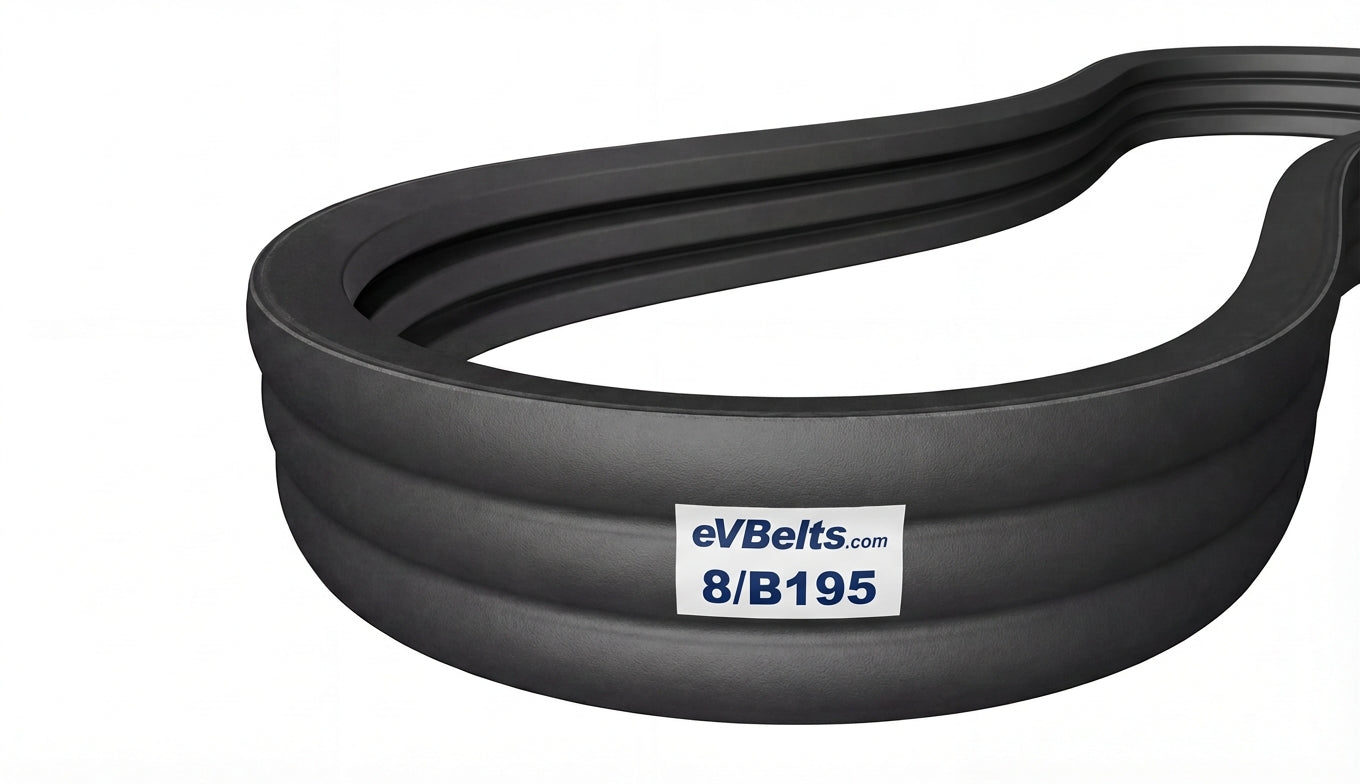

The 8/B195 is a factory-joined 8-band B banded belt assembly measuring 5.458" wide x 196.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215497

$203.31

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	8/B195
Top Width	5.458 in / 138.63 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	195.0 in / 4953.0 mm
Outside Length	196.8 in / 4998.7 mm
Effective Length	196.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	8
