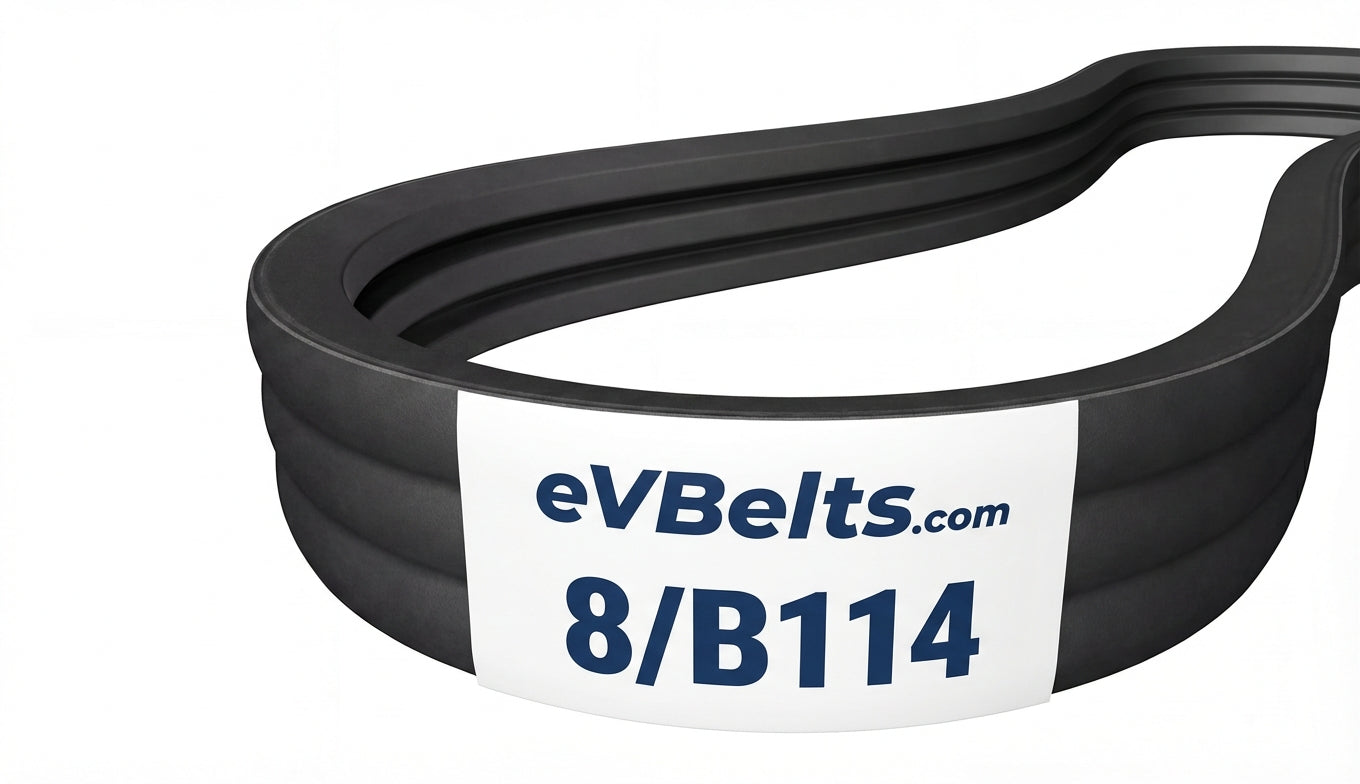

8/B114

Top Width: 5.458" (138.63mm)
Outside Length: 115.8" (2941.3mm)
Inside Length: 114" (2895.6mm)
Min Pulley Diameter: 5.4"
Configuration: 8-Band Set

The 8/B114 is a factory-joined 8-band B banded belt assembly measuring 5.458" wide x 115.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215472

$178.04

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	8/B114
Top Width	5.458 in / 138.63 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	114.0 in / 2895.6 mm
Outside Length	115.8 in / 2941.3 mm
Effective Length	115.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	8
