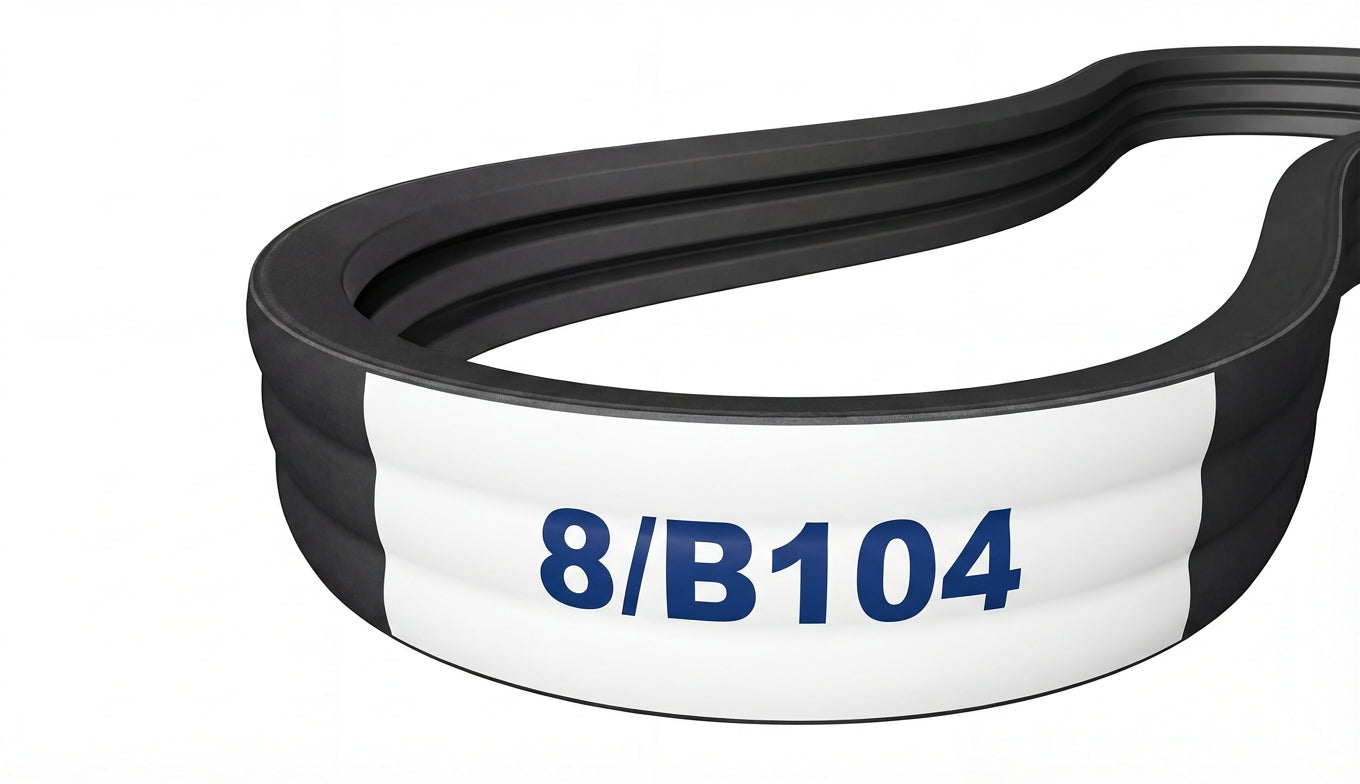

8/B104
The 8/B104 is a factory-joined 8-band B banded belt assembly measuring 5.458" wide x 105.8" long, featuring oil and heat resistant rubber construction.
SKU: 1215465
$161.56
16156
0 In Stock
Estimated delivery between June 25 and June 27.
Technical Specifications
| Part Number | 8/B104 |
| Top Width | 5.458 in / 138.63 mm |
| Belt Depth | 0.4375 in / 11.11 mm |
| Inside Length | 104.0 in / 2641.6 mm |
| Outside Length | 105.8 in / 2687.3 mm |
| Effective Length | 105.4 in |
| Min Sheave Diameter | 5.4 in / 137.2 mm |
| Ribs | 8 |
