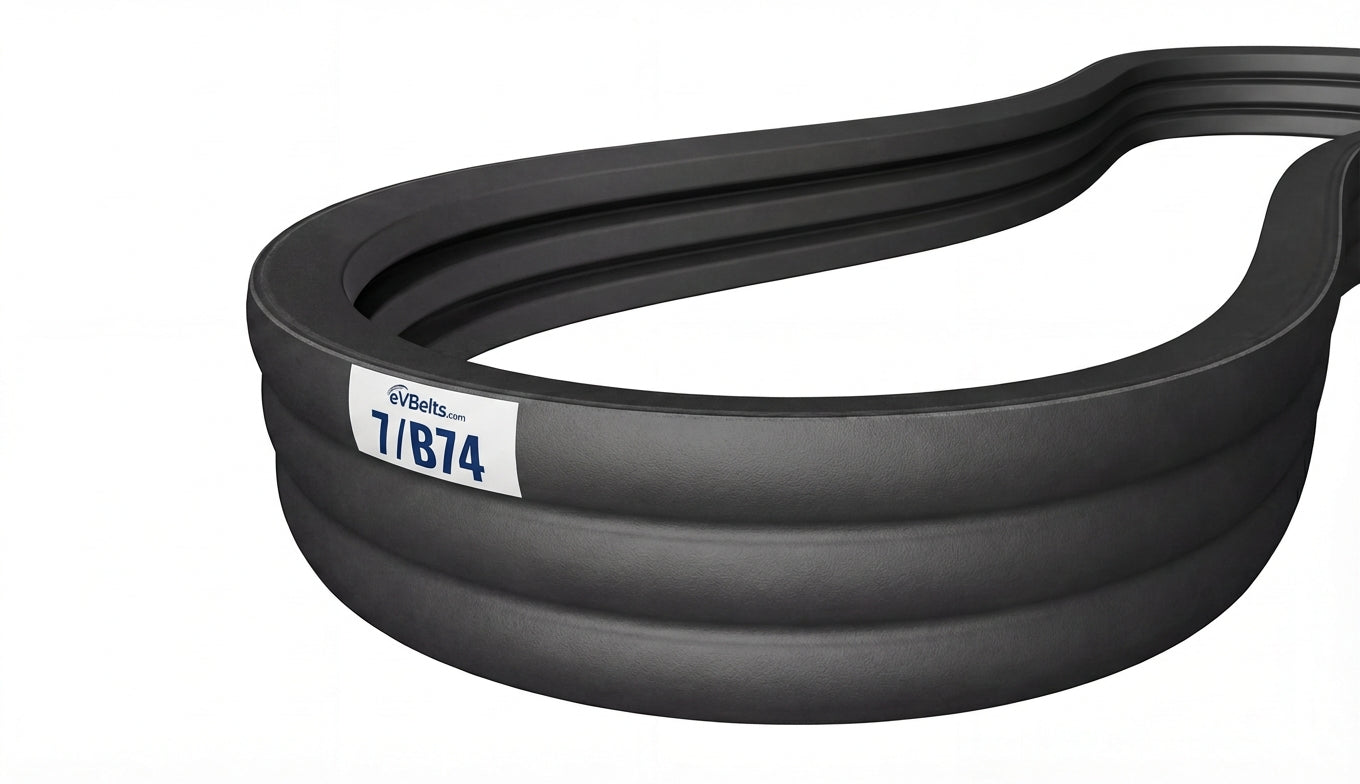

The 7/B74 is a factory-joined 7-band B banded belt assembly measuring 4.772" wide x 75.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215344

$101.72

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications
Part Number 7/B74
Top Width 4.772 in / 121.21 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 74.0 in / 1879.6 mm
Outside Length 75.8 in / 1925.3 mm
Effective Length 75.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 7
