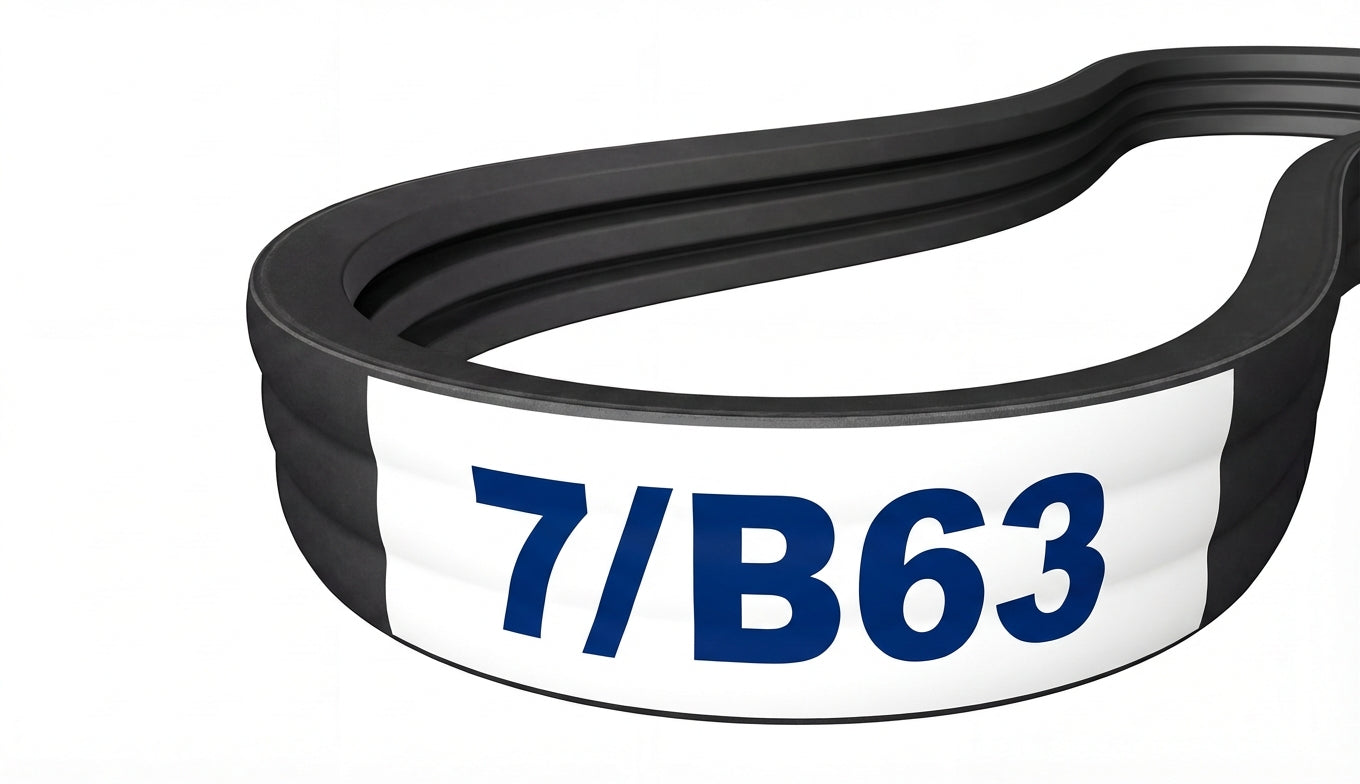

The 7/B63 is a factory-joined 7-band B banded belt assembly measuring 4.772" wide x 64.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215334

$89.13

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications
Part Number 7/B63
Top Width 4.772 in / 121.21 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 63.0 in / 1600.2 mm
Outside Length 64.8 in / 1645.9 mm
Effective Length 64.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 7
