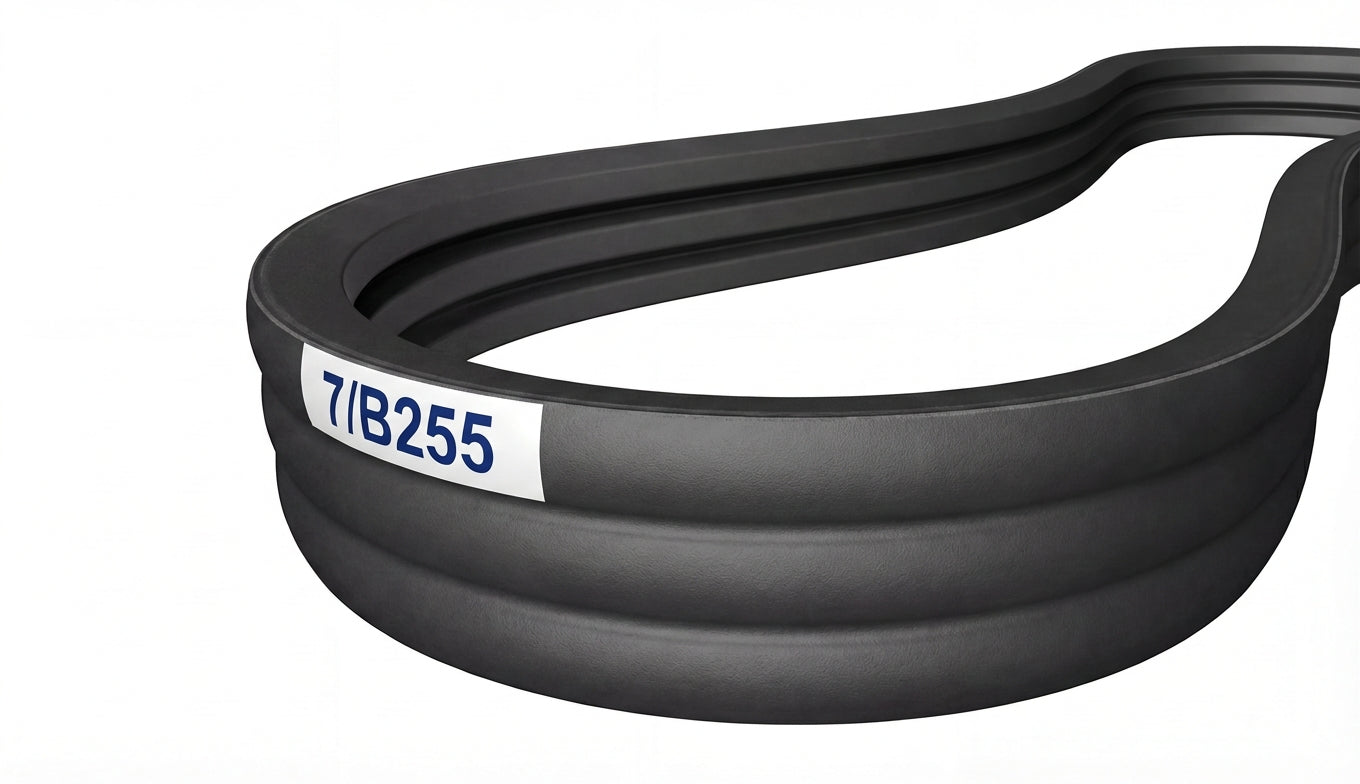

7/B255

Top Width: 4.772" (121.21mm)
Outside Length: 256.8" (6522.7mm)
Inside Length: 255" (6477mm)
Min Pulley Diameter: 5.4"
Configuration: 7-Band Set

The 7/B255 is a factory-joined 7-band B banded belt assembly measuring 4.772" wide x 256.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215405

$344.24

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	7/B255
Top Width	4.772 in / 121.21 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	255.0 in / 6477.0 mm
Outside Length	256.8 in / 6522.7 mm
Effective Length	256.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	7
