7/B240

Top Width: 4.772" (121.21mm)
Outside Length: 241.8" (6141.7mm)
Inside Length: 240" (6096mm)
Min Pulley Diameter: 5.4"
Configuration: 7-Band Set

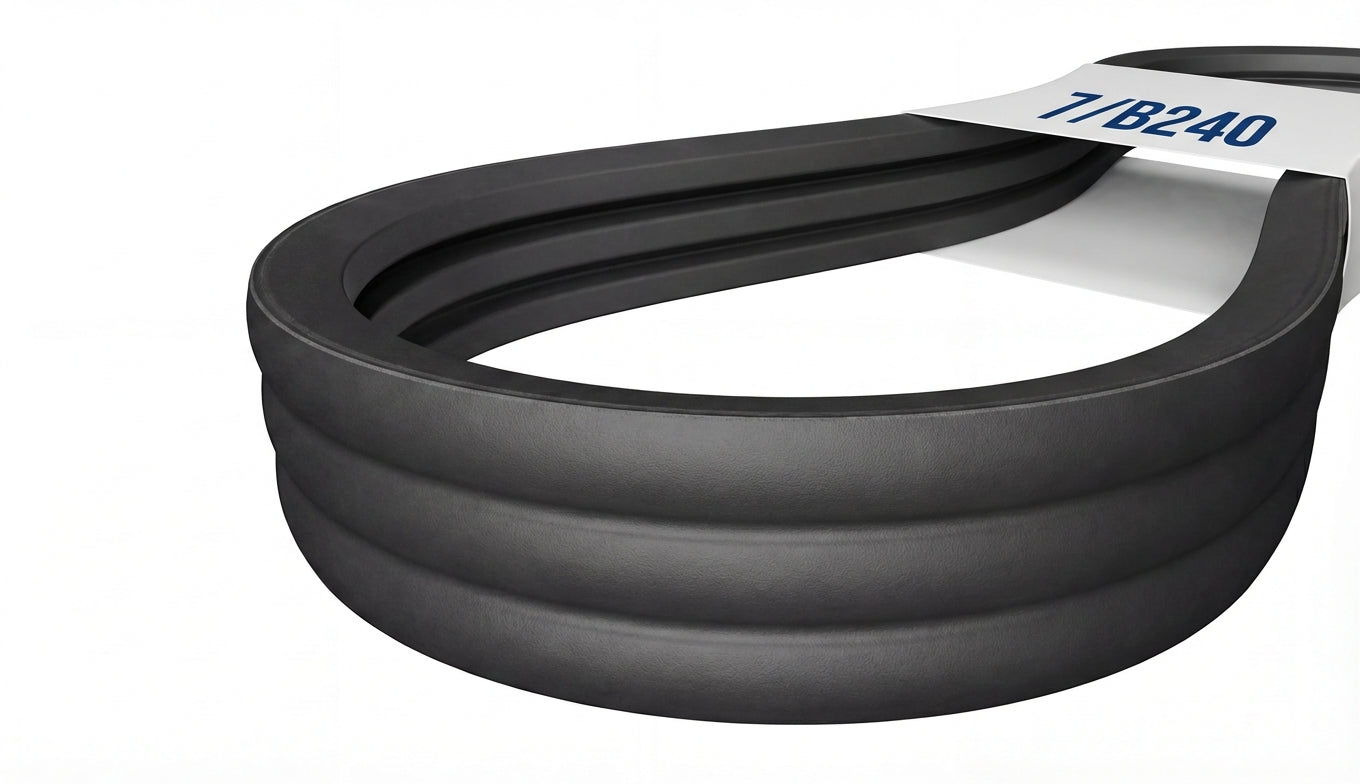

The 7/B240 is a factory-joined 7-band B banded belt assembly measuring 4.772" wide x 241.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215404

$322.77

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	7/B240
Top Width	4.772 in / 121.21 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	240.0 in / 6096.0 mm
Outside Length	241.8 in / 6141.7 mm
Effective Length	241.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	7
