7/B150

Top Width: 4.772" (121.21mm)
Outside Length: 151.8" (3855.7mm)
Inside Length: 150" (3810mm)
Min Pulley Diameter: 5.4"
Configuration: 7-Band Set

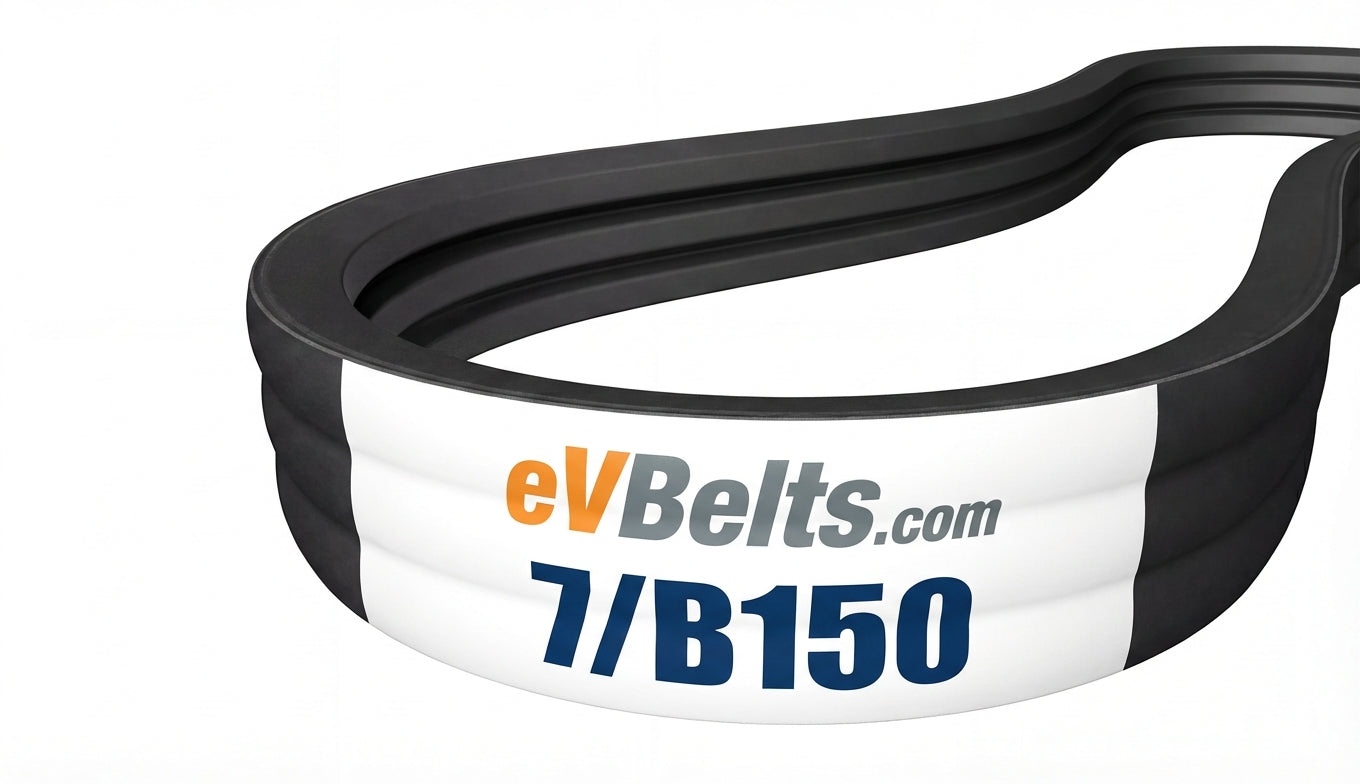

The 7/B150 is a factory-joined 7-band B banded belt assembly measuring 4.772" wide x 151.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215390

$208.02

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	7/B150
Top Width	4.772 in / 121.21 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	150.0 in / 3810.0 mm
Outside Length	151.8 in / 3855.7 mm
Effective Length	151.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	7
