7/B118

Top Width: 4.772" (121.21mm)
Outside Length: 119.8" (3042.9mm)
Inside Length: 118" (2997.2mm)
Min Pulley Diameter: 5.4"
Configuration: 7-Band Set

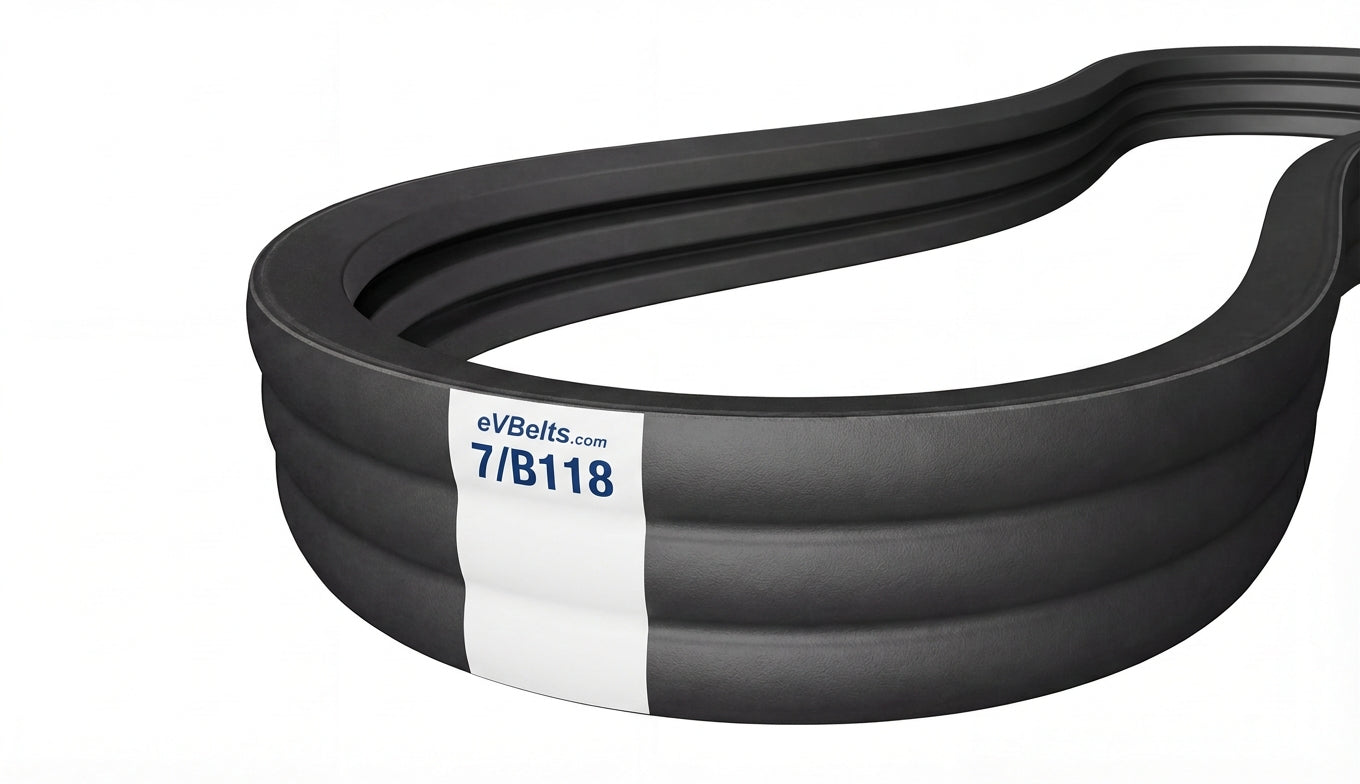

The 7/B118 is a factory-joined 7-band B banded belt assembly measuring 4.772" wide x 119.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215377

$160.53

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	7/B118
Top Width	4.772 in / 121.21 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	118.0 in / 2997.2 mm
Outside Length	119.8 in / 3042.9 mm
Effective Length	119.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	7
