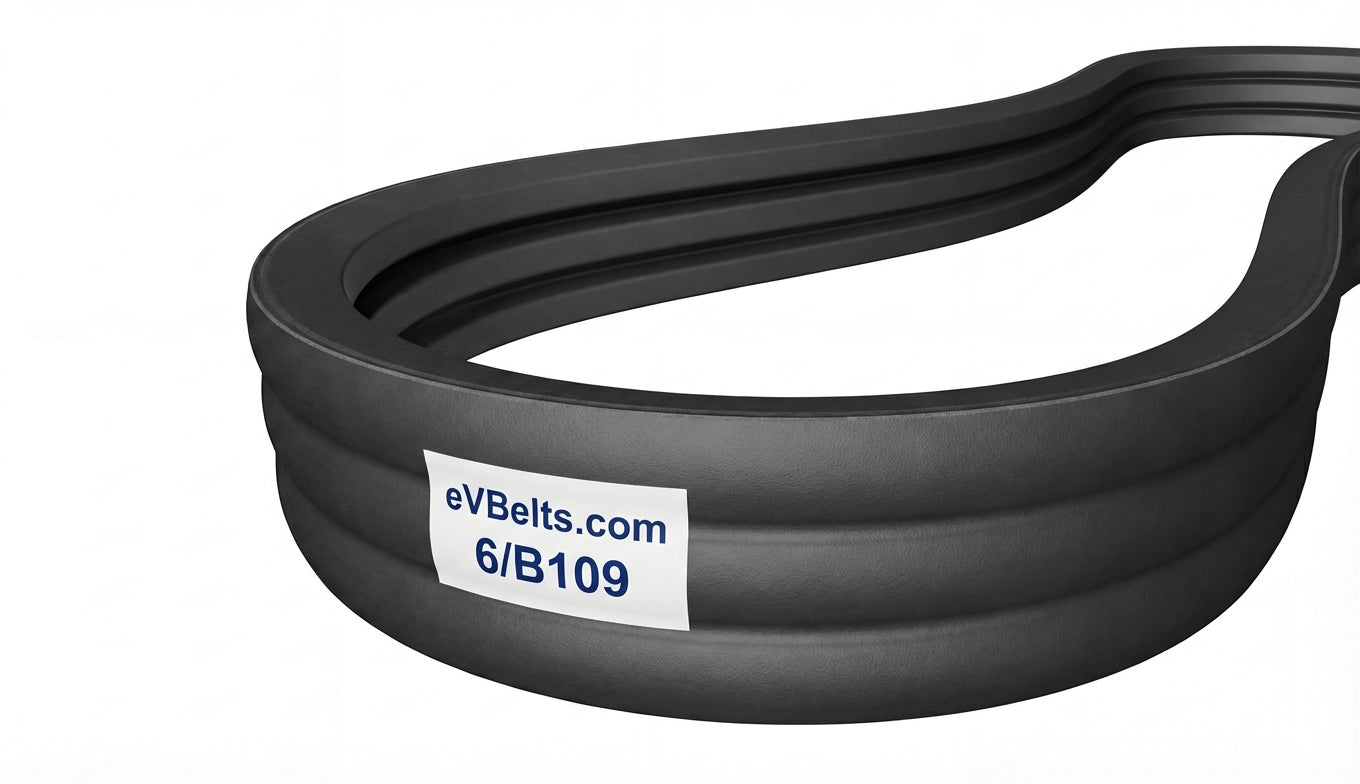

6/B109

Top Width: 4.086" (103.78mm)
Outside Length: 110.8" (2814.3mm)
Inside Length: 109" (2768.6mm)
Min Pulley Diameter: 5.4"
Configuration: 6-Band Set

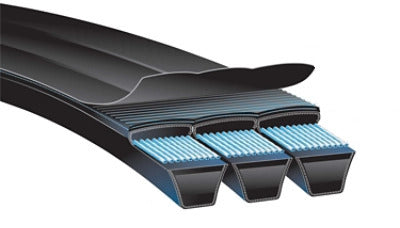

The 6/B109 is a factory-joined 6-band B banded belt assembly measuring 4.086" wide x 110.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215272

$128.36

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	6/B109
Top Width	4.086 in / 103.78 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	109.0 in / 2768.6 mm
Outside Length	110.8 in / 2814.3 mm
Effective Length	110.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	6
