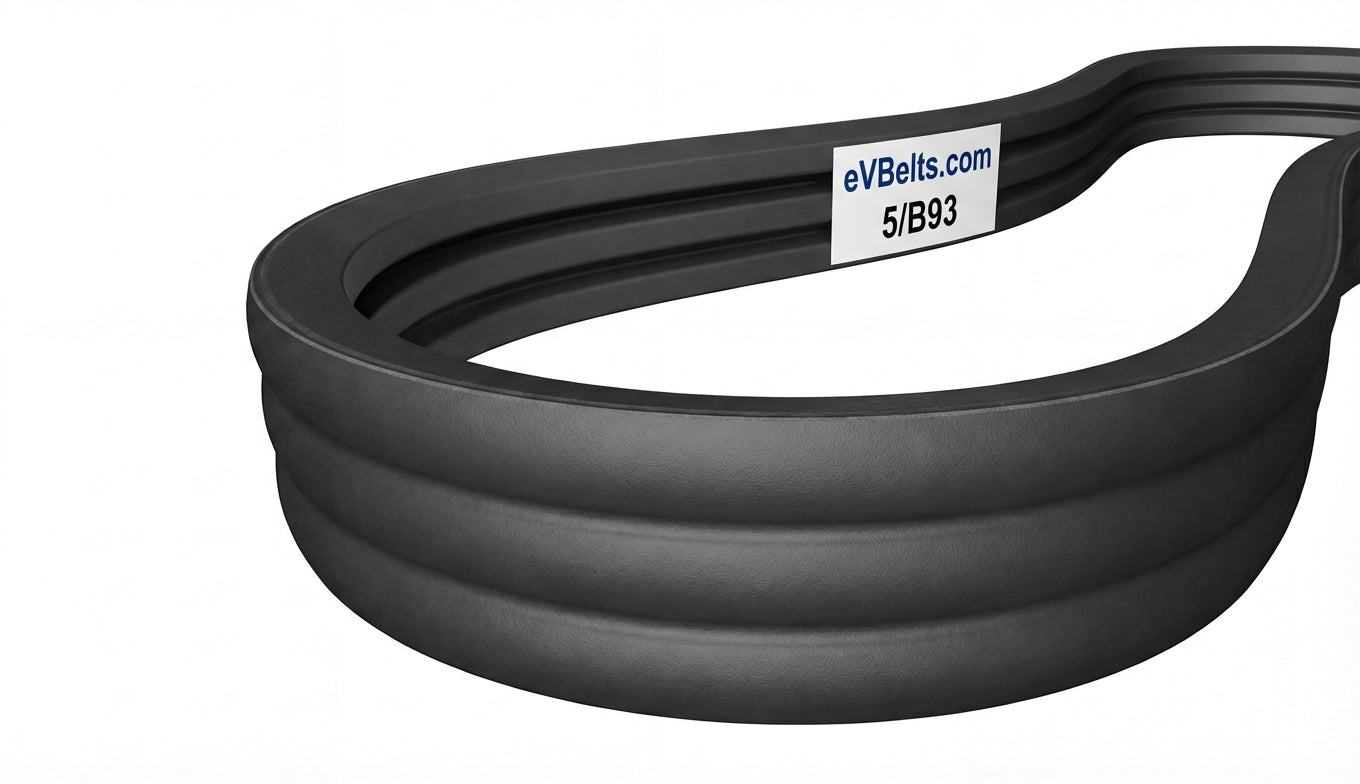

The 5/B93 is a factory-joined 5-band B banded belt assembly measuring 3.4" wide x 94.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215165

$75.95

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications
Part Number 5/B93
Top Width 3.4 in / 86.36 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 93.0 in / 2362.2 mm
Outside Length 94.8 in / 2407.9 mm
Effective Length 94.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 5
