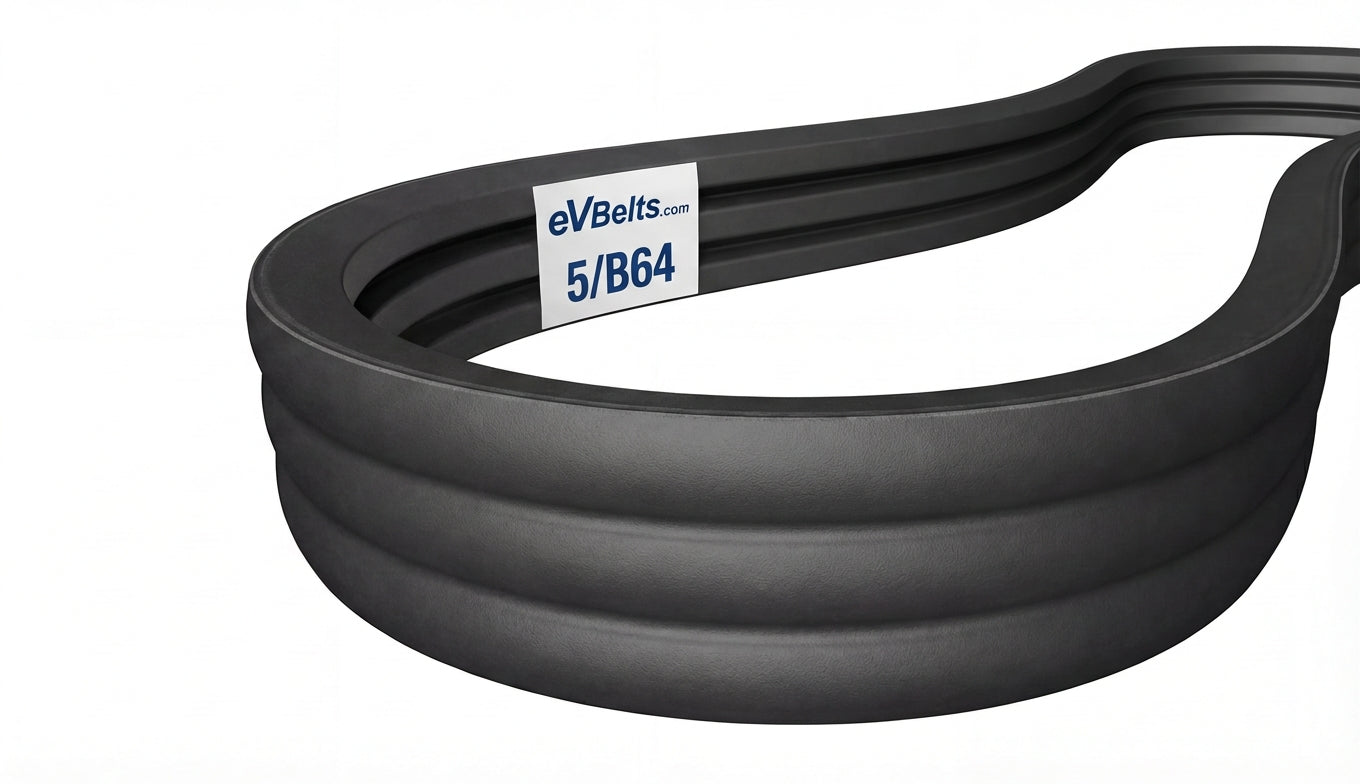

The 5/B64 is a factory-joined 5-band B banded belt assembly measuring 3.4" wide x 65.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215139

$53.36

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications
Part Number 5/B64
Top Width 3.4 in / 86.36 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 64.0 in / 1625.6 mm
Outside Length 65.8 in / 1671.3 mm
Effective Length 65.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 5
