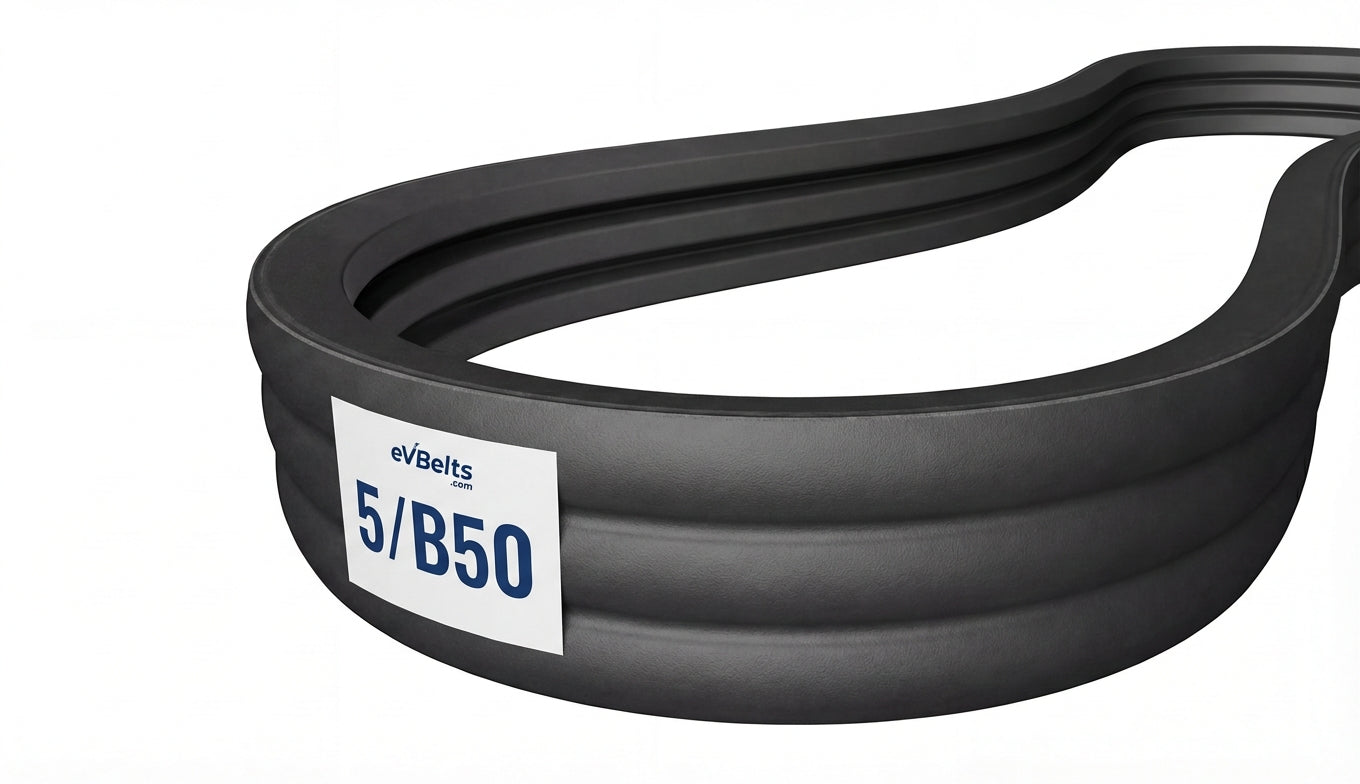

5/B50
The 5/B50 is a factory-joined 5-band B banded belt assembly measuring 3.4" wide x 51.8" long, featuring oil and heat resistant rubber construction.
SKU: 1215126
$53.64
5364
0 In Stock
Estimated delivery between June 24 and June 26.
Technical Specifications
| Part Number | 5/B50 |
| Top Width | 3.4 in / 86.36 mm |
| Belt Depth | 0.4375 in / 11.11 mm |
| Inside Length | 50.0 in / 1270.0 mm |
| Outside Length | 51.8 in / 1315.7 mm |
| Effective Length | 51.4 in |
| Min Sheave Diameter | 5.4 in / 137.2 mm |
| Ribs | 5 |
