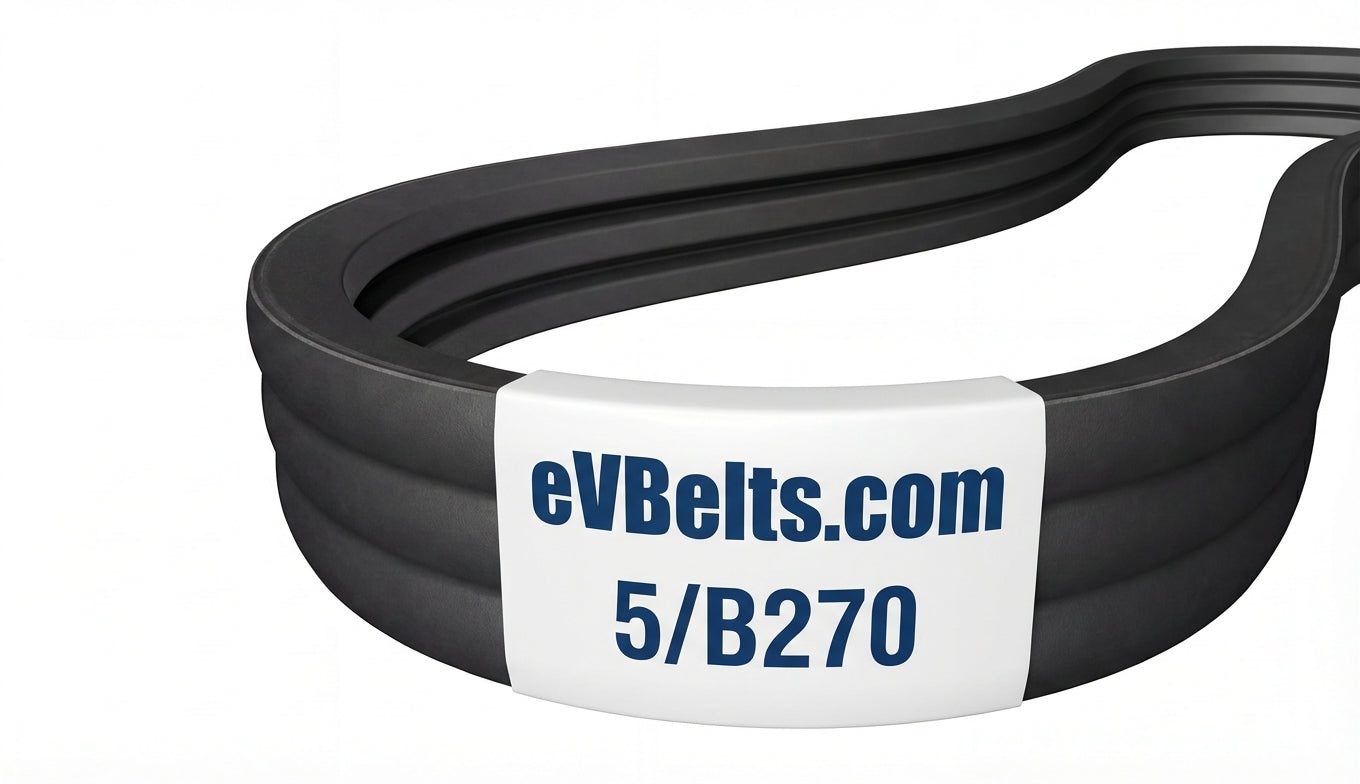

The 5/B270 is a factory-joined 5-band B banded belt assembly measuring 3.4" wide x 271.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215210

$259.32

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications
Part Number 5/B270
Top Width 3.4 in / 86.36 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 270.0 in / 6858.0 mm
Outside Length 271.8 in / 6903.7 mm
Effective Length 271.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 5
