5/B144
5/B144
/
/

5/B144

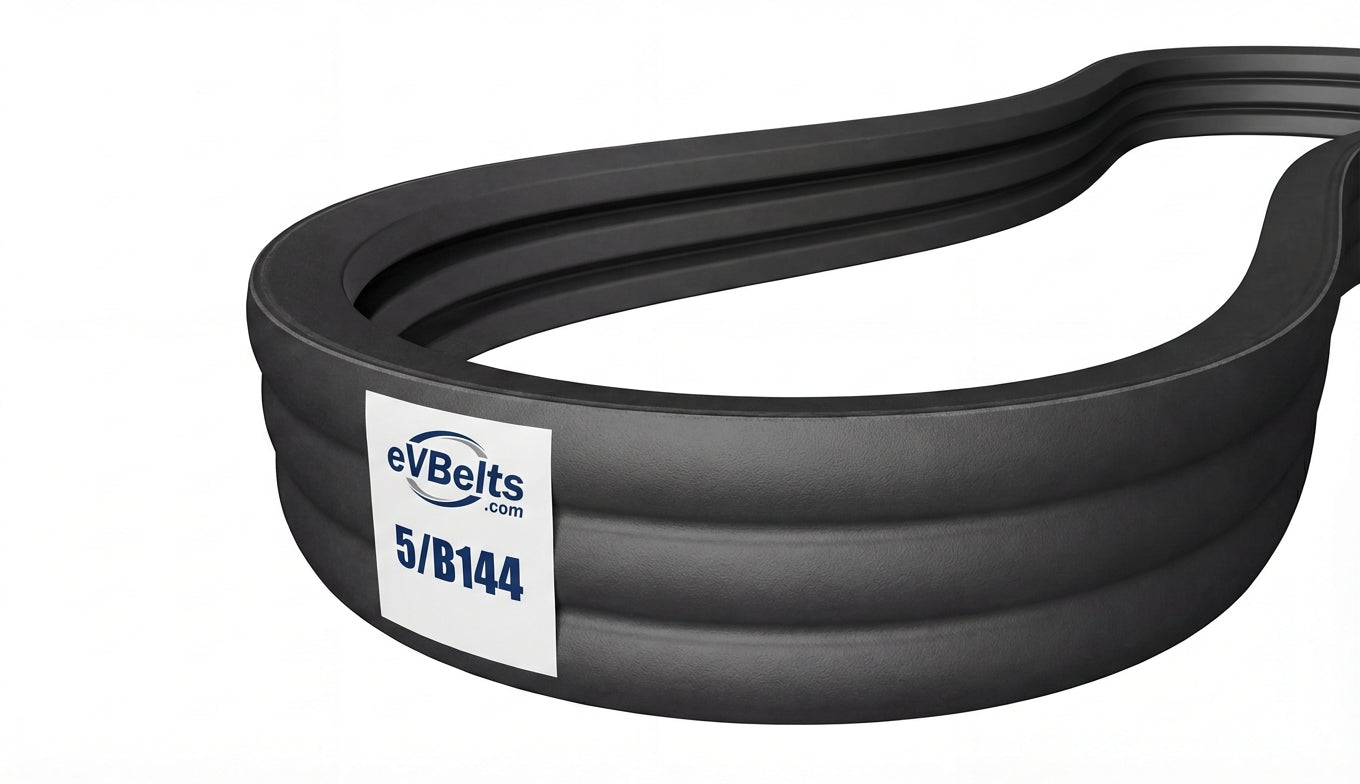

The 5/B144 is a factory-joined 5-band B banded belt assembly measuring 3.4" wide x 145.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215192

$89.82

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications
Part Number 5/B144
Top Width 3.4 in / 86.36 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 144.0 in / 3657.6 mm
Outside Length 145.8 in / 3703.3 mm
Effective Length 145.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 5
5/B144

$89.82

$89.82
