4/B138

Top Width: 2.714" (68.94mm)
Outside Length: 139.8" (3550.9mm)
Inside Length: 138" (3505.2mm)
Min Pulley Diameter: 5.4"
Configuration: 4-Band Set

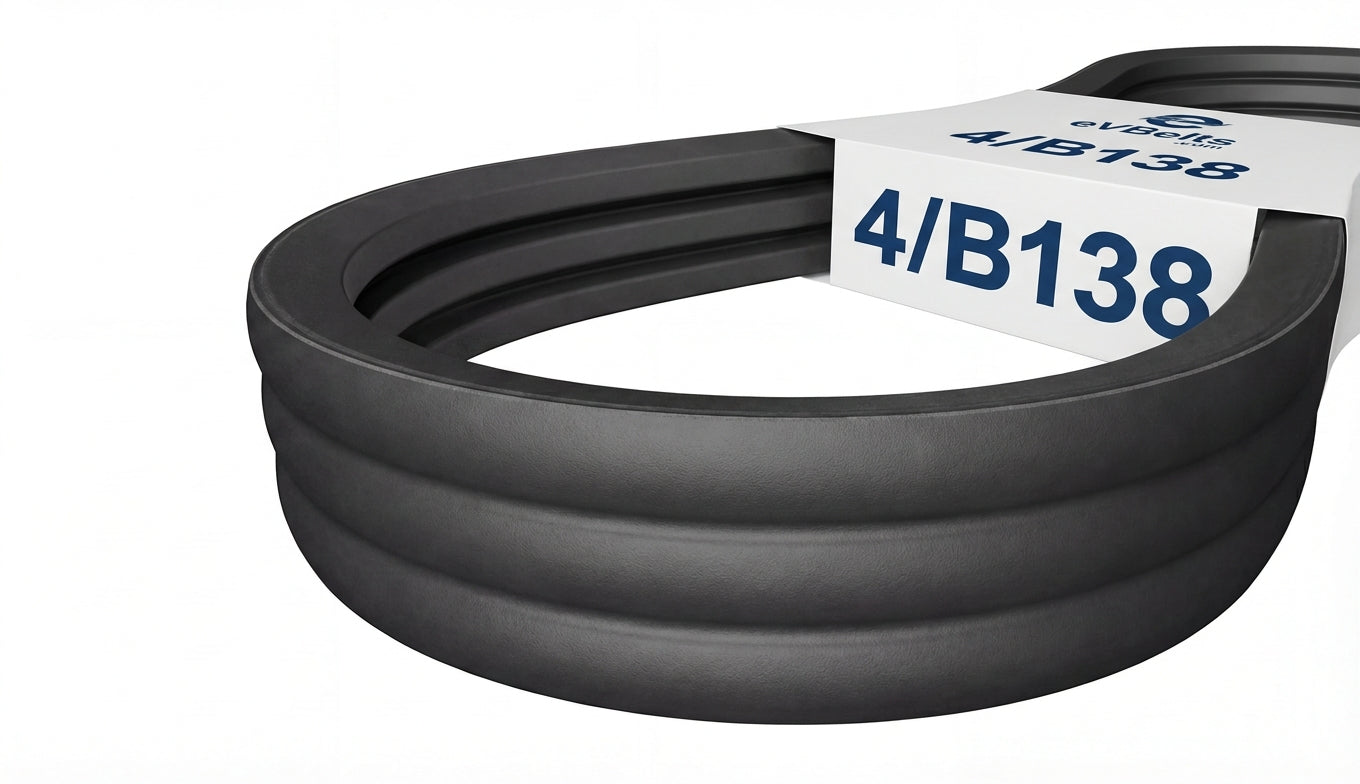

The 4/B138 is a factory-joined 4-band B banded belt assembly measuring 2.714" wide x 139.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215089

$85.62

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	4/B138
Top Width	2.714 in / 68.94 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	138.0 in / 3505.2 mm
Outside Length	139.8 in / 3550.9 mm
Effective Length	139.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	4
