3/B90
3/B90
/
/

3/B90

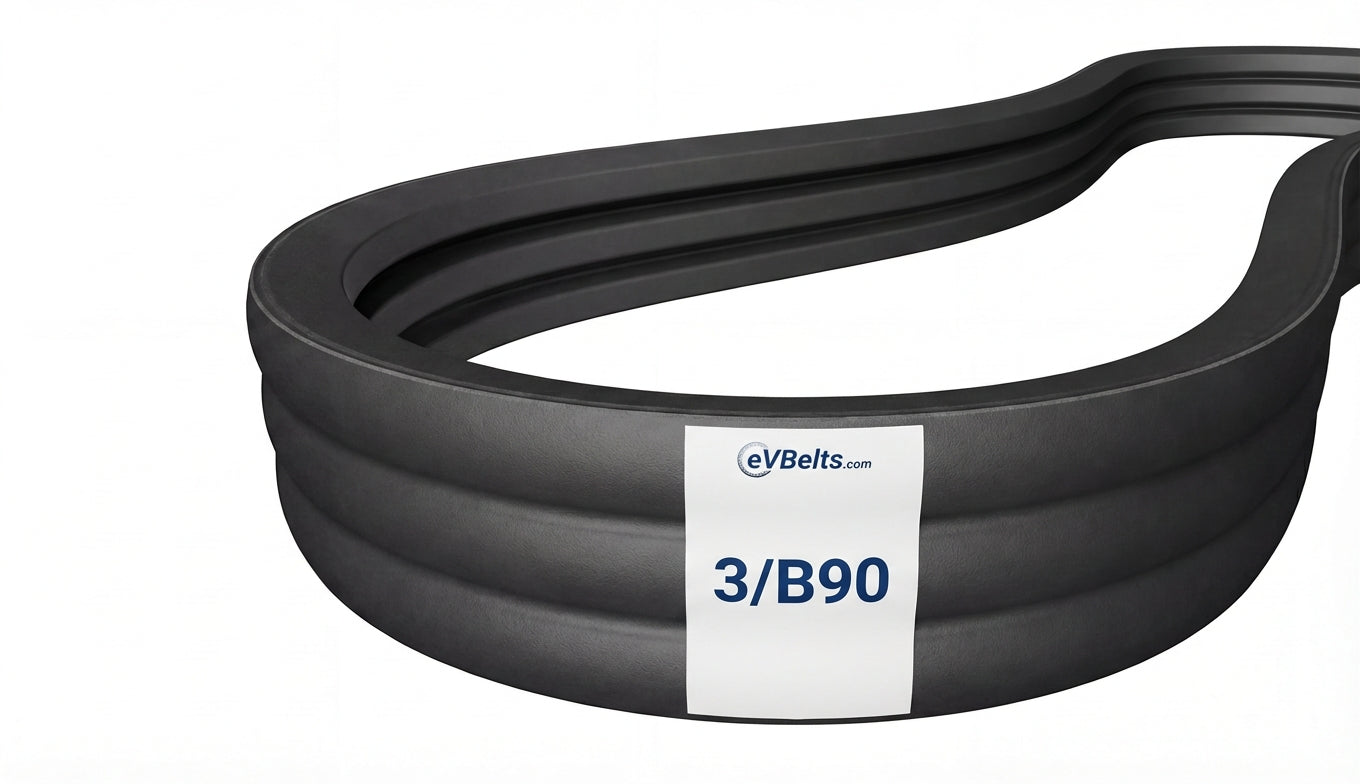

The 3/B90 is a factory-joined 3-band B banded belt assembly measuring 2.028" wide x 91.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214966

$35.57

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications
Part Number 3/B90
Top Width 2.028 in / 51.51 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 90.0 in / 2286.0 mm
Outside Length 91.8 in / 2331.7 mm
Effective Length 91.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 3
