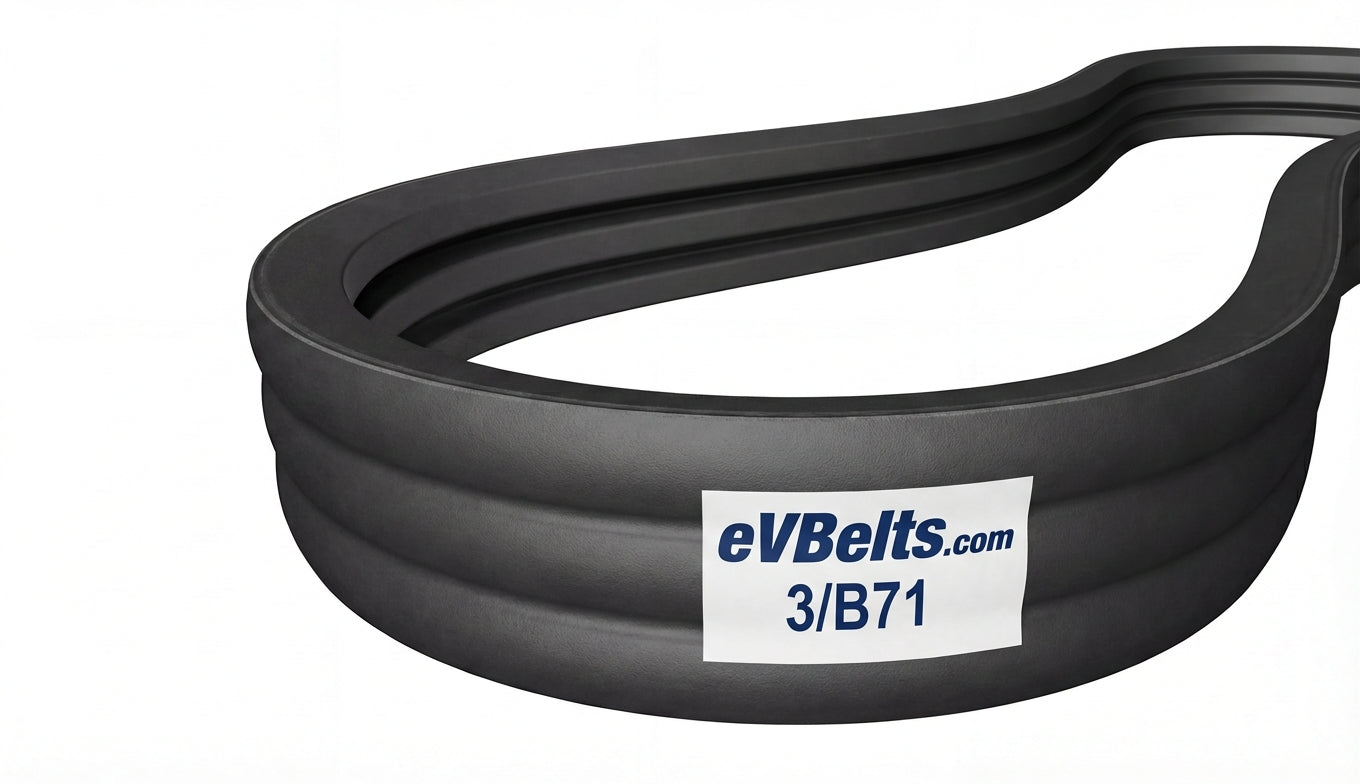

The 3/B71 is a factory-joined 3-band B banded belt assembly measuring 2.028" wide x 72.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214949

$33.30

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications
Part Number 3/B71
Top Width 2.028 in / 51.51 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 71.0 in / 1803.4 mm
Outside Length 72.8 in / 1849.1 mm
Effective Length 72.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 3
