3/B47
3/B47
/
/

3/B47

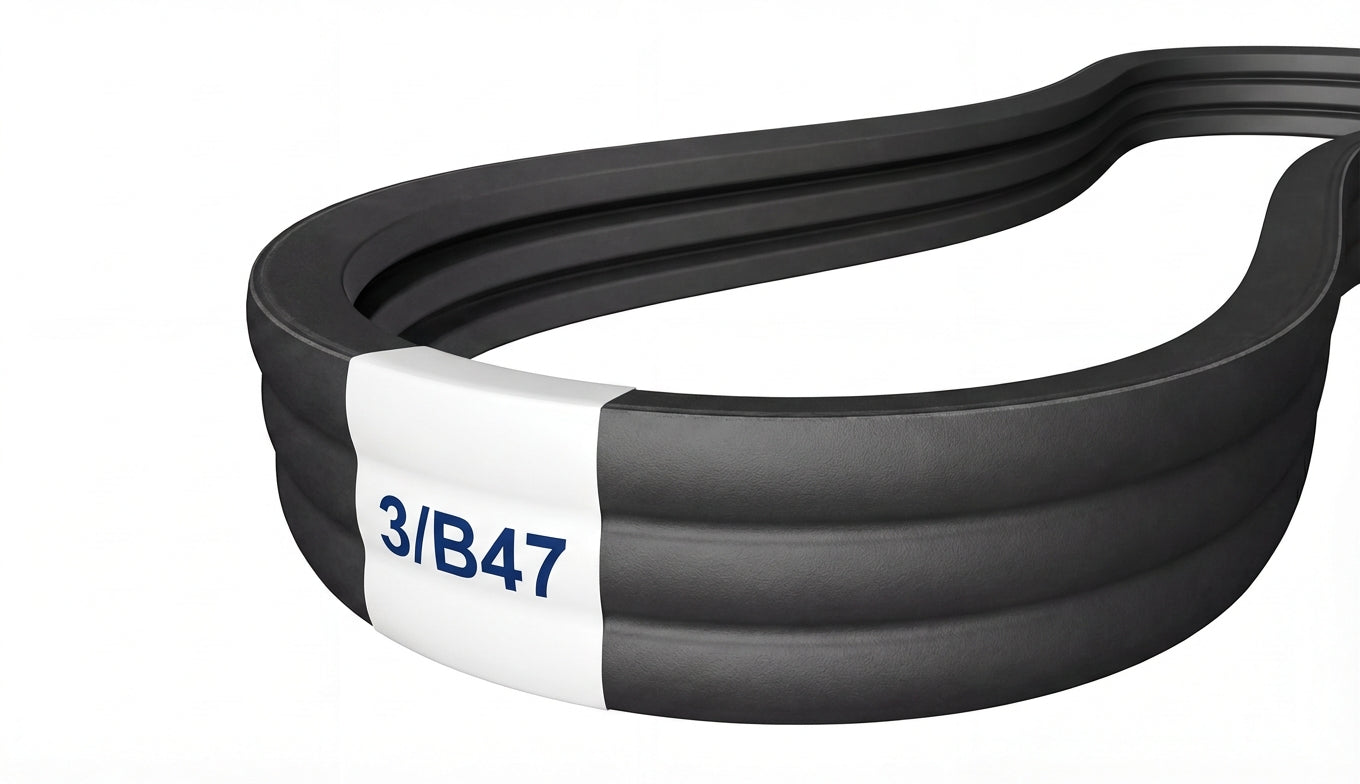

The 3/B47 is a factory-joined 3-band B banded belt assembly measuring 2.028" wide x 48.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214927

$29.49

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications
Part Number 3/B47
Top Width 2.028 in / 51.51 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 47.0 in / 1193.8 mm
Outside Length 48.8 in / 1239.5 mm
Effective Length 48.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 3
