3/B315

Top Width: 2.028" (51.51mm)
Outside Length: 316.8" (8046.7mm)
Inside Length: 315" (8001mm)
Min Pulley Diameter: 5.4"
Configuration: 3-Band Set

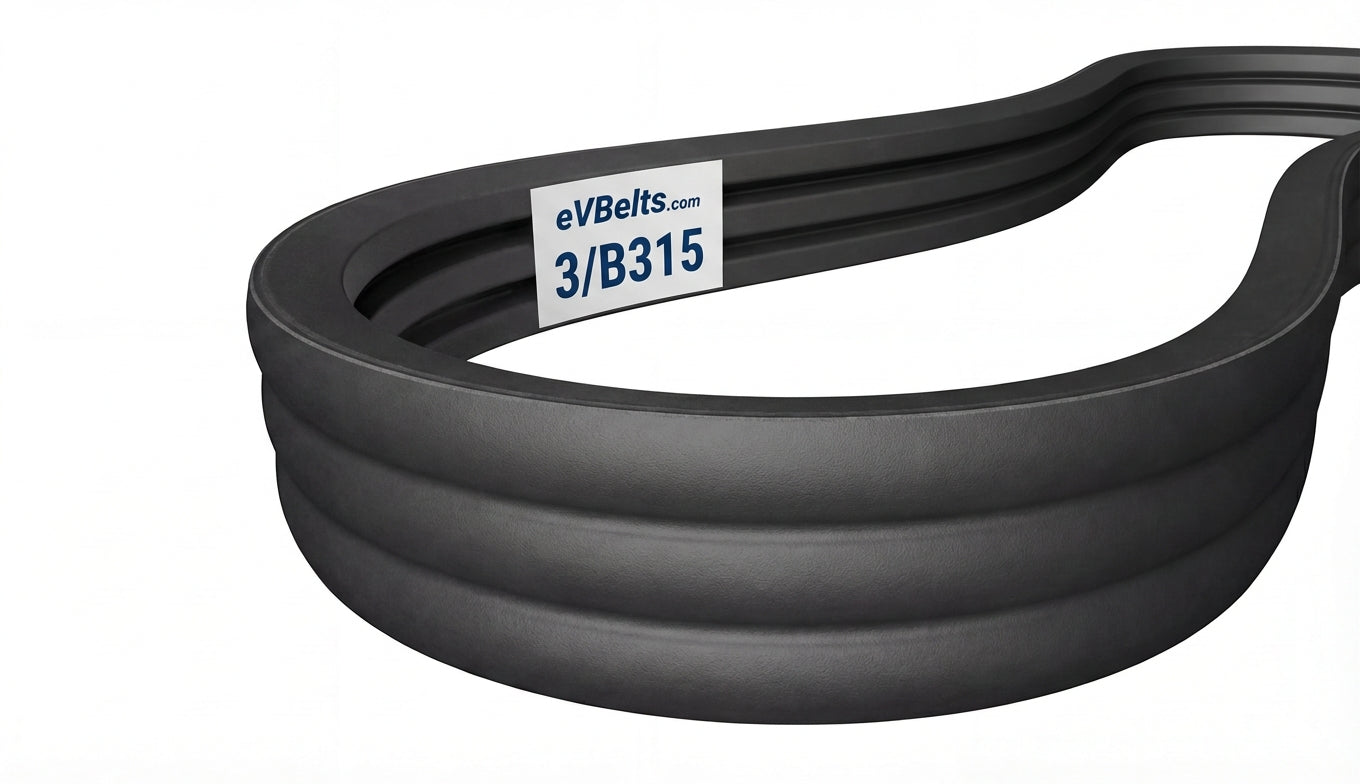

The 3/B315 is a factory-joined 3-band B banded belt assembly measuring 2.028" wide x 316.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215016

$141.68

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	3/B315
Top Width	2.028 in / 51.51 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	315.0 in / 8001.0 mm
Outside Length	316.8 in / 8046.7 mm
Effective Length	316.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	3
