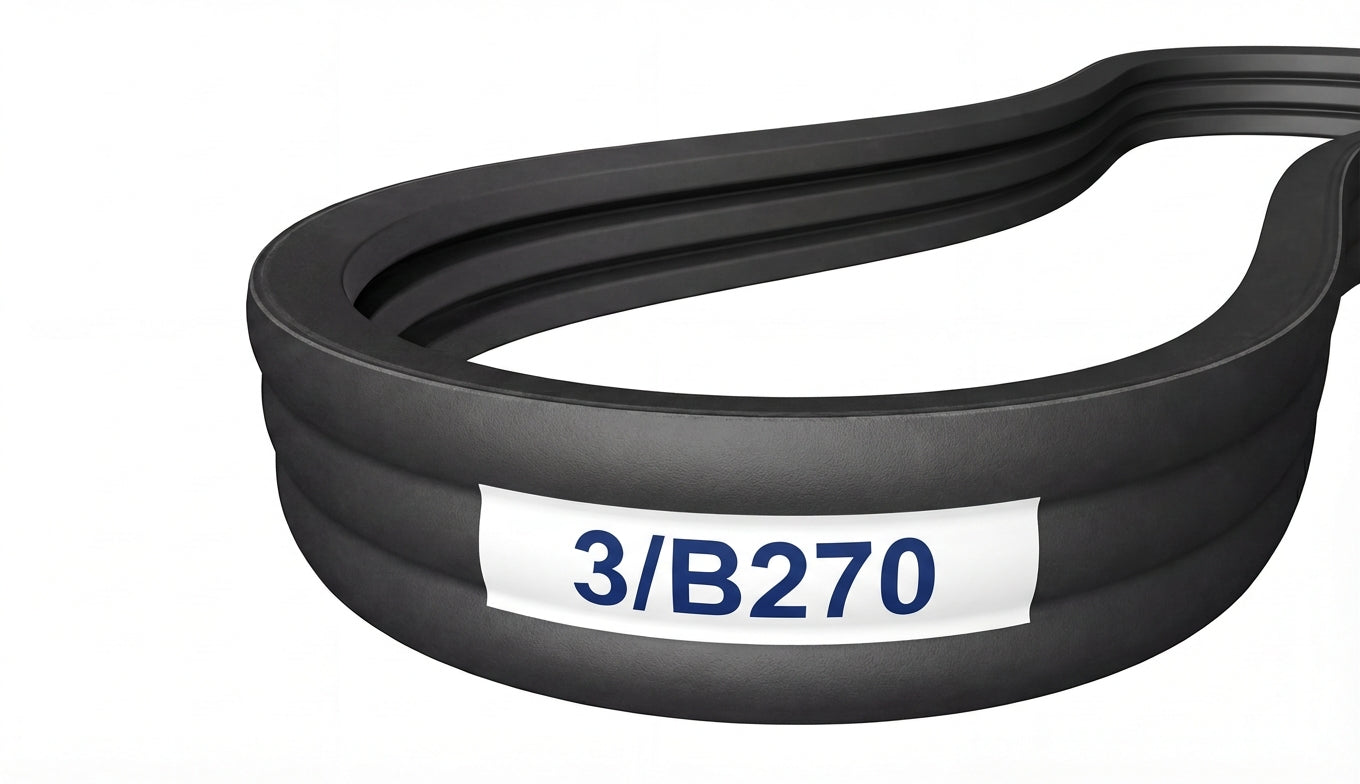

3/B270

Top Width: 2.028" (51.51mm)
Outside Length: 271.8" (6903.7mm)
Inside Length: 270" (6858mm)
Min Pulley Diameter: 5.4"
Configuration: 3-Band Set

The 3/B270 is a factory-joined 3-band B banded belt assembly measuring 2.028" wide x 271.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215014

$124.25

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	3/B270
Top Width	2.028 in / 51.51 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	270.0 in / 6858.0 mm
Outside Length	271.8 in / 6903.7 mm
Effective Length	271.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	3
