2/B77
2/B77
/
/

2/B77

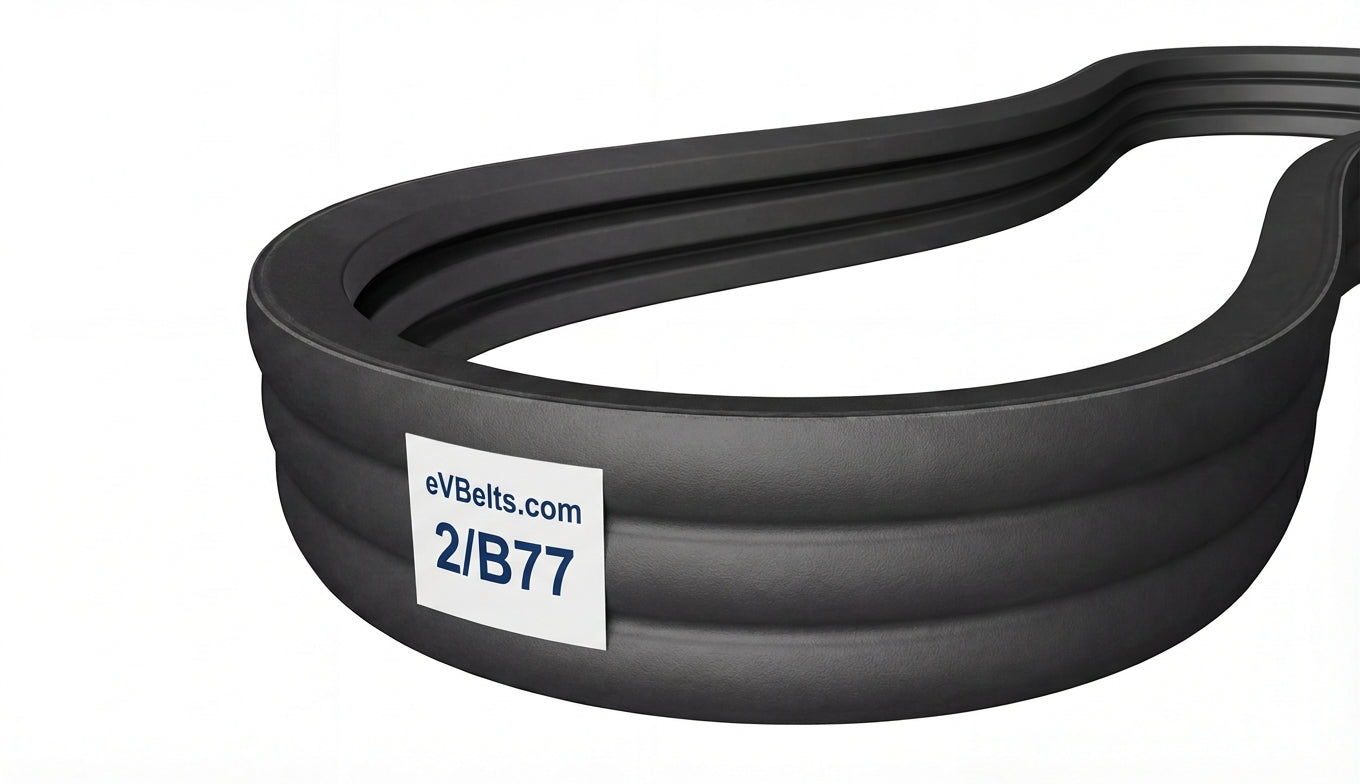

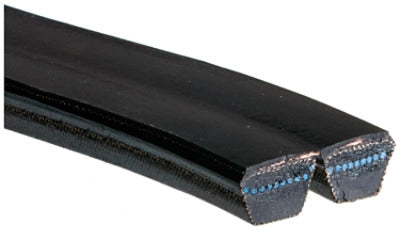

The 2/B77 is a factory-joined 2-band B banded belt assembly measuring 1.342" wide x 78.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214854

$20.40

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications
Part Number 2/B77
Top Width 1.342 in / 34.09 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 77.0 in / 1955.8 mm
Outside Length 78.8 in / 2001.5 mm
Effective Length 78.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 2
