2/B270

Top Width: 1.342" (34.09mm)
Outside Length: 271.8" (6903.7mm)
Inside Length: 270" (6858mm)
Min Pulley Diameter: 5.4"
Configuration: 2-Band Set

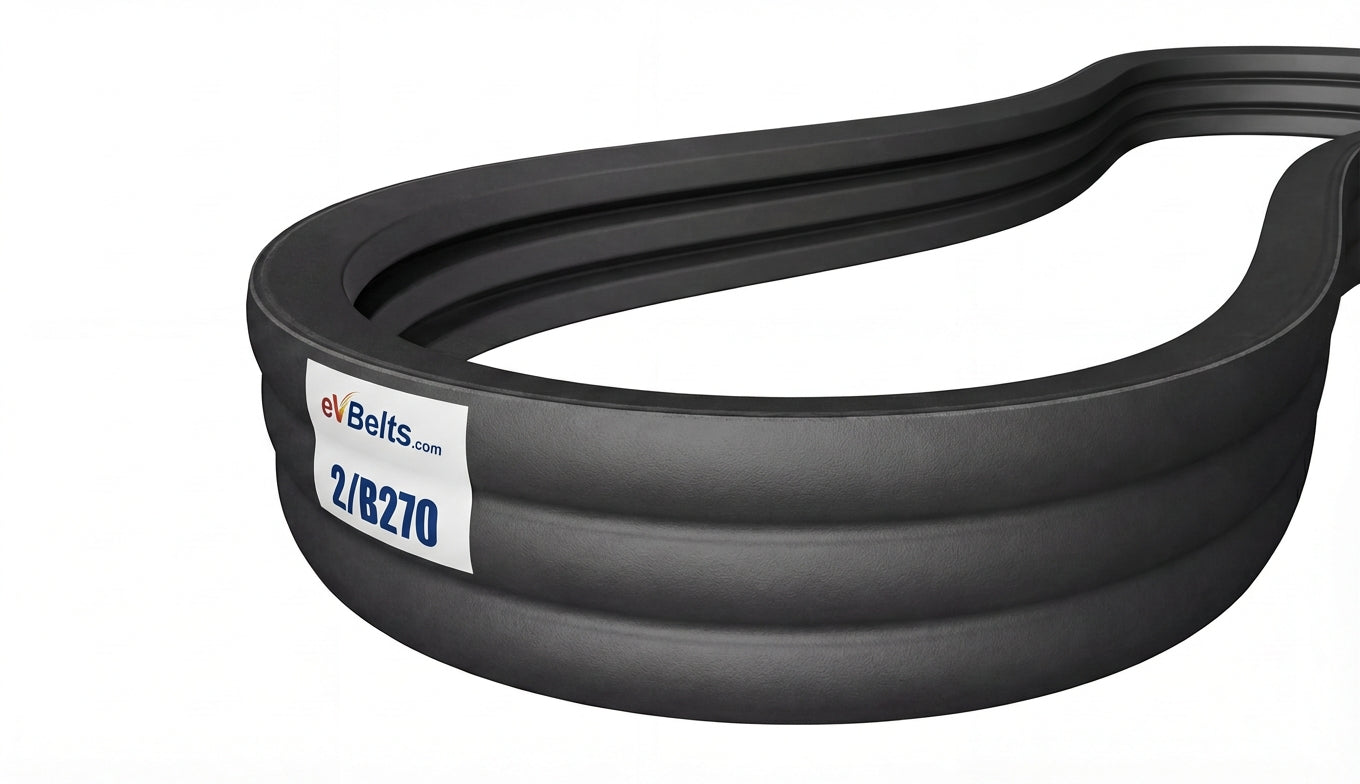

The 2/B270 is a factory-joined 2-band B banded belt assembly measuring 1.342" wide x 271.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214916

$79.42

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	2/B270
Top Width	1.342 in / 34.09 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	270.0 in / 6858.0 mm
Outside Length	271.8 in / 6903.7 mm
Effective Length	271.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	2
