2/B109

Top Width: 1.342" (34.09mm)
Outside Length: 110.8" (2814.3mm)
Inside Length: 109" (2768.6mm)
Min Pulley Diameter: 5.4"
Configuration: 2-Band Set

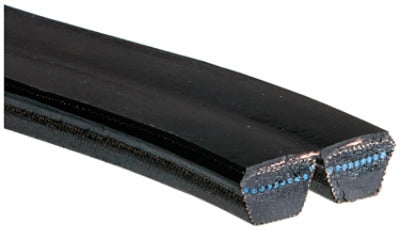

The 2/B109 is a factory-joined 2-band B banded belt assembly measuring 1.342" wide x 110.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214878

$33.93

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	2/B109
Top Width	1.342 in / 34.09 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	109.0 in / 2768.6 mm
Outside Length	110.8 in / 2814.3 mm
Effective Length	110.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	2
