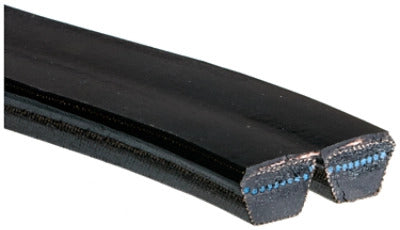

2/B103

Top Width: 1.342" (34.09mm)
Outside Length: 104.8" (2661.9mm)
Inside Length: 103" (2616.2mm)
Min Pulley Diameter: 5.4"
Configuration: 2-Band Set

The 2/B103 is a factory-joined 2-band B banded belt assembly measuring 1.342" wide x 104.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214875

$27.02

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	2/B103
Top Width	1.342 in / 34.09 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	103.0 in / 2616.2 mm
Outside Length	104.8 in / 2661.9 mm
Effective Length	104.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	2
