The 6/CP225 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 227.9" long, featuring oil and heat resistant rubber construction.

6/CP225 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 227.9" (5788.7mm)
• Inside Length: 225" (5715mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP225 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CP240 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 242.9" long, featuring oil and heat resistant rubber construction.

6/CP240 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 242.9" (6169.7mm)
• Inside Length: 240" (6096mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP240 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

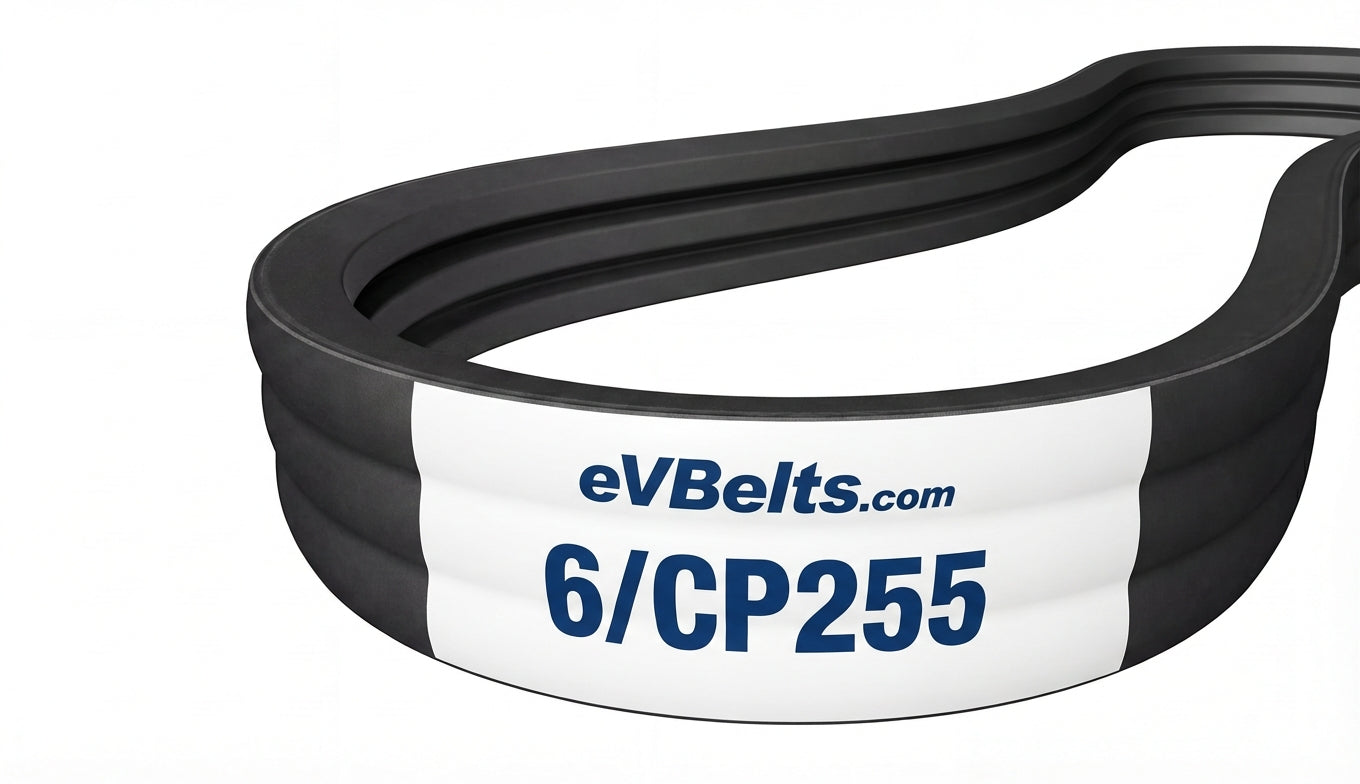

The 6/CP255 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 257.9" long, featuring oil and heat resistant rubber construction.

6/CP255 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 257.9" (6550.7mm)
• Inside Length: 255" (6477mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP255 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CP300 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 302.9" long, featuring oil and heat resistant rubber construction.

6/CP300 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 302.9" (7693.7mm)
• Inside Length: 300" (7620mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP300 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

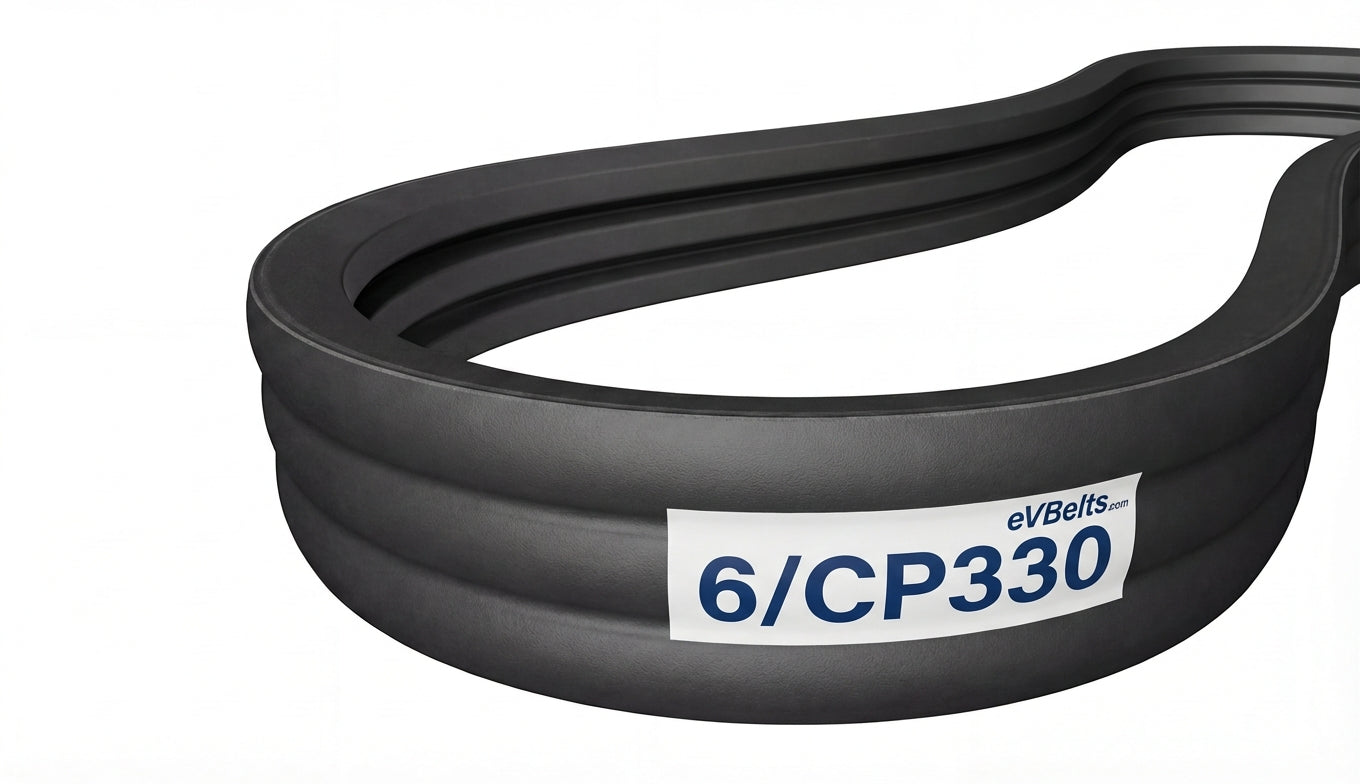

The 6/CP330 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 332.9" long, featuring oil and heat resistant rubber construction.

6/CP330 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 332.9" (8455.7mm)
• Inside Length: 330" (8382mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP330 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CP345 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 347.9" long, featuring oil and heat resistant rubber construction.

6/CP345 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 347.9" (8836.7mm)
• Inside Length: 345" (8763mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP345 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

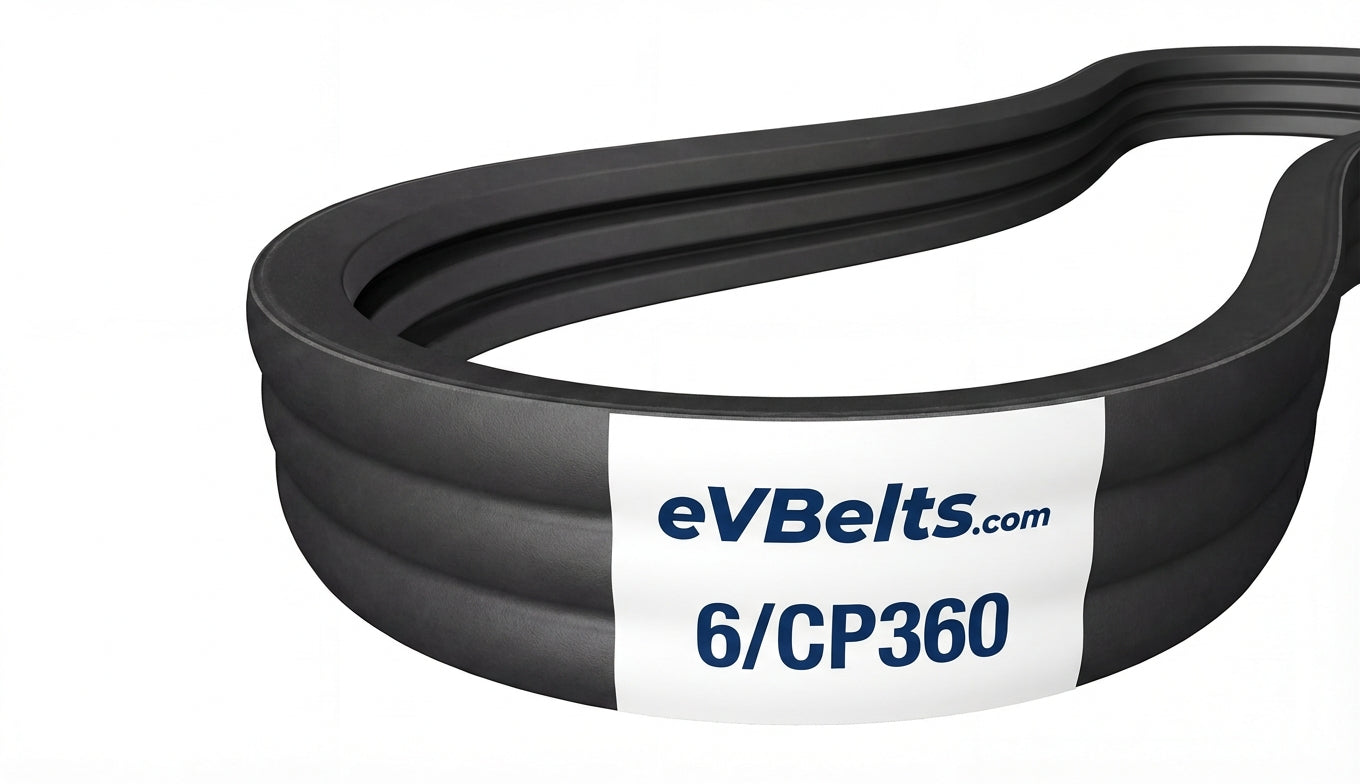

The 6/CP360 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 362.9" long, featuring oil and heat resistant rubber construction.

6/CP360 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 362.9" (9217.7mm)
• Inside Length: 360" (9144mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP360 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CP81 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 83.9" long, featuring oil and heat resistant rubber construction.

6/CP81 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 83.9" (2131.1mm)
• Inside Length: 81" (2057.4mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP81 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CP85 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 87.9" long, featuring oil and heat resistant rubber construction.

6/CP85 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 87.9" (2232.7mm)
• Inside Length: 85" (2159mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP85 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

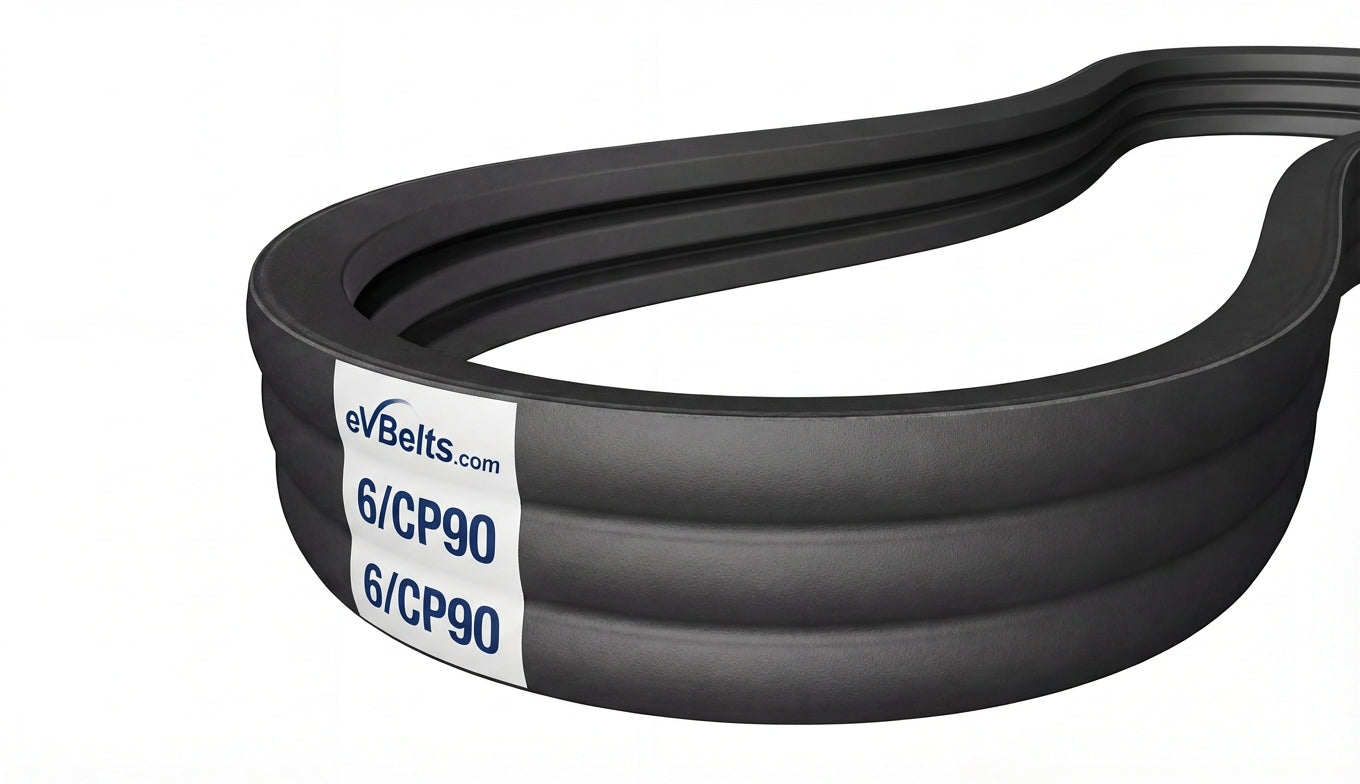

The 6/CP90 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 92.9" long, featuring oil and heat resistant rubber construction.

6/CP90 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 92.9" (2359.7mm)
• Inside Length: 90" (2286mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP90 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CP99 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 101.9" long, featuring oil and heat resistant rubber construction.

6/CP99 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 101.9" (2588.3mm)
• Inside Length: 99" (2514.6mm)
• Min Pulley Diameter: 9"
• Configuration: 6-Band Set

The 6/CP99 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX100 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 102.9" long, offering improved flexibility around smaller pulleys.

6/CX100 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 102.9" (2613.7mm)
• Inside Length: 100" (2540mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX100 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX105 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 107.9" long, offering improved flexibility around smaller pulleys.

6/CX105 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 107.9" (2740.7mm)
• Inside Length: 105" (2667mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX105 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX112 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 114.9" long, offering improved flexibility around smaller pulleys.

6/CX112 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 114.9" (2918.5mm)
• Inside Length: 112" (2844.8mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX112 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX120 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 122.9" long, offering improved flexibility around smaller pulleys.

6/CX120 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 122.9" (3121.7mm)
• Inside Length: 120" (3048mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX120 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX136 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 138.9" long, offering improved flexibility around smaller pulleys.

6/CX136 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 138.9" (3528.1mm)
• Inside Length: 136" (3454.4mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX136 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX144 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 146.9" long, offering improved flexibility around smaller pulleys.

6/CX144 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 146.9" (3731.3mm)
• Inside Length: 144" (3657.6mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX144 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX162 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 164.9" long, offering improved flexibility around smaller pulleys.

6/CX162 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 164.9" (4188.5mm)
• Inside Length: 162" (4114.8mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX162 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX173 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 175.9" long, offering improved flexibility around smaller pulleys.

6/CX173 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 175.9" (4467.9mm)
• Inside Length: 173" (4394.2mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX173 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX75 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 77.9" long, offering improved flexibility around smaller pulleys.

6/CX75 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 77.9" (1978.7mm)
• Inside Length: 75" (1905mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX75 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX81 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 83.9" long, offering improved flexibility around smaller pulleys.

6/CX81 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 83.9" (2131.1mm)
• Inside Length: 81" (2057.4mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX81 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX85 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 87.9" long, offering improved flexibility around smaller pulleys.

6/CX85 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 87.9" (2232.7mm)
• Inside Length: 85" (2159mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX85 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX90 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 92.9" long, offering improved flexibility around smaller pulleys.

6/CX90 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 92.9" (2359.7mm)
• Inside Length: 90" (2286mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX90 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/CX96 is a factory-joined 6-band CX banded belt assembly measuring 5.4" wide x 98.9" long, offering improved flexibility around smaller pulleys.

6/CX96 Specifications

• Top Width: 5.4" (137.16mm)
• Outside Length: 98.9" (2512.1mm)
• Inside Length: 96" (2438.4mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/CX96 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/D144 is a factory-joined 6-band D banded belt assembly measuring 7.65" wide x 147.3" long, featuring oil and heat resistant rubber construction.

6/D144 Specifications

• Top Width: 7.65" (194.31mm)
• Outside Length: 147.3" (3741.4mm)
• Inside Length: 144" (3657.6mm)
• Min Pulley Diameter: 13"
• Configuration: 6-Band Set

The 6/D144 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/D158 is a factory-joined 6-band D banded belt assembly measuring 7.65" wide x 161.3" long, featuring oil and heat resistant rubber construction.

6/D158 Specifications

• Top Width: 7.65" (194.31mm)
• Outside Length: 161.3" (4097mm)
• Inside Length: 158" (4013.2mm)
• Min Pulley Diameter: 13"
• Configuration: 6-Band Set

The 6/D158 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/D173 is a factory-joined 6-band D banded belt assembly measuring 7.65" wide x 176.3" long, featuring oil and heat resistant rubber construction.

6/D173 Specifications

• Top Width: 7.65" (194.31mm)
• Outside Length: 176.3" (4478mm)
• Inside Length: 173" (4394.2mm)
• Min Pulley Diameter: 13"
• Configuration: 6-Band Set

The 6/D173 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/D180 is a factory-joined 6-band D banded belt assembly measuring 7.65" wide x 183.3" long, featuring oil and heat resistant rubber construction.

6/D180 Specifications

• Top Width: 7.65" (194.31mm)
• Outside Length: 183.3" (4655.8mm)
• Inside Length: 180" (4572mm)
• Min Pulley Diameter: 13"
• Configuration: 6-Band Set

The 6/D180 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/D195 is a factory-joined 6-band D banded belt assembly measuring 7.65" wide x 198.3" long, featuring oil and heat resistant rubber construction.

6/D195 Specifications

• Top Width: 7.65" (194.31mm)
• Outside Length: 198.3" (5036.8mm)
• Inside Length: 195" (4953mm)
• Min Pulley Diameter: 13"
• Configuration: 6-Band Set

The 6/D195 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/D210 is a factory-joined 6-band D banded belt assembly measuring 7.65" wide x 213.3" long, featuring oil and heat resistant rubber construction.

6/D210 Specifications

• Top Width: 7.65" (194.31mm)
• Outside Length: 213.3" (5417.8mm)
• Inside Length: 210" (5334mm)
• Min Pulley Diameter: 13"
• Configuration: 6-Band Set

The 6/D210 banded belt assembly ensures synchronized operation and even load distribution across all grooves.
