The 6/5VXP750 is a factory-joined 6-band 5VX banded belt assembly measuring 3.9" wide x 75.6" long, offering improved flexibility around smaller pulleys.

6/5VXP750 Specifications

• Top Width: 3.9" (99.06mm)
• Outside Length: 75.6" (1920.2mm)
• Inside Length: 74" (1879.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/5VXP750 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

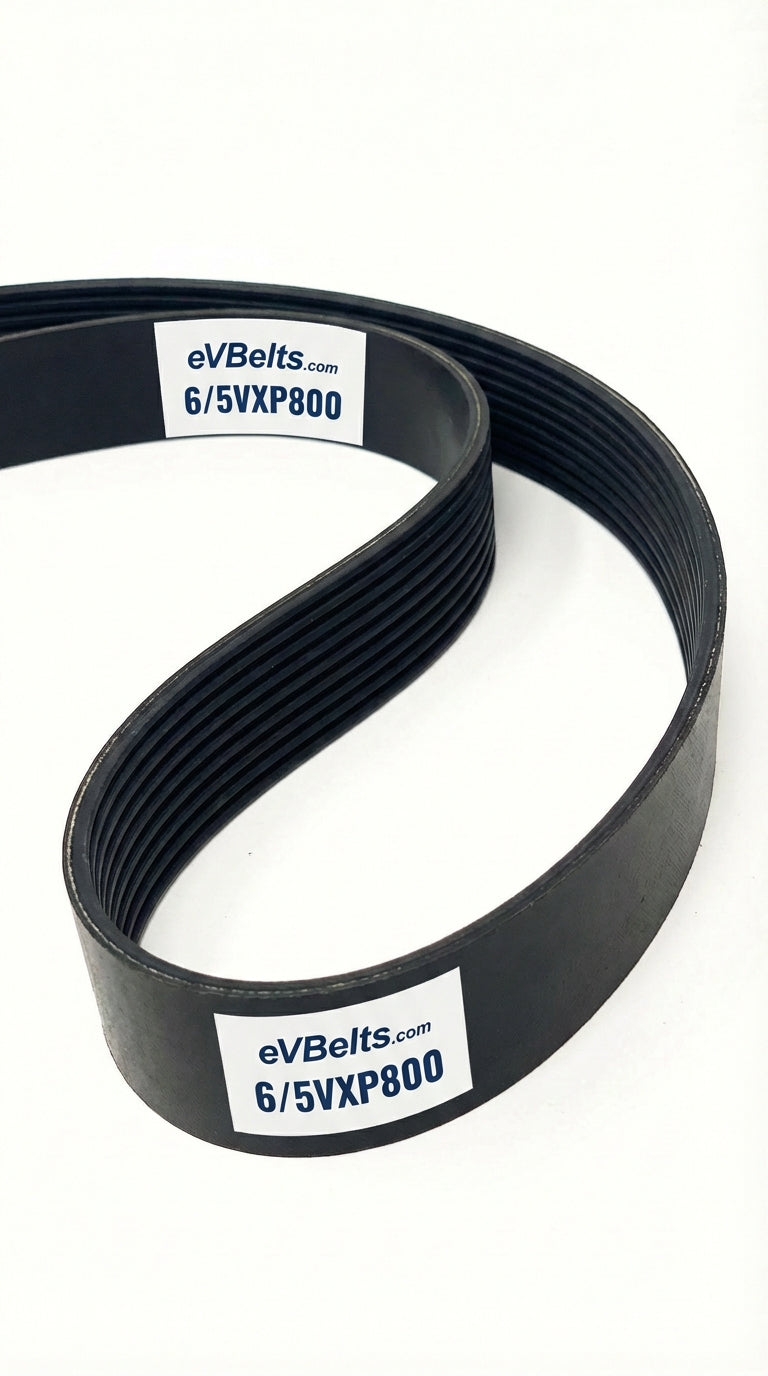

The 6/5VXP800 is a factory-joined 6-band 5VX banded belt assembly measuring 3.9" wide x 80.6" long, offering improved flexibility around smaller pulleys.

6/5VXP800 Specifications

• Top Width: 3.9" (99.06mm)
• Outside Length: 80.6" (2047.2mm)
• Inside Length: 79" (2006.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/5VXP800 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

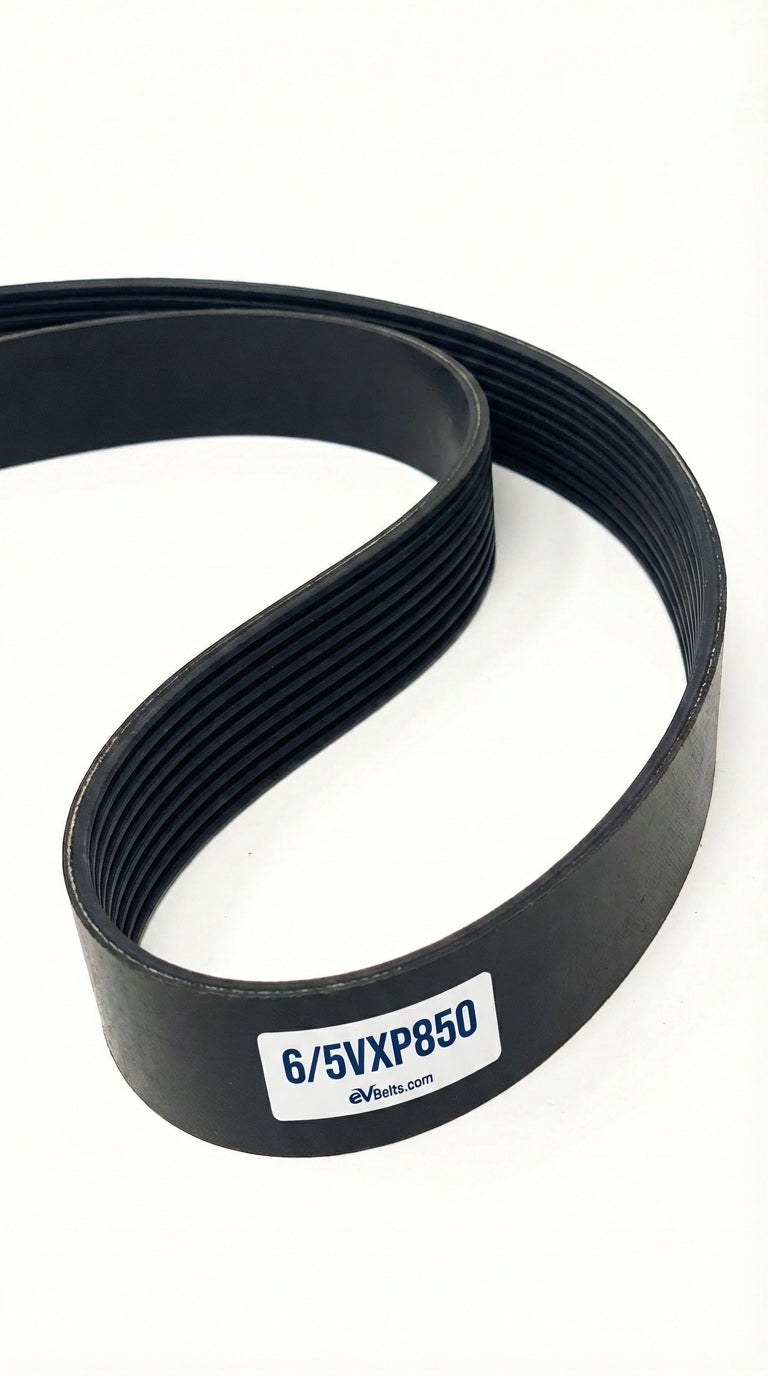

The 6/5VXP850 is a factory-joined 6-band 5VX banded belt assembly measuring 3.9" wide x 85.6" long, offering improved flexibility around smaller pulleys.

6/5VXP850 Specifications

• Top Width: 3.9" (99.06mm)
• Outside Length: 85.6" (2174.2mm)
• Inside Length: 84" (2133.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/5VXP850 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

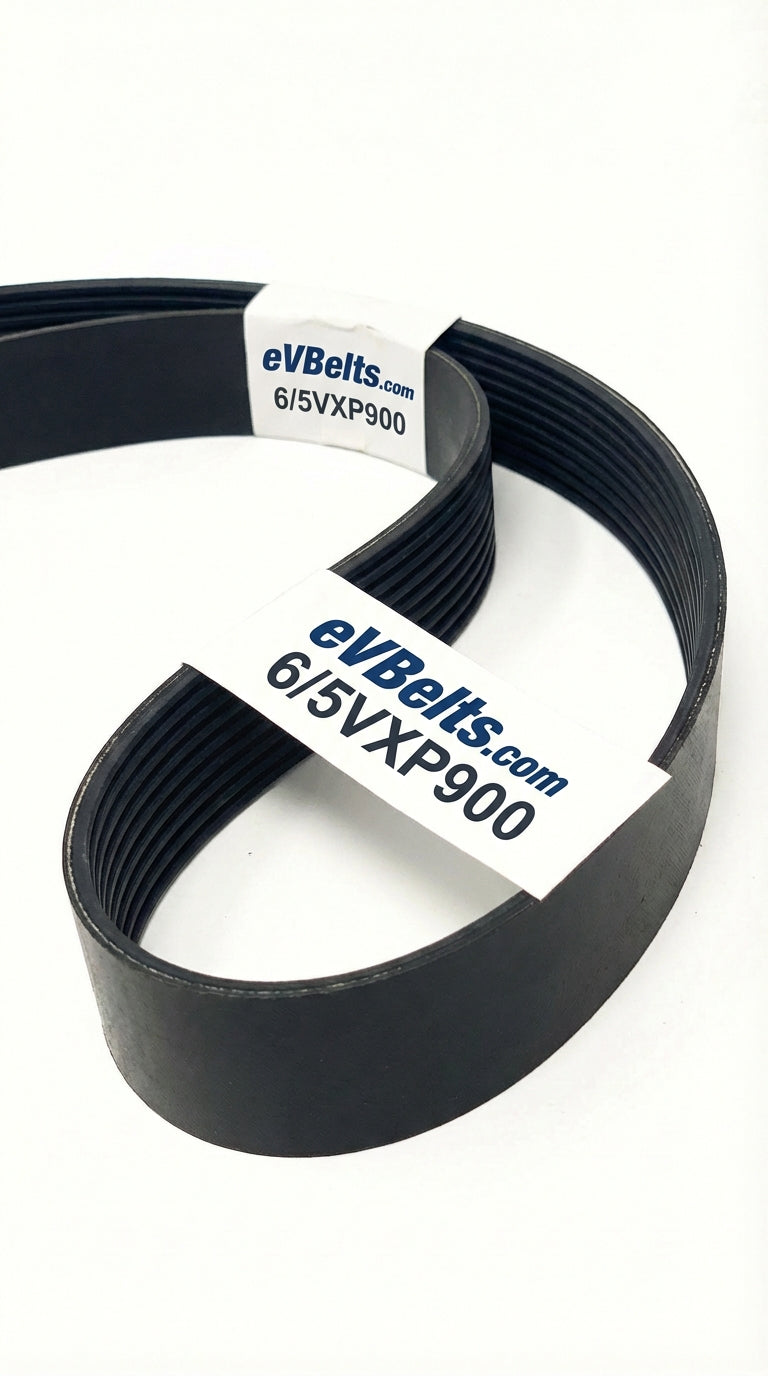

The 6/5VXP900 is a factory-joined 6-band 5VX banded belt assembly measuring 3.9" wide x 90.6" long, offering improved flexibility around smaller pulleys.

6/5VXP900 Specifications

• Top Width: 3.9" (99.06mm)
• Outside Length: 90.6" (2301.2mm)
• Inside Length: 89" (2260.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/5VXP900 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

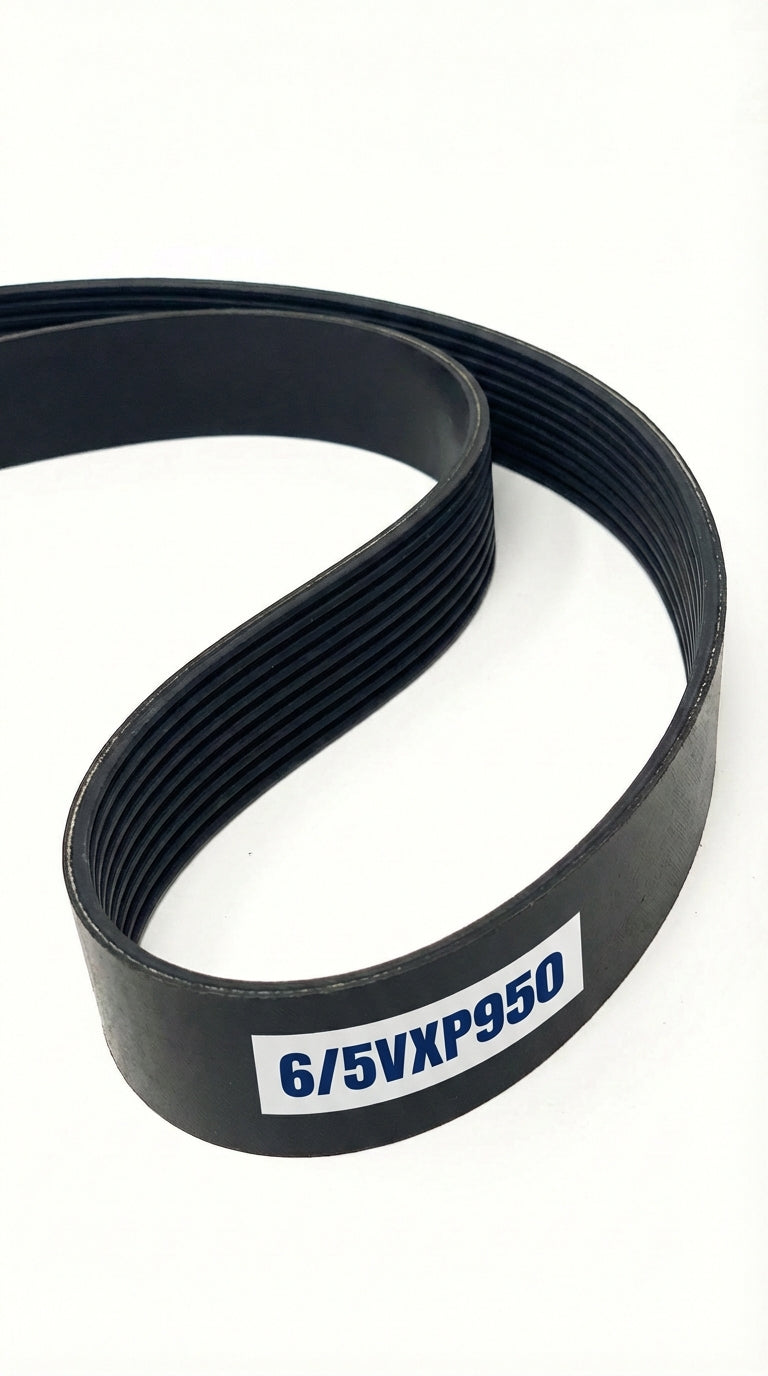

The 6/5VXP950 is a factory-joined 6-band 5VX banded belt assembly measuring 3.9" wide x 95.6" long, offering improved flexibility around smaller pulleys.

6/5VXP950 Specifications

• Top Width: 3.9" (99.06mm)
• Outside Length: 95.6" (2428.2mm)
• Inside Length: 94" (2387.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 6-Band Set

The 6/5VXP950 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1000 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 101" long, featuring oil and heat resistant rubber construction.

6/8V1000 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 101" (2565.4mm)
• Inside Length: 98.5" (2501.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1060 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 107" long, featuring oil and heat resistant rubber construction.

6/8V1060 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 107" (2717.8mm)
• Inside Length: 104.5" (2654.3mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1060 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1120 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 113" long, featuring oil and heat resistant rubber construction.

6/8V1120 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 113" (2870.2mm)
• Inside Length: 110.5" (2806.7mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1120 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1180 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 119" long, featuring oil and heat resistant rubber construction.

6/8V1180 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 119" (3022.6mm)
• Inside Length: 116.5" (2959.1mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1180 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1250 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 126" long, featuring oil and heat resistant rubber construction.

6/8V1250 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 126" (3200.4mm)
• Inside Length: 123.5" (3136.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1250 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1320 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 133" long, featuring oil and heat resistant rubber construction.

6/8V1320 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 133" (3378.2mm)
• Inside Length: 130.5" (3314.7mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1320 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1400 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 141" long, featuring oil and heat resistant rubber construction.

6/8V1400 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 141" (3581.4mm)
• Inside Length: 138.5" (3517.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1400 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1500 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 151" long, featuring oil and heat resistant rubber construction.

6/8V1500 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 151" (3835.4mm)
• Inside Length: 148.5" (3771.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1500 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1600 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 161" long, featuring oil and heat resistant rubber construction.

6/8V1600 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 161" (4089.4mm)
• Inside Length: 158.5" (4025.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1600 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1700 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 171" long, featuring oil and heat resistant rubber construction.

6/8V1700 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 171" (4343.4mm)
• Inside Length: 168.5" (4279.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1700 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1800 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 181" long, featuring oil and heat resistant rubber construction.

6/8V1800 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 181" (4597.4mm)
• Inside Length: 178.5" (4533.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1800 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V1900 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 191" long, featuring oil and heat resistant rubber construction.

6/8V1900 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 191" (4851.4mm)
• Inside Length: 188.5" (4787.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V1900 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V2000 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 201" long, featuring oil and heat resistant rubber construction.

6/8V2000 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 201" (5105.4mm)
• Inside Length: 198.5" (5041.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V2000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V2120 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 213" long, featuring oil and heat resistant rubber construction.

6/8V2120 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 213" (5410.2mm)
• Inside Length: 210.5" (5346.7mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V2120 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V2240 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 225" long, featuring oil and heat resistant rubber construction.

6/8V2240 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 225" (5715mm)
• Inside Length: 222.5" (5651.5mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V2240 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V2360 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 237" long, featuring oil and heat resistant rubber construction.

6/8V2360 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 237" (6019.8mm)
• Inside Length: 234.5" (5956.3mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V2360 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V2500 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 251" long, featuring oil and heat resistant rubber construction.

6/8V2500 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 251" (6375.4mm)
• Inside Length: 248.5" (6311.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V2500 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V2650 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 266" long, featuring oil and heat resistant rubber construction.

6/8V2650 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 266" (6756.4mm)
• Inside Length: 263.5" (6692.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V2650 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V2800 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 281" long, featuring oil and heat resistant rubber construction.

6/8V2800 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 281" (7137.4mm)
• Inside Length: 278.5" (7073.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V2800 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V3000 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 301" long, featuring oil and heat resistant rubber construction.

6/8V3000 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 301" (7645.4mm)
• Inside Length: 298.5" (7581.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V3000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V3150 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 316" long, featuring oil and heat resistant rubber construction.

6/8V3150 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 316" (8026.4mm)
• Inside Length: 313.5" (7962.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V3150 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V3350 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 336" long, featuring oil and heat resistant rubber construction.

6/8V3350 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 336" (8534.4mm)
• Inside Length: 333.5" (8470.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V3350 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V3550 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 356" long, featuring oil and heat resistant rubber construction.

6/8V3550 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 356" (9042.4mm)
• Inside Length: 353.5" (8978.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V3550 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V3750 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 376" long, featuring oil and heat resistant rubber construction.

6/8V3750 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 376" (9550.4mm)
• Inside Length: 373.5" (9486.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V3750 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 6/8V4000 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 401" long, featuring oil and heat resistant rubber construction.

6/8V4000 Specifications

• Top Width: 6.15" (156.21mm)
• Outside Length: 401" (10185.4mm)
• Inside Length: 398.5" (10121.9mm)
• Min Pulley Diameter: 12.5"
• Configuration: 6-Band Set

The 6/8V4000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.
