The 5/D158 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 161.3" long, featuring oil and heat resistant rubber construction.

5/D158 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 161.3" (4097mm)
• Inside Length: 158" (4013.2mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D158 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D173 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 176.3" long, featuring oil and heat resistant rubber construction.

5/D173 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 176.3" (4478mm)
• Inside Length: 173" (4394.2mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D173 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D180 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 183.3" long, featuring oil and heat resistant rubber construction.

5/D180 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 183.3" (4655.8mm)
• Inside Length: 180" (4572mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D180 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D195 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 198.3" long, featuring oil and heat resistant rubber construction.

5/D195 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 198.3" (5036.8mm)
• Inside Length: 195" (4953mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D195 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D210 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 213.3" long, featuring oil and heat resistant rubber construction.

5/D210 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 213.3" (5417.8mm)
• Inside Length: 210" (5334mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D210 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D225 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 228.3" long, featuring oil and heat resistant rubber construction.

5/D225 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 228.3" (5798.8mm)
• Inside Length: 225" (5715mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D225 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D240 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 243.3" long, featuring oil and heat resistant rubber construction.

5/D240 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 243.3" (6179.8mm)
• Inside Length: 240" (6096mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D240 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D255 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 258.3" long, featuring oil and heat resistant rubber construction.

5/D255 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 258.3" (6560.8mm)
• Inside Length: 255" (6477mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D255 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D270 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 273.3" long, featuring oil and heat resistant rubber construction.

5/D270 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 273.3" (6941.8mm)
• Inside Length: 270" (6858mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D270 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D285 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 288.3" long, featuring oil and heat resistant rubber construction.

5/D285 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 288.3" (7322.8mm)
• Inside Length: 285" (7239mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D285 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D300 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 303.3" long, featuring oil and heat resistant rubber construction.

5/D300 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 303.3" (7703.8mm)
• Inside Length: 300" (7620mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D300 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D315 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 318.3" long, featuring oil and heat resistant rubber construction.

5/D315 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 318.3" (8084.8mm)
• Inside Length: 315" (8001mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D315 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D330 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 333.3" long, featuring oil and heat resistant rubber construction.

5/D330 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 333.3" (8465.8mm)
• Inside Length: 330" (8382mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D330 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D345 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 348.3" long, featuring oil and heat resistant rubber construction.

5/D345 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 348.3" (8846.8mm)
• Inside Length: 345" (8763mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D345 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D360 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 363.3" long, featuring oil and heat resistant rubber construction.

5/D360 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 363.3" (9227.8mm)
• Inside Length: 360" (9144mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D360 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D390 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 393.3" long, featuring oil and heat resistant rubber construction.

5/D390 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 393.3" (9989.8mm)
• Inside Length: 390" (9906mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D390 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D420 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 423.3" long, featuring oil and heat resistant rubber construction.

5/D420 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 423.3" (10751.8mm)
• Inside Length: 420" (10668mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D420 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D450 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 453.3" long, featuring oil and heat resistant rubber construction.

5/D450 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 453.3" (11513.8mm)
• Inside Length: 450" (11430mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D450 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D480 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 483.3" long, featuring oil and heat resistant rubber construction.

5/D480 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 483.3" (12275.8mm)
• Inside Length: 480" (12192mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D480 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D540 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 543.3" long, featuring oil and heat resistant rubber construction.

5/D540 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 543.3" (13799.8mm)
• Inside Length: 540" (13716mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D540 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D600 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 603.3" long, featuring oil and heat resistant rubber construction.

5/D600 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 603.3" (15323.8mm)
• Inside Length: 600" (15240mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D600 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5/D660 is a factory-joined 5-band D banded belt assembly measuring 6.37" wide x 663.3" long, featuring oil and heat resistant rubber construction.

5/D660 Specifications

• Top Width: 6.37" (161.8mm)
• Outside Length: 663.3" (16847.8mm)
• Inside Length: 660" (16764mm)
• Min Pulley Diameter: 13"
• Configuration: 5-Band Set

The 5/D660 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 5L1000 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 100" long, featuring oil and heat resistant rubber construction.

5L1000 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 100" (2540mm)
• Inside Length: 97" (2463.8mm)
• Min Pulley Diameter: 2.5"

The 5L1000 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

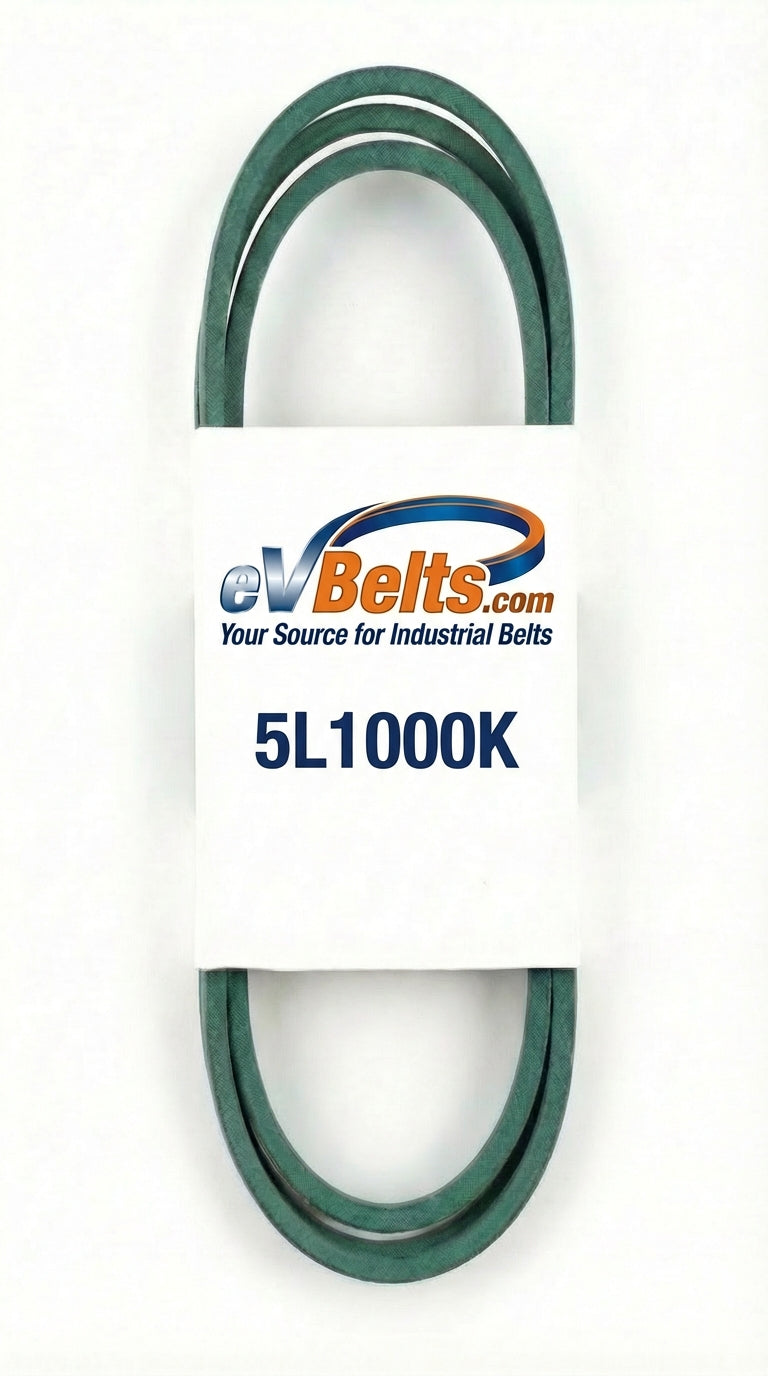

The 5L1000K is a heavy-duty aramid fiber reinforced V-belt measuring 0.656" wide x 100" long, featuring aramid fiber reinforced cords for superior tensile strength.

5L1000K Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 100" (2540mm)
• Inside Length: 97" (2463.8mm)
• Min Pulley Diameter: 2.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 5L1000K

• SEARS ROEBUCK 6517H

The 5L1000K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 5L230 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 23" long, featuring oil and heat resistant rubber construction.

5L230 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 23" (584.2mm)
• Inside Length: 20" (508mm)
• Min Pulley Diameter: 2.5"

OEM Part Numbers Replaced by 5L230

• 7540224
• SEARS ROEBUCK 529H

The 5L230 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

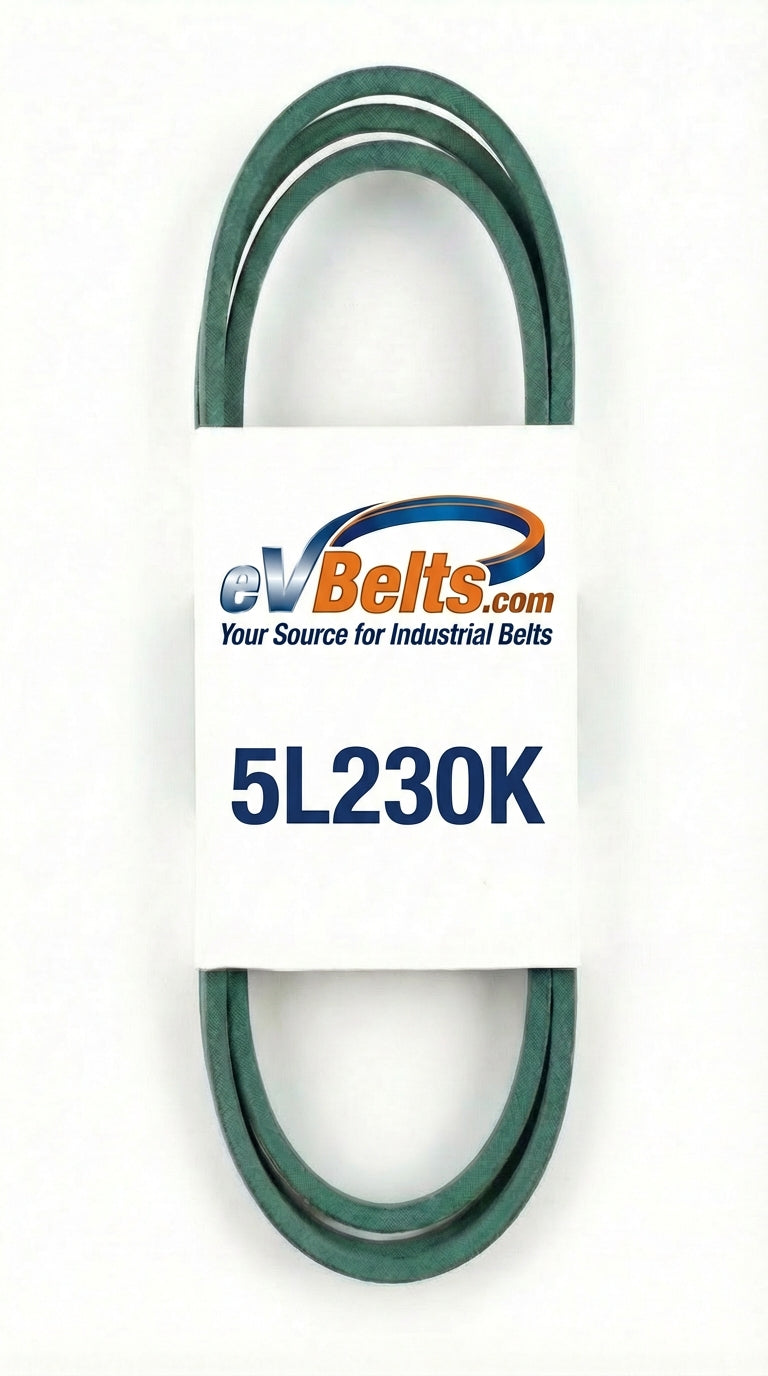

The 5L230K is a heavy-duty aramid fiber reinforced V-belt measuring 0.656" wide x 23" long, featuring aramid fiber reinforced cords for superior tensile strength.

5L230K Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 23" (584.2mm)
• Inside Length: 20" (508mm)
• Min Pulley Diameter: 2.5"
• Reinforcement: Kevlar Aramid Fiber

The 5L230K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 5L240 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 24" long, featuring oil and heat resistant rubber construction.

5L240 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 24" (609.6mm)
• Inside Length: 21" (533.4mm)
• Min Pulley Diameter: 2.5"

OEM Part Numbers Replaced by 5L240

• BOLENS 1108536
• MONTGOMERY WARD 7540187
• UNICO 7540187
• WHITE OUTDOOR PRODUCTS 7540187
• YARD-MAN 7540187

The 5L240 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

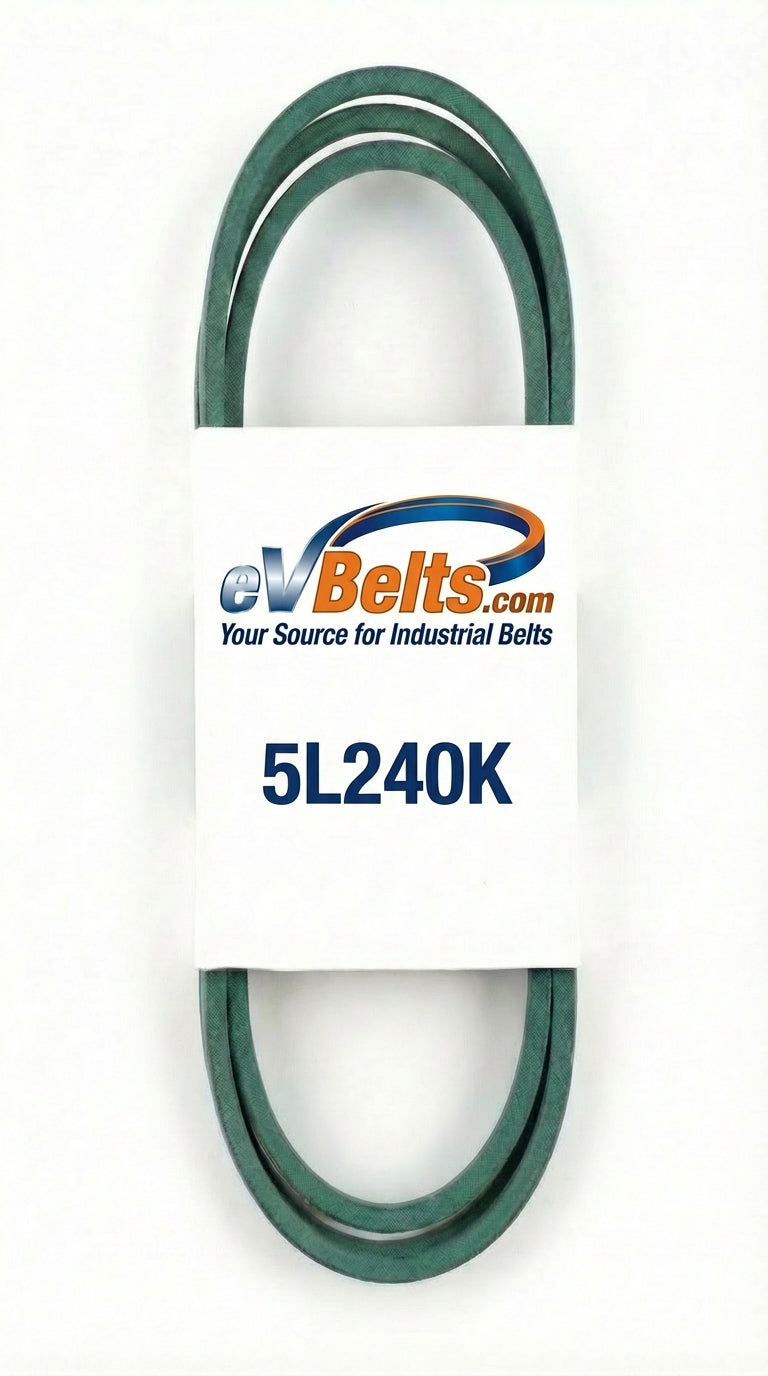

The 5L240K is a heavy-duty aramid fiber reinforced V-belt measuring 0.656" wide x 24" long, featuring aramid fiber reinforced cords for superior tensile strength.

5L240K Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 24" (609.6mm)
• Inside Length: 21" (533.4mm)
• Min Pulley Diameter: 2.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 5L240K

• 108173
• 108173 (BOBCAT TR12B)
• 108173 (BOBCAT TR15B)

The 5L240K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 5L250 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 25" long, featuring oil and heat resistant rubber construction.

5L250 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 25" (635mm)
• Inside Length: 22" (558.8mm)
• Min Pulley Diameter: 2.5"

The 5L250 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L250K is a heavy-duty aramid fiber reinforced V-belt measuring 0.656" wide x 25" long, featuring aramid fiber reinforced cords for superior tensile strength.

5L250K Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 25" (635mm)
• Inside Length: 22" (558.8mm)
• Min Pulley Diameter: 2.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 5L250K

• COAST TO COAST 7540135
• COLUMBIA PRODUCTS 754135
• FIRESTONE 754135
• HARDWARE WHOLESALERS, INC. 7540135
• JACOBSEN 312796
• JACOBSEN 546341
• OUR OWN HARDWARE 7540135
• PENNEYS 7540135
• PROFESSIONAL HARDWARE 754135
• SEARS ROEBUCK SA804
• SENTRY 7540135
• SOUTHLAND RR705
• SPEIGEL 7540135
• TRACTOR SUPPLY 7540135
• UNICO 7540135

Plus 2 additional OEM part numbers.

The 5L250K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.
