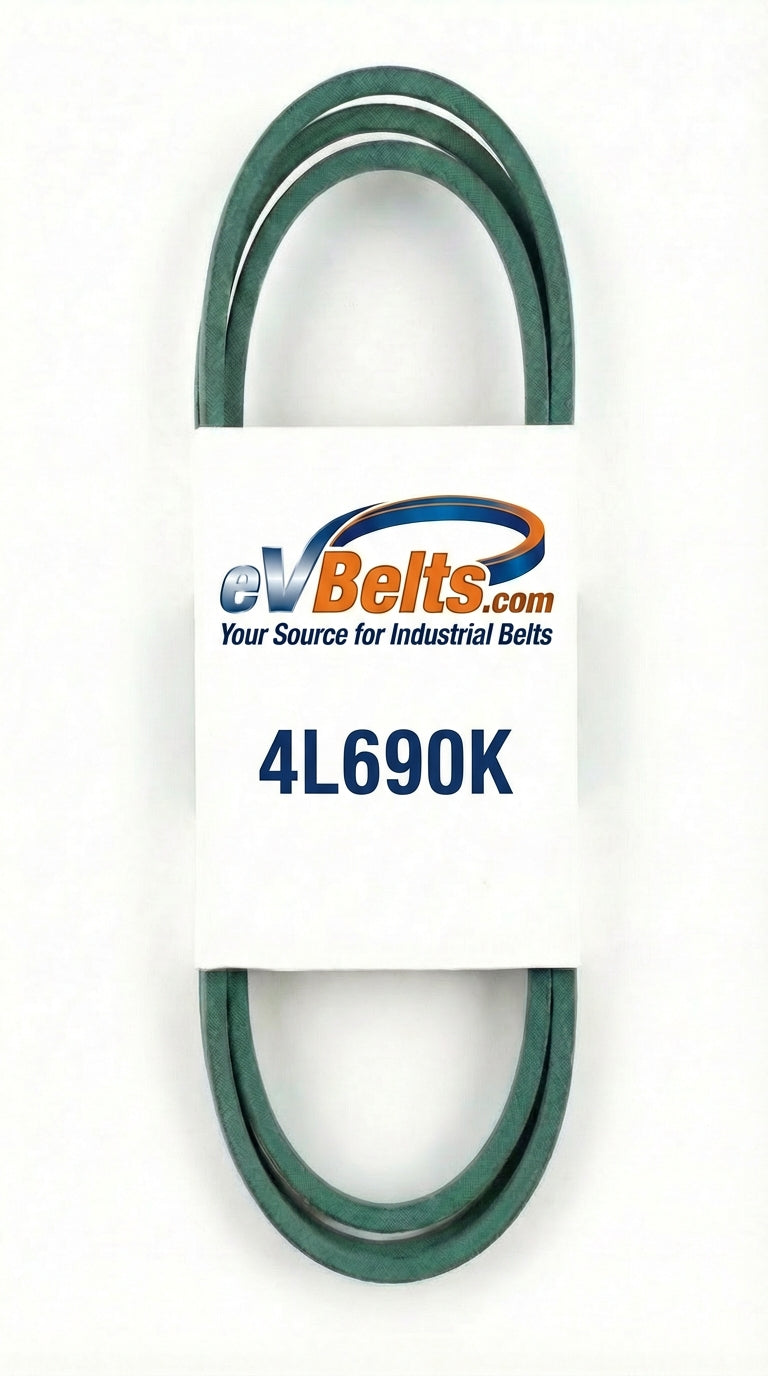

The 4L690K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 69" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L690K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 69" (1752.6mm)
• Inside Length: 67" (1701.8mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L690K

• AGCO 1707740
• FORD 308493
• HAHN ECLIPSE 308493
• INGERSOLL C23810
• INTERNATIONAL 132407C1
• MASSEY FERGUSON 1707740
• NOMA 300747
• NOMA NOMA
• ROPER 100717N
• ROPER 518J
• SEARS ROEBUCK 100717N
• SEARS ROEBUCK 518J
• SIMPLICITY 1707740
• SPRINGFIELD 60F99
• YAZOO 205469

The 4L690K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L700 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 70" long, featuring oil and heat resistant rubber construction.

4L700 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 70" (1778mm)
• Inside Length: 68" (1727.2mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L700

• 1032843M1
• 36987
• 473468R2
• 7543002

The 4L700 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

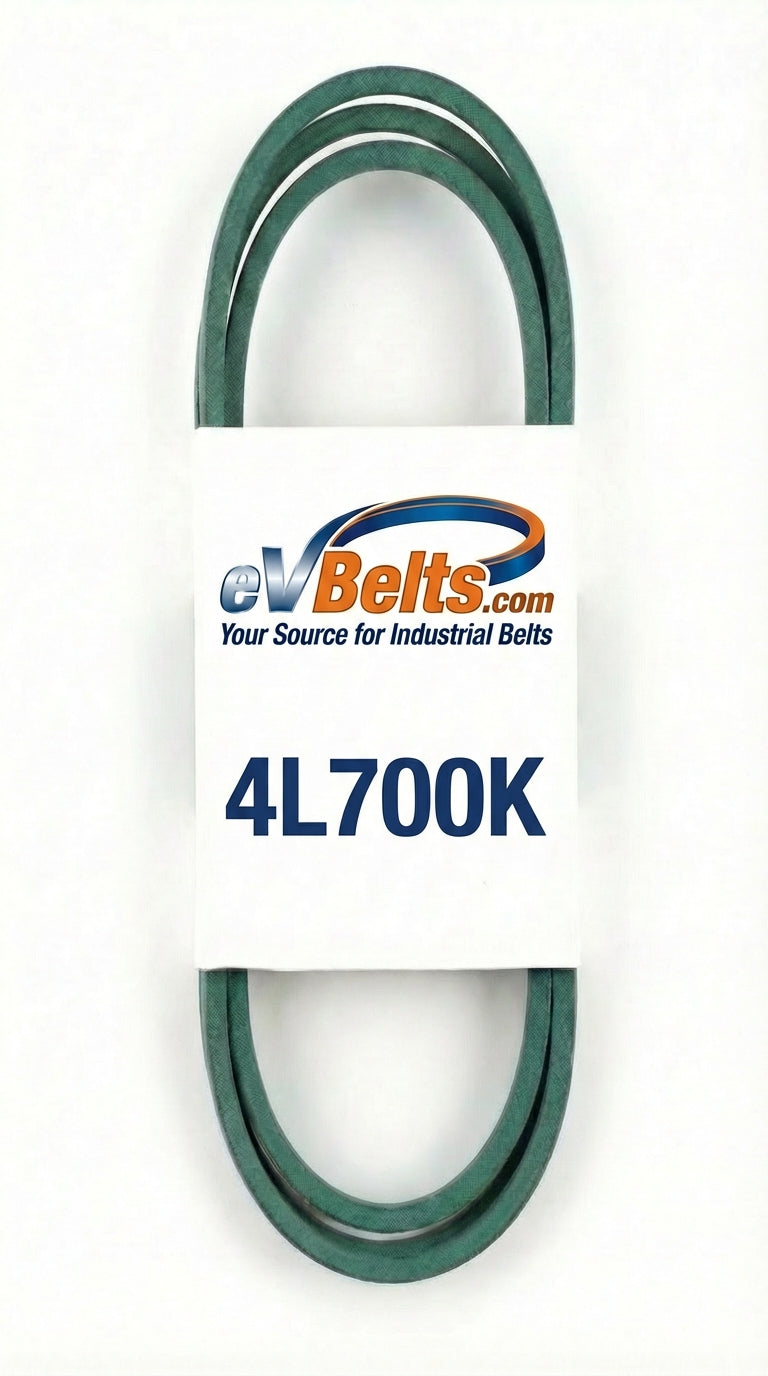

The 4L700K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 70" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L700K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 70" (1778mm)
• Inside Length: 68" (1727.2mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L700K

• ALLIS-CHALMERS 2027134
• WHEEL HORSE 1576
• WHEEL HORSE 9691

The 4L700K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L710 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 71" long, featuring oil and heat resistant rubber construction.

4L710 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 71" (1803.4mm)
• Inside Length: 69" (1752.6mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L710

• 1602157
• 493649R1

The 4L710 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

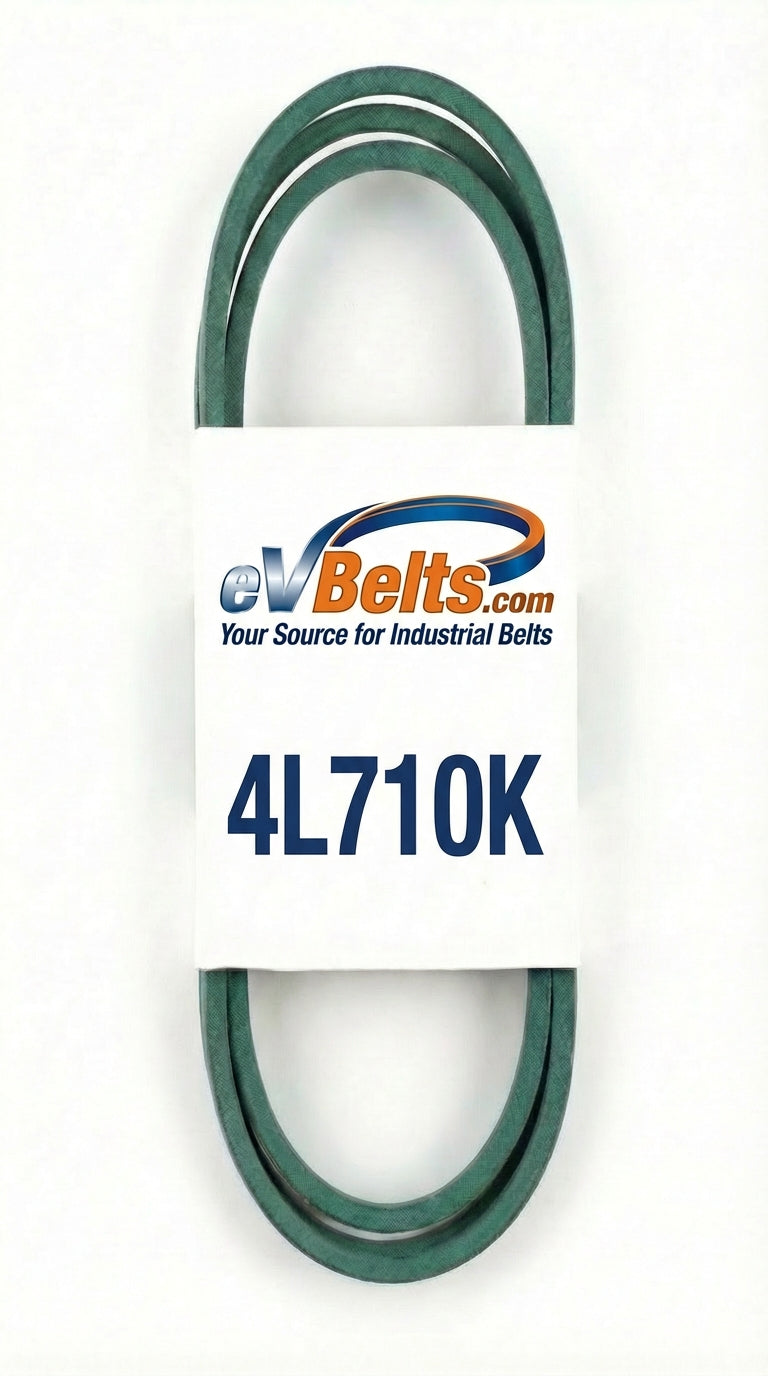

The 4L710K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 71" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L710K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 71" (1803.4mm)
• Inside Length: 69" (1752.6mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L710K

• GRAVELY 36232
• INGERSOLL C23359

The 4L710K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L720 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 72" long, featuring oil and heat resistant rubber construction.

4L720 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 72" (1828.8mm)
• Inside Length: 70" (1778mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L720

• 810074

The 4L720 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

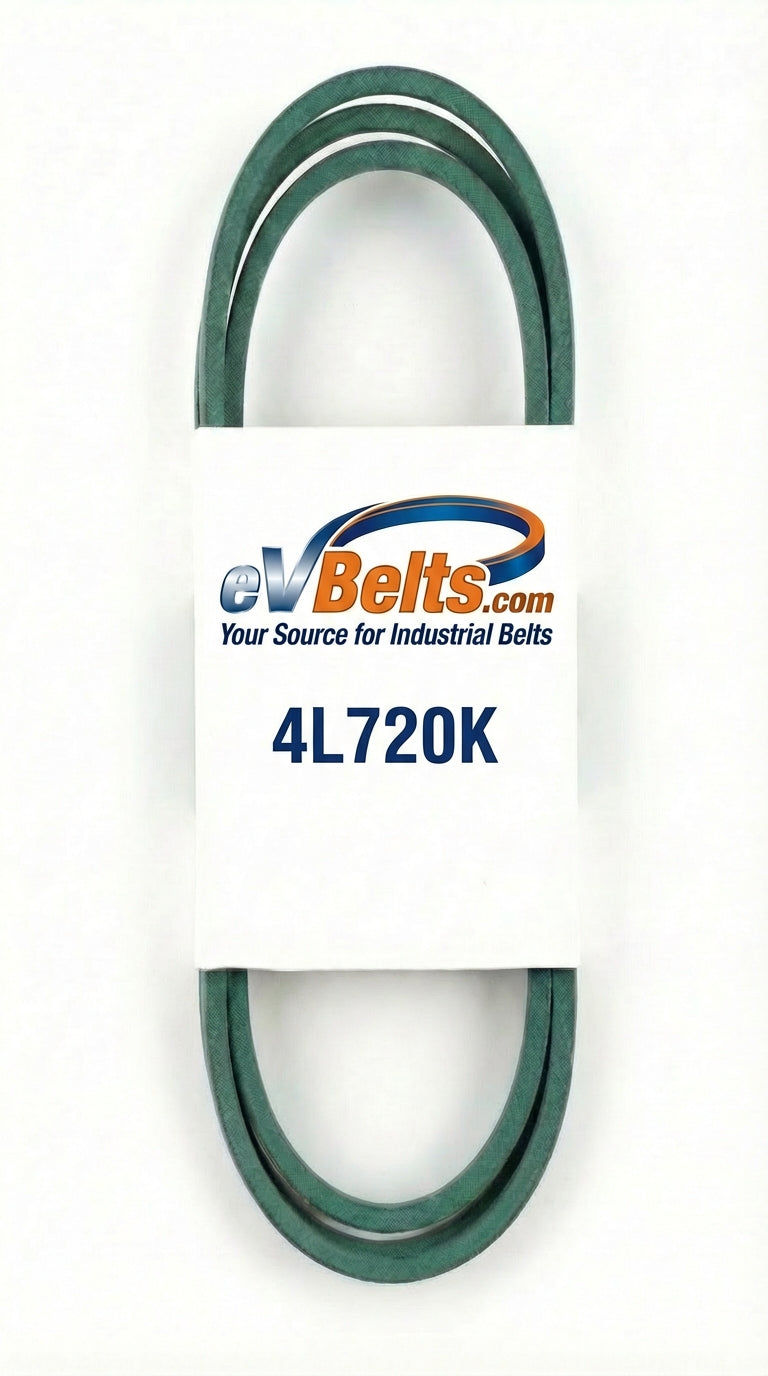

The 4L720K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 72" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L720K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 72" (1828.8mm)
• Inside Length: 70" (1778mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L720K

• ALLIS-CHALMERS 2087648
• CUB CADET 7543002
• ENGINEERING PRODUCTS 810072
• GRAVELY 32322
• HAHN ECLIPSE 308444
• HEALD 203022
• LAWN ROVR LAWN
• POWER KING 810072
• WHEEL HORSE 6146
• WHEEL HORSE 8005

The 4L720K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L730 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 73" long, featuring oil and heat resistant rubber construction.

4L730 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 73" (1854.2mm)
• Inside Length: 71" (1803.4mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L730

• 1025557M1
• 320272214

The 4L730 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

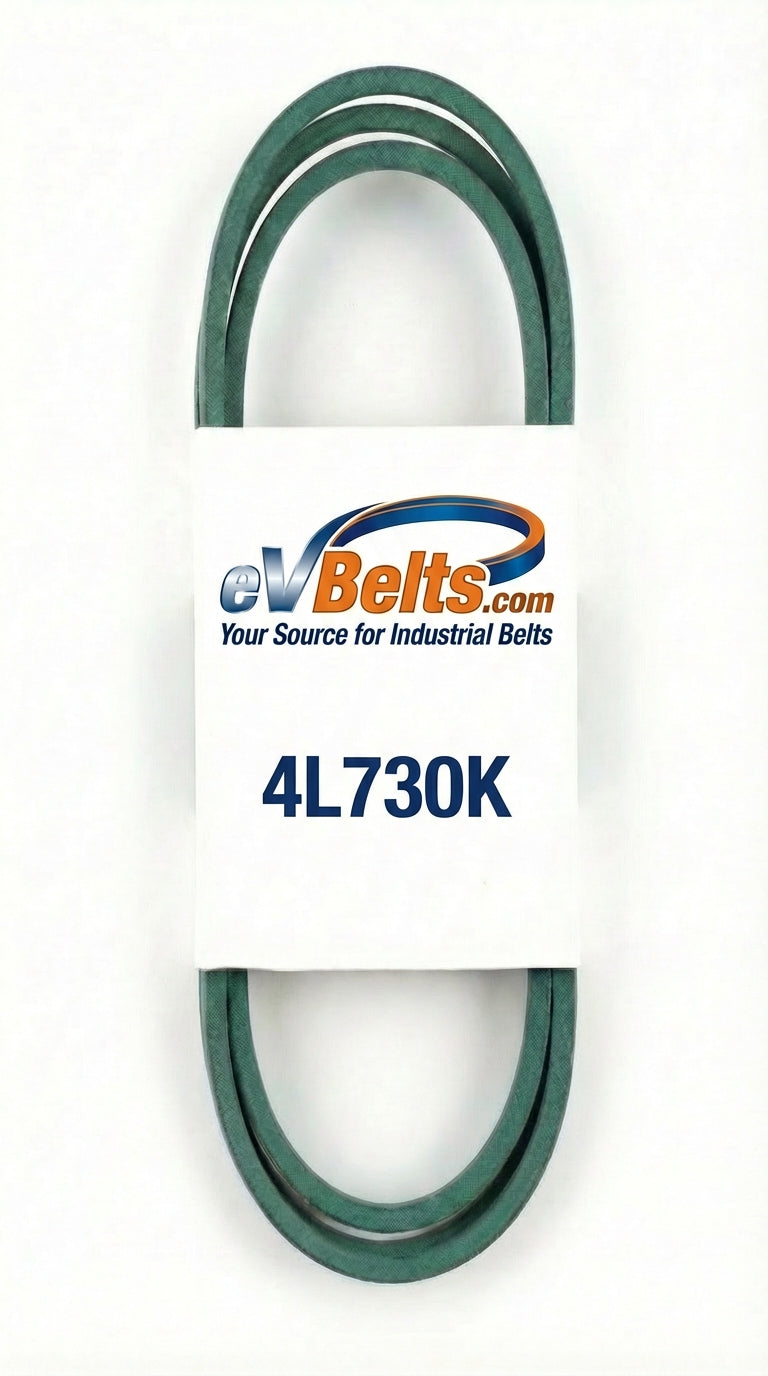

The 4L730K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 73" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L730K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 73" (1854.2mm)
• Inside Length: 71" (1803.4mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

The 4L730K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L740 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 74" long, featuring oil and heat resistant rubber construction.

4L740 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 74" (1879.6mm)
• Inside Length: 72" (1828.8mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L740

• 1607284
• 25129
• C16498
• C22707
• H86061

The 4L740 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

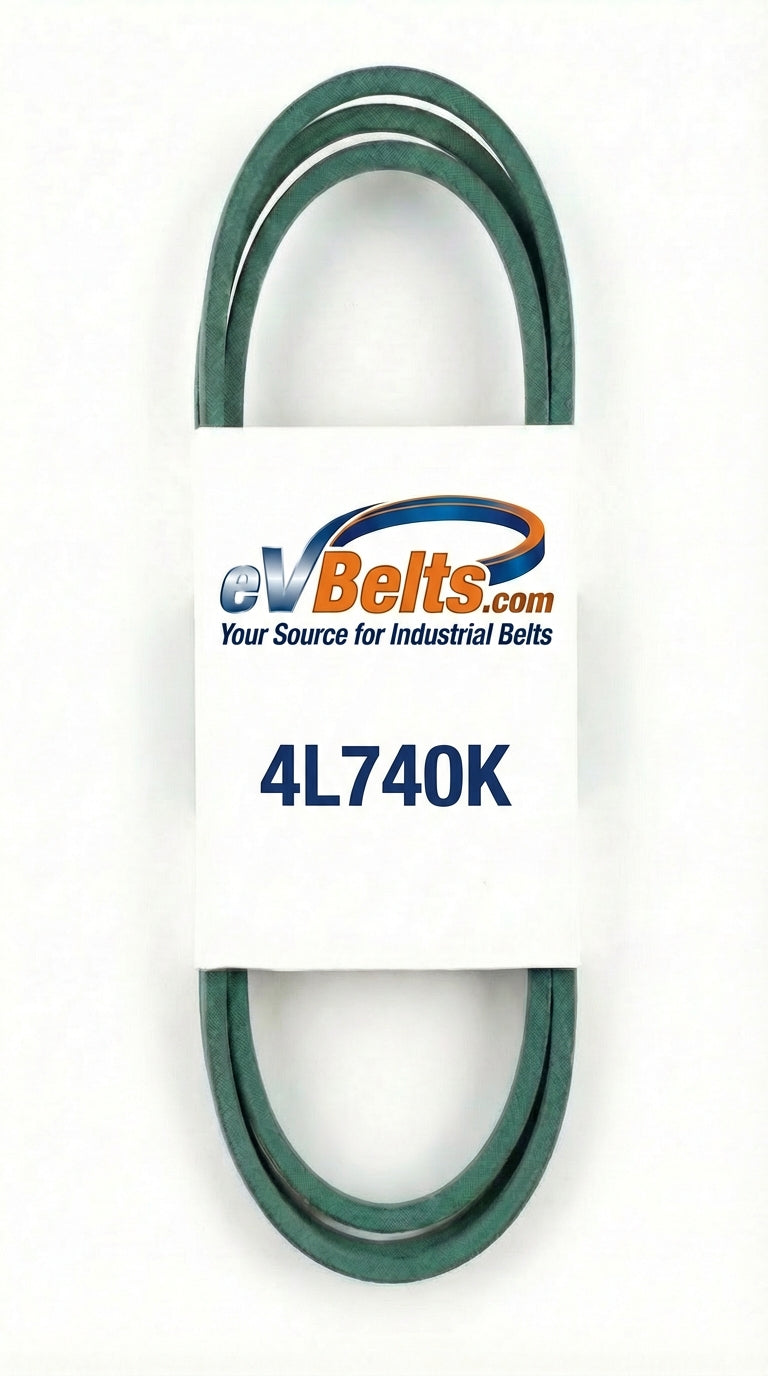

The 4L740K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 74" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L740K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 74" (1879.6mm)
• Inside Length: 72" (1828.8mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L740K

• ALLIS-CHALMERS 2087836
• DIXON 2412
• ENGINEERING PRODUCTS 810074
• FORD 240773
• GILSON 200804
• JOHN DEERE M71135
• MONTGOMERY WARD 200804
• NOMA 320534
• ROPER 8845R
• SEARS ROEBUCK 8845R
• TORO 541380
• WHEEL HORSE 8133

The 4L740K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L750 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 75" long, featuring oil and heat resistant rubber construction.

4L750 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 75" (1905mm)
• Inside Length: 73" (1854.2mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L750

• 10242
• 203024
• M40757

The 4L750 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

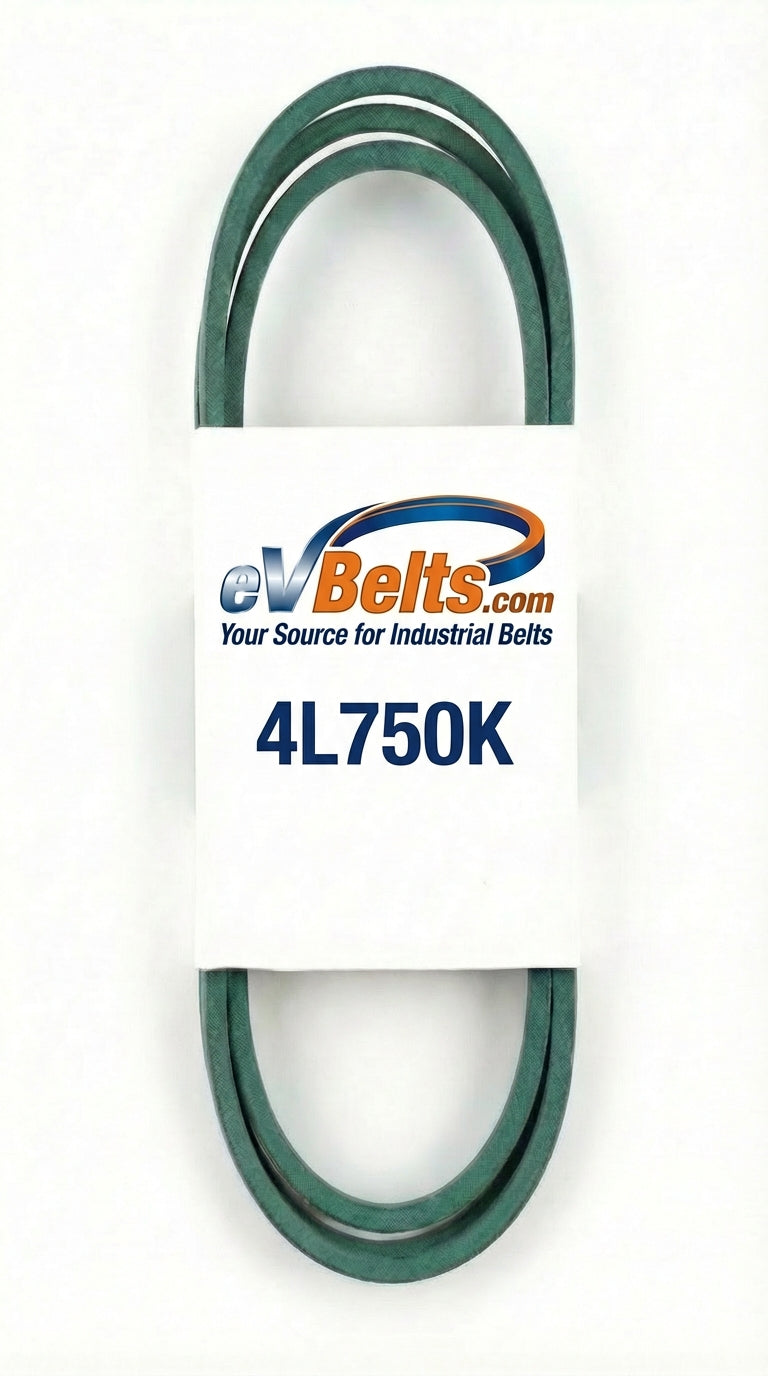

The 4L750K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 75" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L750K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 75" (1905mm)
• Inside Length: 73" (1854.2mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L750K

• SEARS ROEBUCK 76275

The 4L750K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L760 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 76" long, featuring oil and heat resistant rubber construction.

4L760 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 76" (1930.4mm)
• Inside Length: 74" (1879.6mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L760

• 11296
• 200982

The 4L760 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

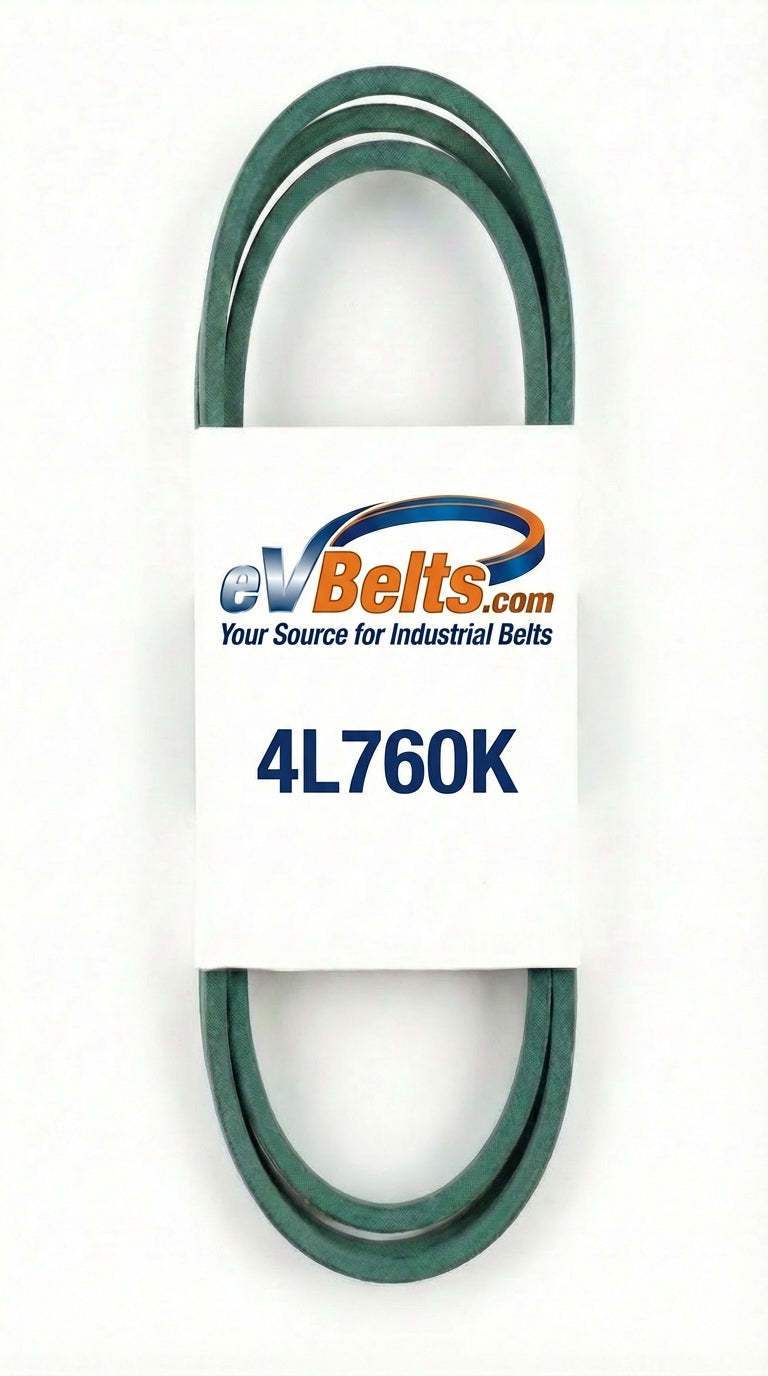

The 4L760K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 76" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L760K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 76" (1930.4mm)
• Inside Length: 74" (1879.6mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L760K

• DEINES 400923
• GENERAL LEISURE 530050019
• HOMELITE 162081
• INGERSOLL C22707
• JACOBSEN 330463
• MAXIM 272217
• MAXIM 320272217
• MIDDLESWORTH 10561
• MURRAY 326932
• MURRAY MURRAY
• NOMA 326932
• SIMPLICITY 162081
• TORO 113141
• TROY BILT 30422
• WHEEL HORSE 111624

Plus 2 additional OEM part numbers.

The 4L760K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L770 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 77" long, featuring oil and heat resistant rubber construction.

4L770 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 77" (1955.8mm)
• Inside Length: 75" (1905mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L770

• WHEEL HORSE 8411

The 4L770 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

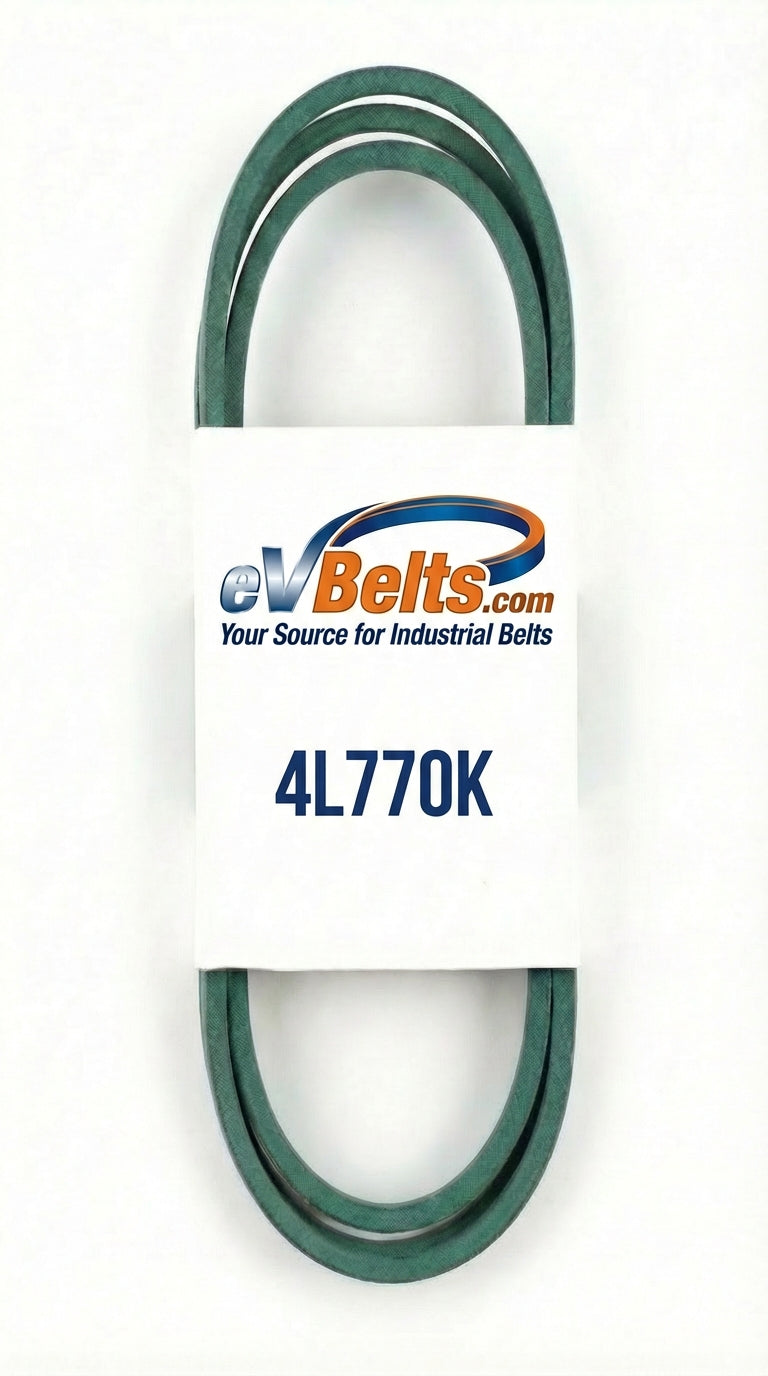

The 4L770K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 77" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L770K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 77" (1955.8mm)
• Inside Length: 75" (1905mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L770K

• BOLENS 1726701
• CUB CADET 95404244A
• JOHN DEERE M40757
• LAWN ROVR LAWN
• MASSEY FERGUSON 170164
• MASSEY FERGUSON 519958M1
• MURRAY 37X34
• SEARS ROEBUCK 37X34
• SNAPPER 62322
• TROY BILT 95404244A
• WHEEL HORSE 10242
• YARD MACHINES 7540338

The 4L770K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L780 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 78" long, featuring oil and heat resistant rubber construction.

4L780 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 78" (1981.2mm)
• Inside Length: 76" (1930.4mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L780

• C14965
• C22708

The 4L780 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

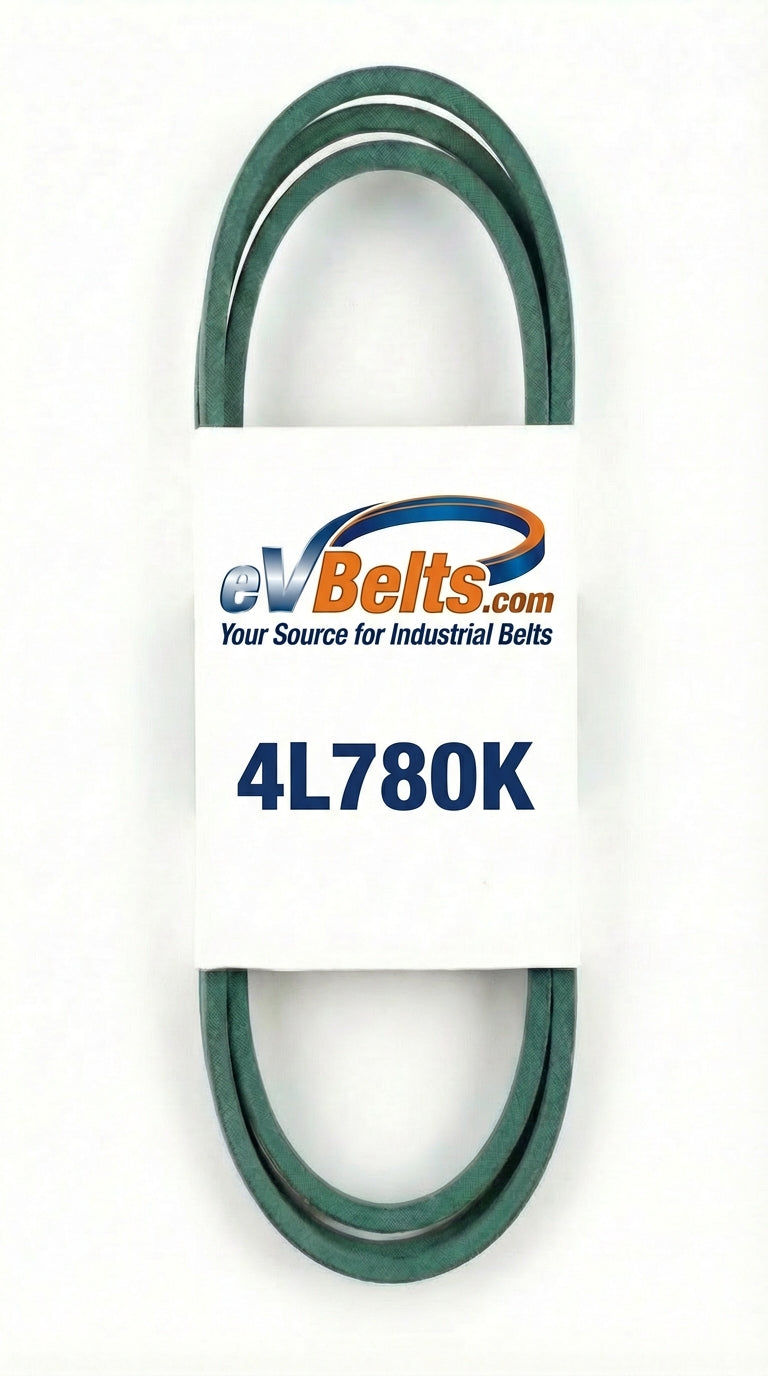

The 4L780K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 78" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L780K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 78" (1981.2mm)
• Inside Length: 76" (1930.4mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L780K

• SEARS ROEBUCK 4798J
• SEARS ROEBUCK 4866J
• WHEEL HORSE 6489

The 4L780K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L790 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 79" long, featuring oil and heat resistant rubber construction.

4L790 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 79" (2006.6mm)
• Inside Length: 77" (1955.8mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L790

• C16499

The 4L790 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L790K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 79" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L790K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 79" (2006.6mm)
• Inside Length: 77" (1955.8mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L790K

• CUB CADET 75404207
• CUB CADET 95404207
• HAHN ECLIPSE 308504
• MTD GOLD 95404207
• ROPER 100670N
• ROPER 106085
• SEARS ROEBUCK 100670N
• TRACTOR SUPPLY 106085
• TROY BILT 95404207

The 4L790K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L800 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 80" long, featuring oil and heat resistant rubber construction.

4L800 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 80" (2032mm)
• Inside Length: 78" (1981.2mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L800

• 1603077
• 328821
• 754186
• A70304

The 4L800 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L800K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 80" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L800K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 80" (2032mm)
• Inside Length: 78" (1981.2mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L800K

• 80009
• 80009 (ESKA Mark 26 (1601))

The 4L800K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L810 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 81" long, featuring oil and heat resistant rubber construction.

4L810 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 81" (2057.4mm)
• Inside Length: 79" (2006.6mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L810

• 328821
• 328892
• 37757
• 7008000247

The 4L810 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

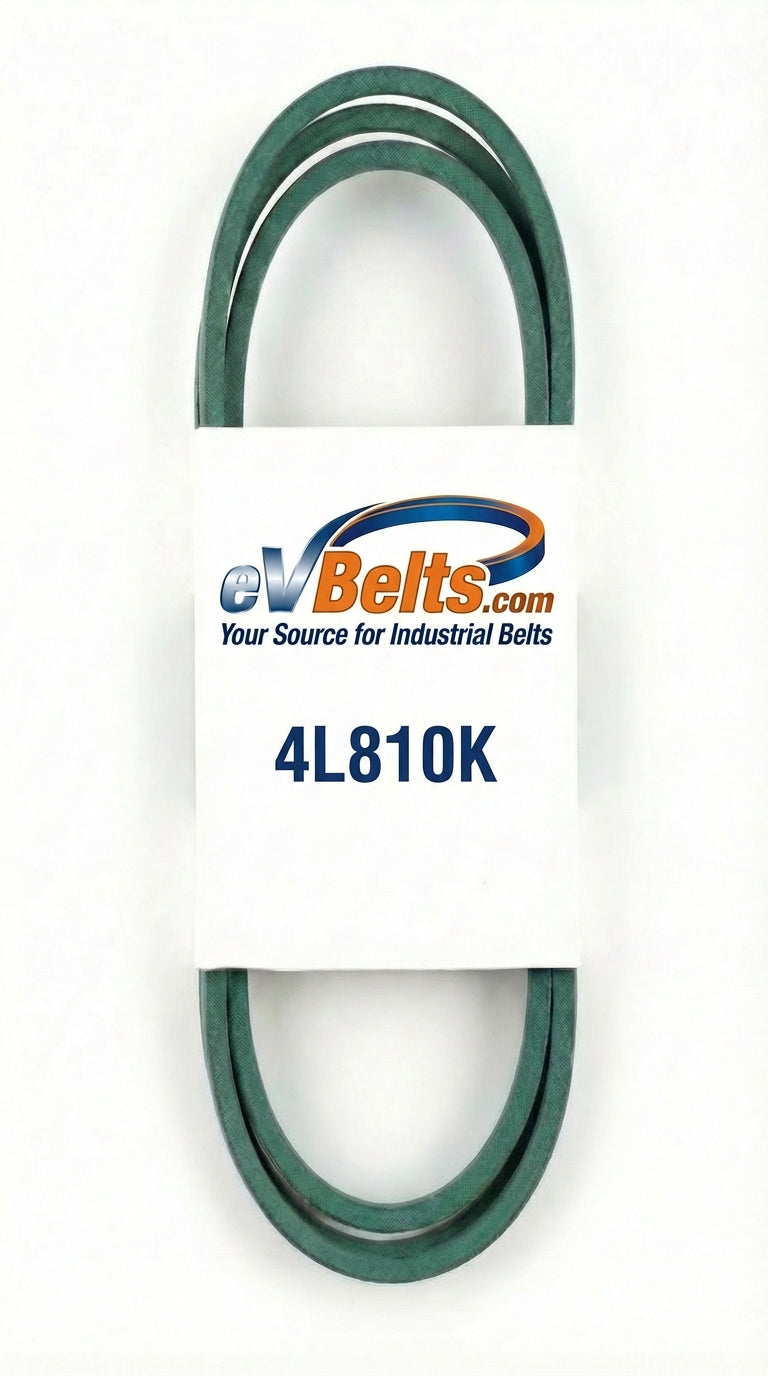

The 4L810K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 81" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L810K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 81" (2057.4mm)
• Inside Length: 79" (2006.6mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

The 4L810K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L820 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 82" long, featuring oil and heat resistant rubber construction.

4L820 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 82" (2082.8mm)
• Inside Length: 80" (2032mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L820

• 245477
• 325074

The 4L820 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L820K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 82" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L820K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 82" (2082.8mm)
• Inside Length: 80" (2032mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L820K

• 328821
• C18634
• CASE, J.I. C11945
• FORD 09JC3152
• LAWN CHIEF 171215
• MURRAY 23347
• MURRAY 37X18
• NOMA 54758
• PENNEYS 23347
• ROPER 126576X
• SEARS ROEBUCK 126576X
• SNAPPER 62465
• TORO 576990

The 4L820K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L830 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 83" long, featuring oil and heat resistant rubber construction.

4L830 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 83" (2108.2mm)
• Inside Length: 81" (2057.4mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L830

• 213676
• 7540236

The 4L830 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

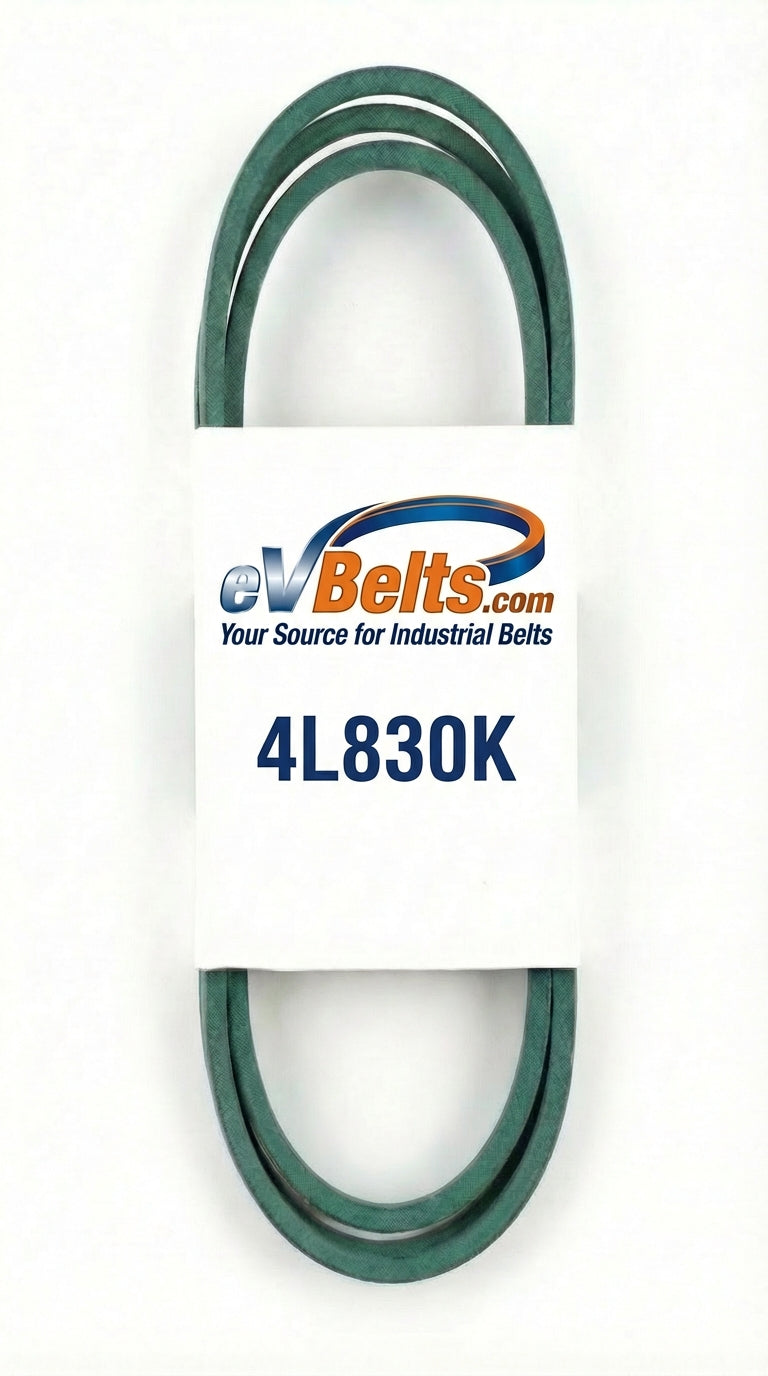

The 4L830K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 83" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L830K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 83" (2108.2mm)
• Inside Length: 81" (2057.4mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L830K

• FORD 84830
• JACOBSEN 328821
• JACOBSEN 328892
• JOHN DEERE M45998
• SEARS ROEBUCK 139573
• SEARS ROEBUCK 1629J
• TORO 114433
• WHEEL HORSE 8911

The 4L830K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L840 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 84" long, featuring oil and heat resistant rubber construction.

4L840 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 84" (2133.6mm)
• Inside Length: 82" (2082.8mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L840

• 209581
• 7543027

The 4L840 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
