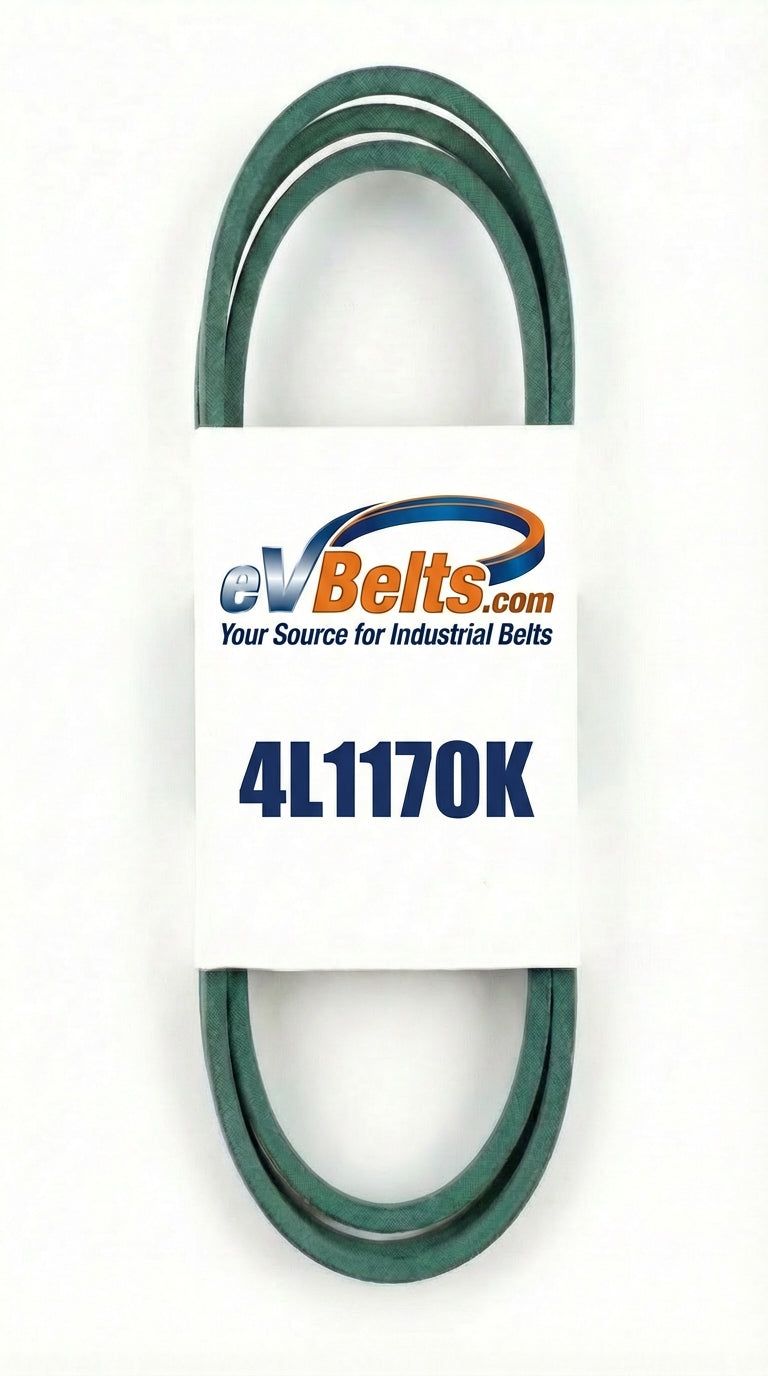

The 4L1170K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 117" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L1170K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 117" (2971.8mm)
• Inside Length: 115" (2921mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L1170K

• GRAVELY 14673P1

The 4L1170K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L150 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 15" long, featuring oil and heat resistant rubber construction.

4L150 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 15" (381mm)
• Inside Length: 13" (330.2mm)
• Min Pulley Diameter: 1.5"

The 4L150 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L160 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 16" long, featuring oil and heat resistant rubber construction.

4L160 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 16" (406.4mm)
• Inside Length: 14" (355.6mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L160

• JACOBSEN 331984

The 4L160 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L170 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 17" long, featuring oil and heat resistant rubber construction.

4L170 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 17" (431.8mm)
• Inside Length: 15" (381mm)
• Min Pulley Diameter: 1.5"

The 4L170 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L170K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 17" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L170K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 17" (431.8mm)
• Inside Length: 15" (381mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

The 4L170K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L180 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 18" long, featuring oil and heat resistant rubber construction.

4L180 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 18" (457.2mm)
• Inside Length: 16" (406.4mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L180

• 4060
• BE115

The 4L180 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

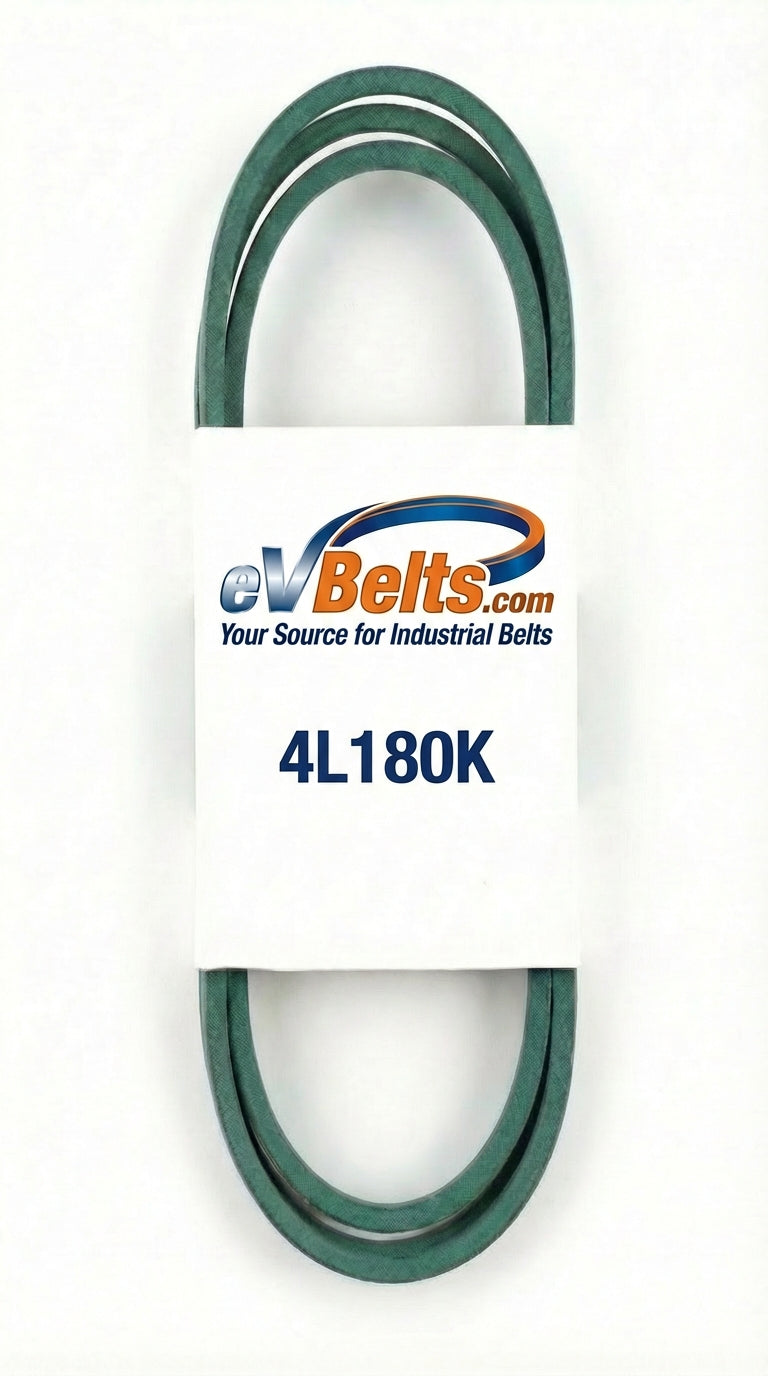

The 4L180K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 18" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L180K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 18" (457.2mm)
• Inside Length: 16" (406.4mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L180K

• 1108453
• 1108453 (BOLENS 438B)
• 1108453 (BOLENS 438B01)
• 1108453 (BOLENS 441B)
• 1108453 (BOLENS 441B01)
• 1108453 (BOLENS 448B01)
• 1108453 (BOLENS 451B01)
• 1108453 (BOLENS 6451)
• 20319
• 313775
• 314804
• 342780
• 7540126
• 7540126 (FIRESTONE 08-03-201-7)
• 7540126 (OUR OWN HARDWARE 151-518)

Plus 4 additional OEM part numbers.

The 4L180K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L188 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 18.8" long, featuring oil and heat resistant rubber construction.

4L188 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 18.8" (477.5mm)
• Inside Length: 16.8" (426.7mm)
• Min Pulley Diameter: 1.5"

The 4L188 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L190 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 19" long, featuring oil and heat resistant rubber construction.

4L190 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 19" (482.6mm)
• Inside Length: 17" (431.8mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L190

• BLUE GRASS 17139
• JOHN DEERE M77675
• KEE 2210

The 4L190 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L190K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 19" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L190K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 19" (482.6mm)
• Inside Length: 17" (431.8mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L190K

• 1108454
• 1108454 (BOLENS 433A)
• 1108454 (BOLENS 433C)
• 1108454 (BOLENS 433C01)
• 1108454 (BOLENS 443C01)
• 1108454 (BOLENS 448B)
• 1108454 (BOLENS 451A)
• 1108454 (BOLENS 6451-02)
• MW3149
• MW3149 (REO Sabre Jet)
• MW3149 (REO Sabre Trim)

The 4L190K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

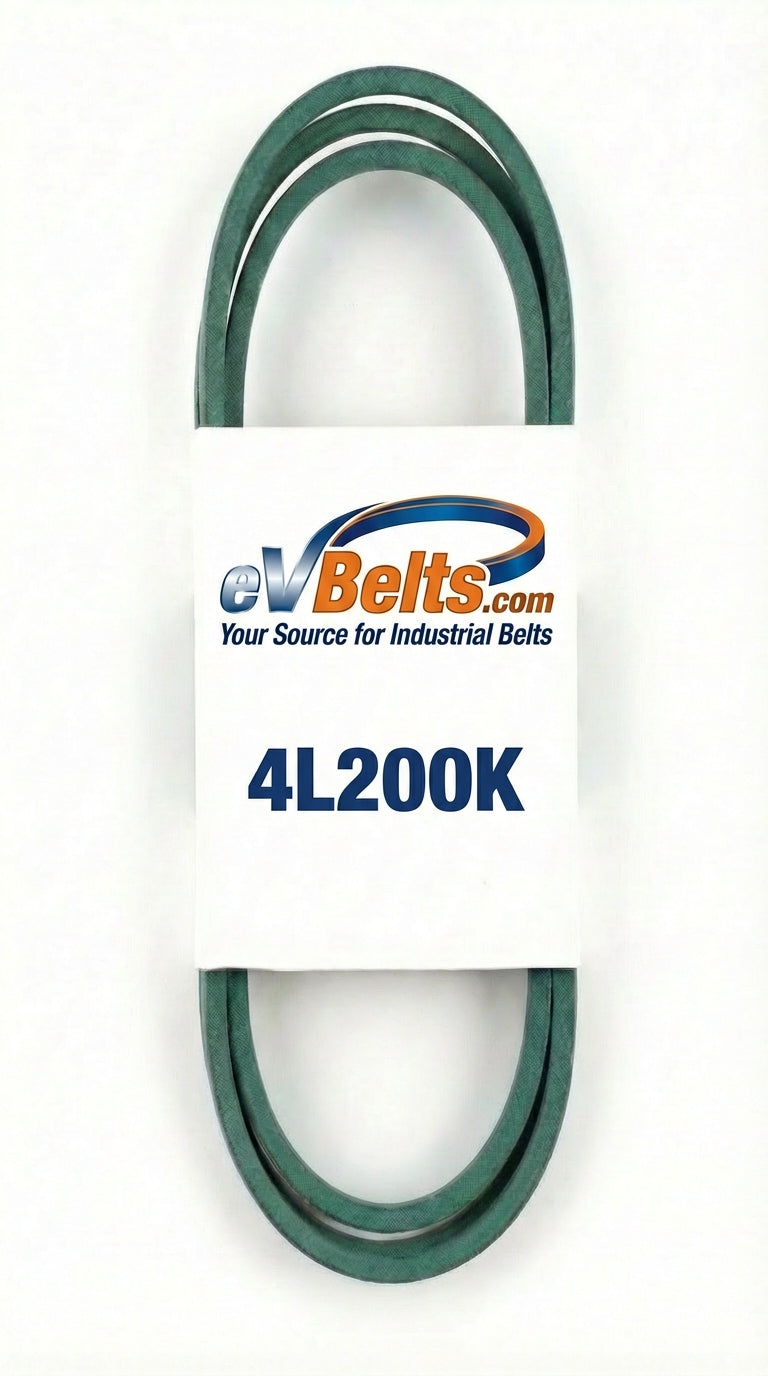

The 4L200K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 20" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L200K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 20" (508mm)
• Inside Length: 18" (457.2mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L200K

• 100162
• BE116
• CHIEF 1526
• COAST TO COAST 1526
• COTTER & CO. 1526
• DYNAMARK LP2154
• HOWARD PRICE 3200
• LAZY BOY 1205
• ROPER 126576
• SEARS ROEBUCK LP2154

The 4L200K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L210 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 21" long, featuring oil and heat resistant rubber construction.

4L210 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 21" (533.4mm)
• Inside Length: 19" (482.6mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L210

• 11723
• LAZY BOY 1208

The 4L210 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

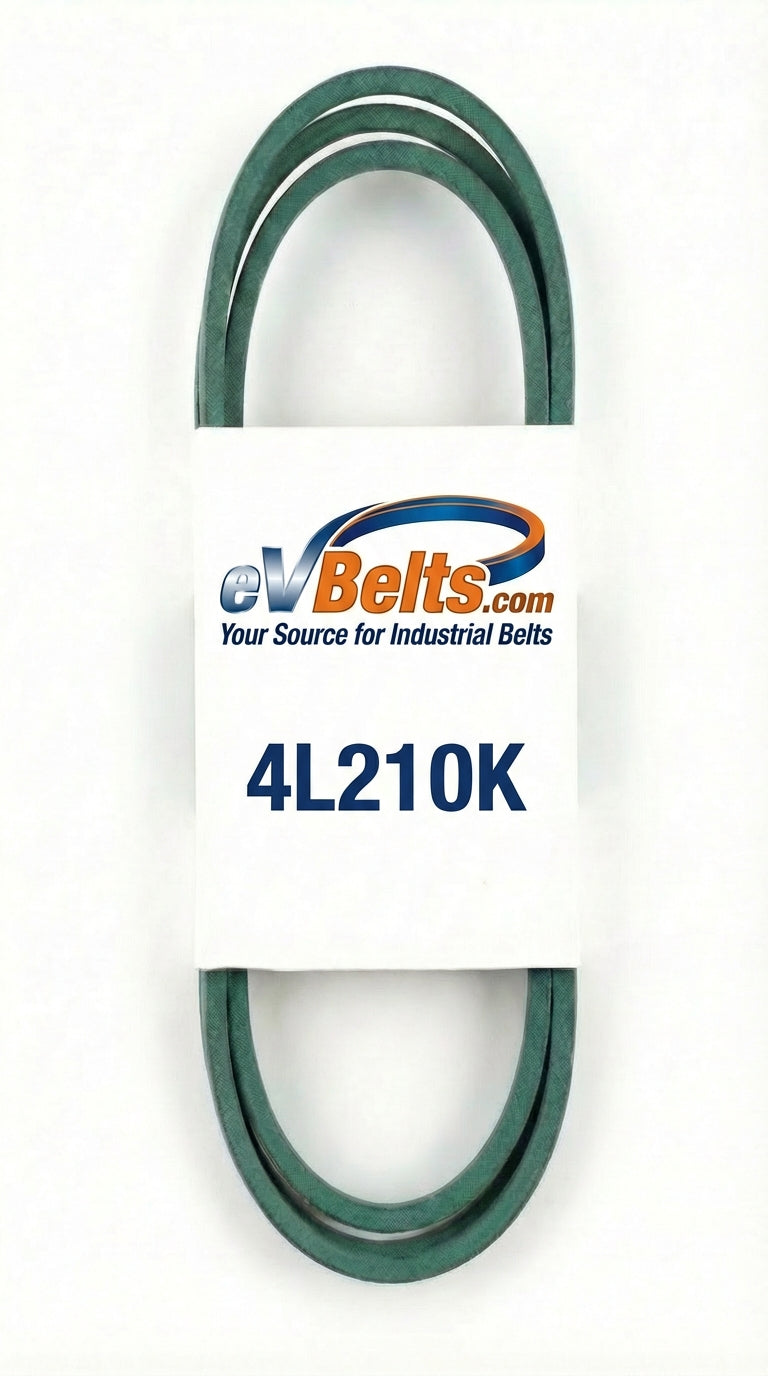

The 4L210K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 21" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L210K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 21" (533.4mm)
• Inside Length: 19" (482.6mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L210K

• DEINES 200235

The 4L210K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L215 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 21.5" long, featuring oil and heat resistant rubber construction.

4L215 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 21.5" (546.1mm)
• Inside Length: 19.5" (495.3mm)
• Min Pulley Diameter: 1.5"

The 4L215 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L220 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 22" long, featuring oil and heat resistant rubber construction.

4L220 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 22" (558.8mm)
• Inside Length: 20" (508mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L220

• 7540114
• BOLENS 1706907

The 4L220 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

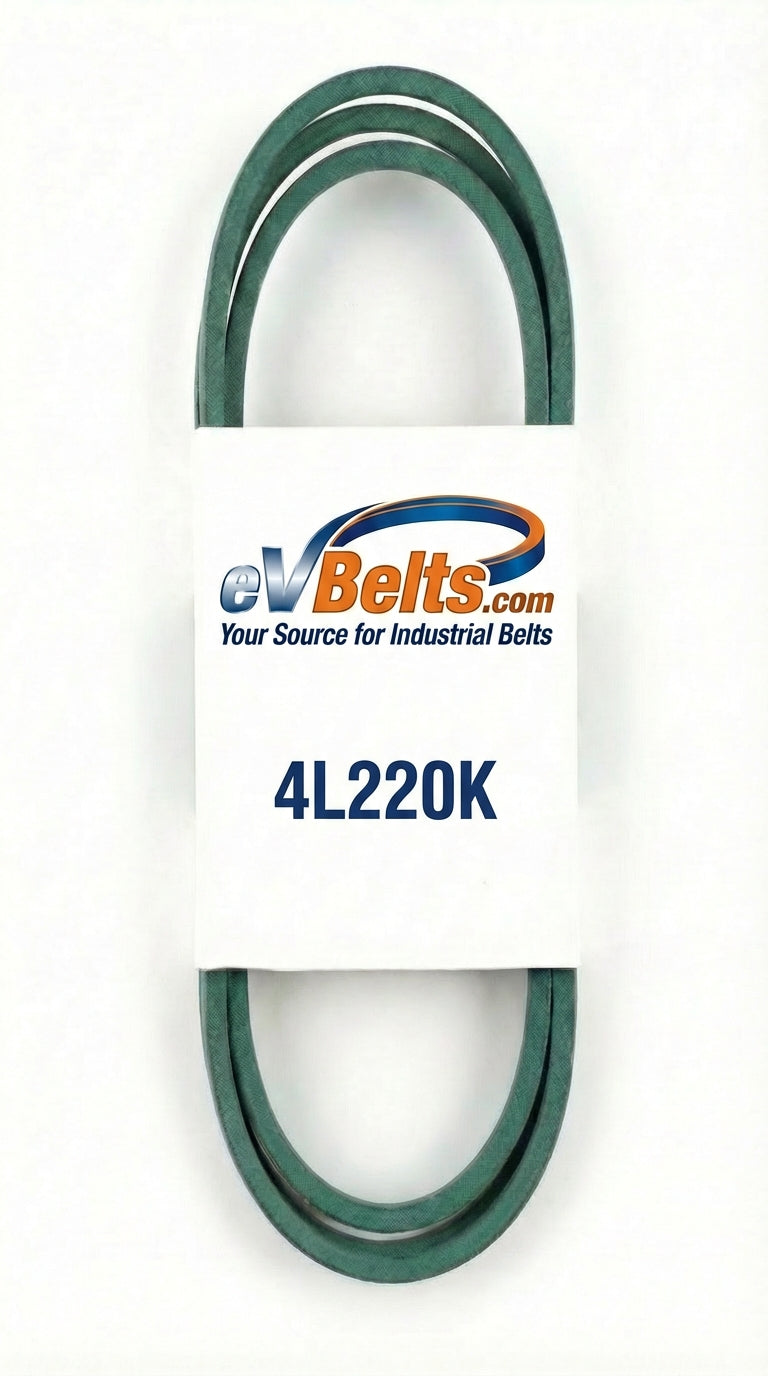

The 4L220K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 22" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L220K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 22" (558.8mm)
• Inside Length: 20" (508mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L220K

• BOLENS 1705033
• PENNEYS 7106
• REO 1598
• REO 6993
• SEARS ROEBUCK 25686
• WHEEL HORSE 6993

The 4L220K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L230 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 23" long, featuring oil and heat resistant rubber construction.

4L230 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 23" (584.2mm)
• Inside Length: 21" (533.4mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L230

• 2492
• 9308
• ACE HARDWARE 7540106
• AGWAY 7540106
• CRUSADER 7540106
• CUB CADET 95404090
• FIRESTONE 7540106
• KEE 2250
• LAZY BOY 1221

The 4L230 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

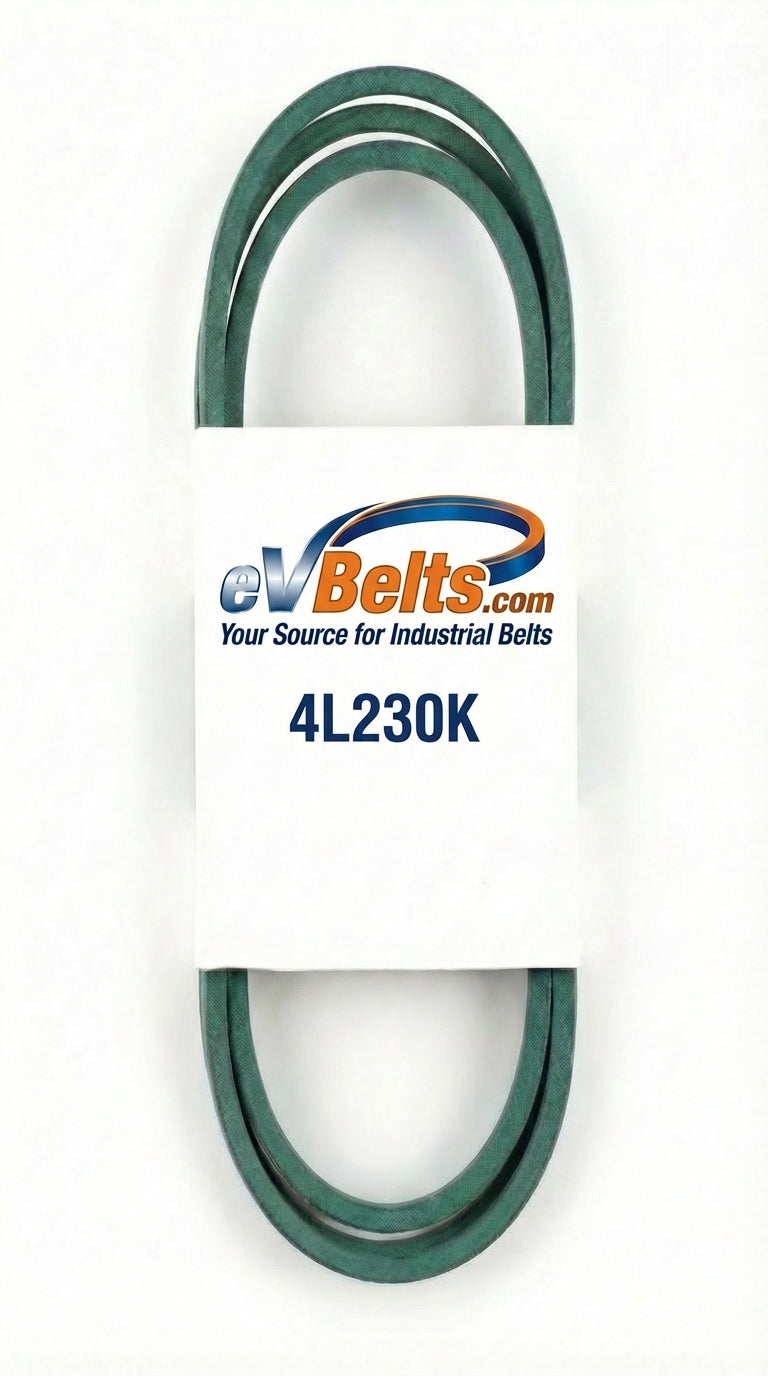

The 4L230K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 23" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L230K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 23" (584.2mm)
• Inside Length: 21" (533.4mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L230K

• 310391
• 310391 (JACOBSEN Ram SP 24")
• 310391 (JACOBSEN Velva Trim 18")
• 310391 (JACOBSEN Velva Trim 19")
• S334
• S334 (SUNSHINE A21SP)
• S334 (SUNSHINE NS421SP)

The 4L230K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L235 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 23.5" long, featuring oil and heat resistant rubber construction.

4L235 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 23.5" (596.9mm)
• Inside Length: 21.5" (546.1mm)
• Min Pulley Diameter: 1.5"

The 4L235 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L240 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 24" long, featuring oil and heat resistant rubber construction.

4L240 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 24" (609.6mm)
• Inside Length: 22" (558.8mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L240

• 1384
• 165129
• 21865
• KEE 2260
• LOCKE 6087

The 4L240 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

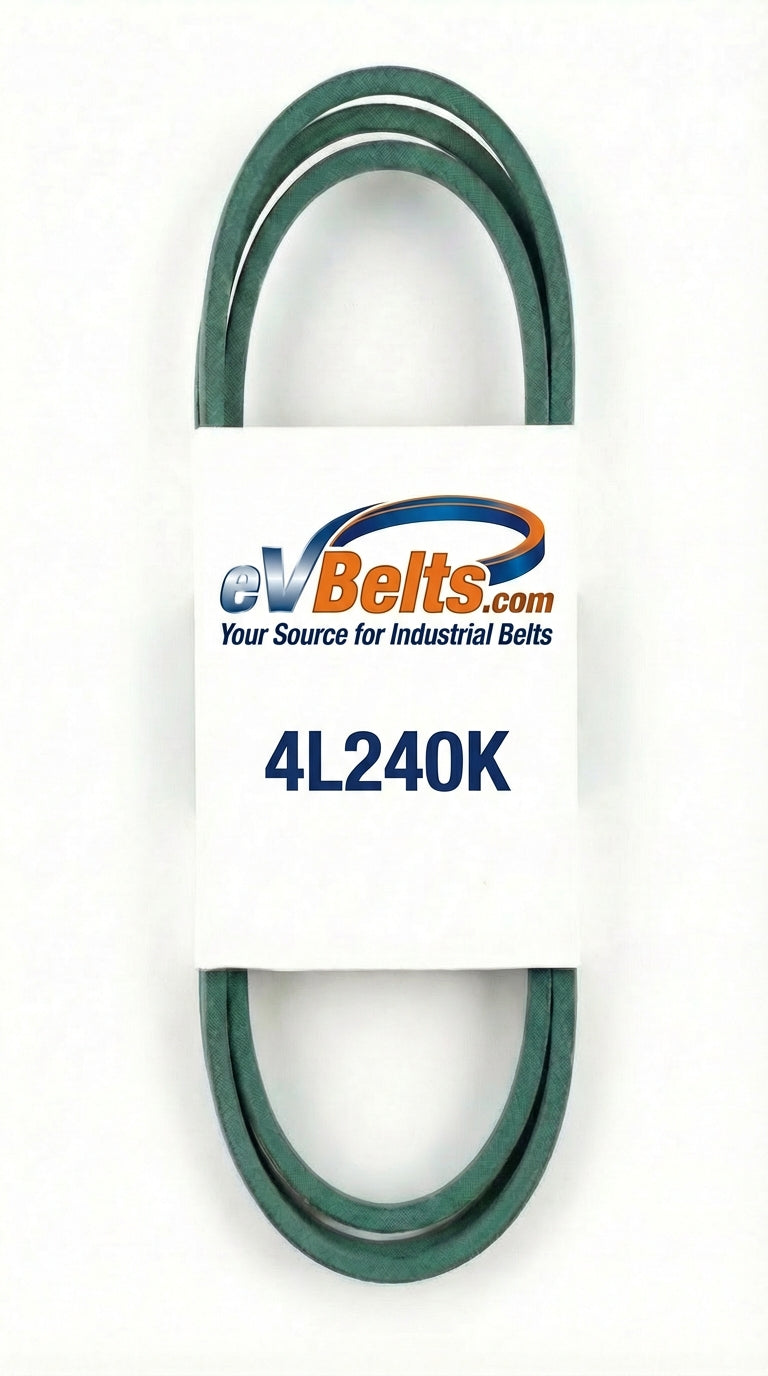

The 4L240K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 24" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L240K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 24" (609.6mm)
• Inside Length: 22" (558.8mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L240K

• ALLIS-CHALMERS 2028459
• ALLIS-CHALMERS 2028549
• MONTGOMERY WARD 170921
• SIMPLICITY 170921
• YAZOO 205024

The 4L240K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L250 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 25" long, featuring oil and heat resistant rubber construction.

4L250 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 25" (635mm)
• Inside Length: 23" (584.2mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L250

• ACE HARDWARE 7540103
• AGWAY 7540103
• ALDENS 7540103
• CRUSADER 7540103
• FIRESTONE 7540103
• SEARS ROEBUCK 54622

The 4L250 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

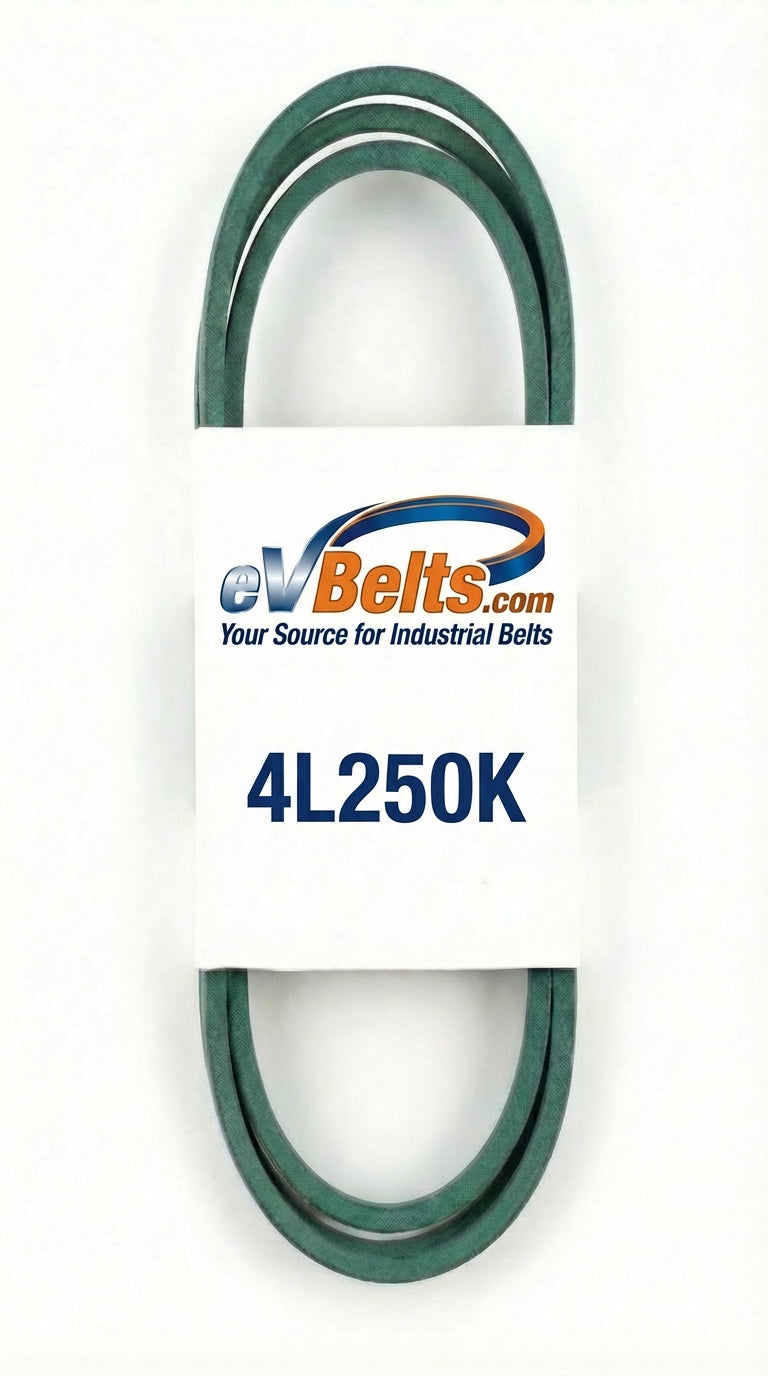

The 4L250K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 25" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L250K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 25" (635mm)
• Inside Length: 23" (584.2mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L250K

• DYNAMARK 23164
• ENGINEERING PRODUCTS 810025
• GAMBLE SKOGMO T223
• GENERAL LEISURE 530050002
• HOMKO 23164
• JACOBSEN 336263
• JOHN DEERE M48520
• MASSEY FERGUSON 1023564M1
• MOTO-MOWER 1004468
• MOTO-MOWER 4468
• NOMA 23164
• NOMA 47201
• PENNEYS 8672B
• PENNEYS R310
• POWER KING 810025

Plus 6 additional OEM part numbers.

The 4L250K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L255 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 25.5" long, featuring oil and heat resistant rubber construction.

4L255 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 25.5" (647.7mm)
• Inside Length: 23.5" (596.9mm)
• Min Pulley Diameter: 1.5"

The 4L255 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L260 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 26" long, featuring oil and heat resistant rubber construction.

4L260 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 26" (660.4mm)
• Inside Length: 24" (609.6mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L260

• 1371
• 7540163

The 4L260 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

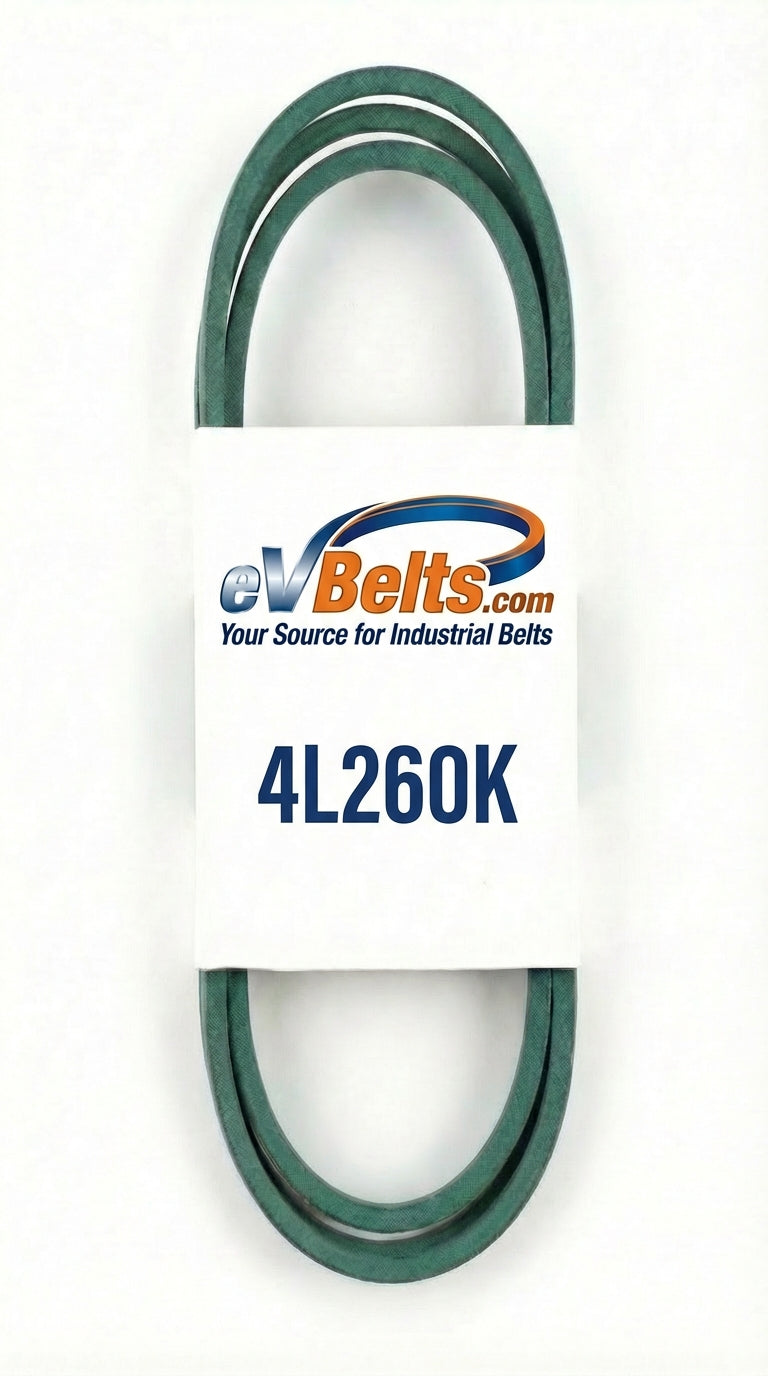

The 4L260K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 26" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L260K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 26" (660.4mm)
• Inside Length: 24" (609.6mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L260K

• BLACK, SIVALLS AND BRYSON 448
• DYNAMARK RP8096
• GRAZER 9003027
• SPRINGFIELD 61D15
• YAZOO 205026

The 4L260K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L270 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 27" long, featuring oil and heat resistant rubber construction.

4L270 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 27" (685.8mm)
• Inside Length: 25" (635mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L270

• ARIENS 72024
• BURNS 9304
• FORD 382069304
• FORD 9304
• LOCKE 6088

The 4L270 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

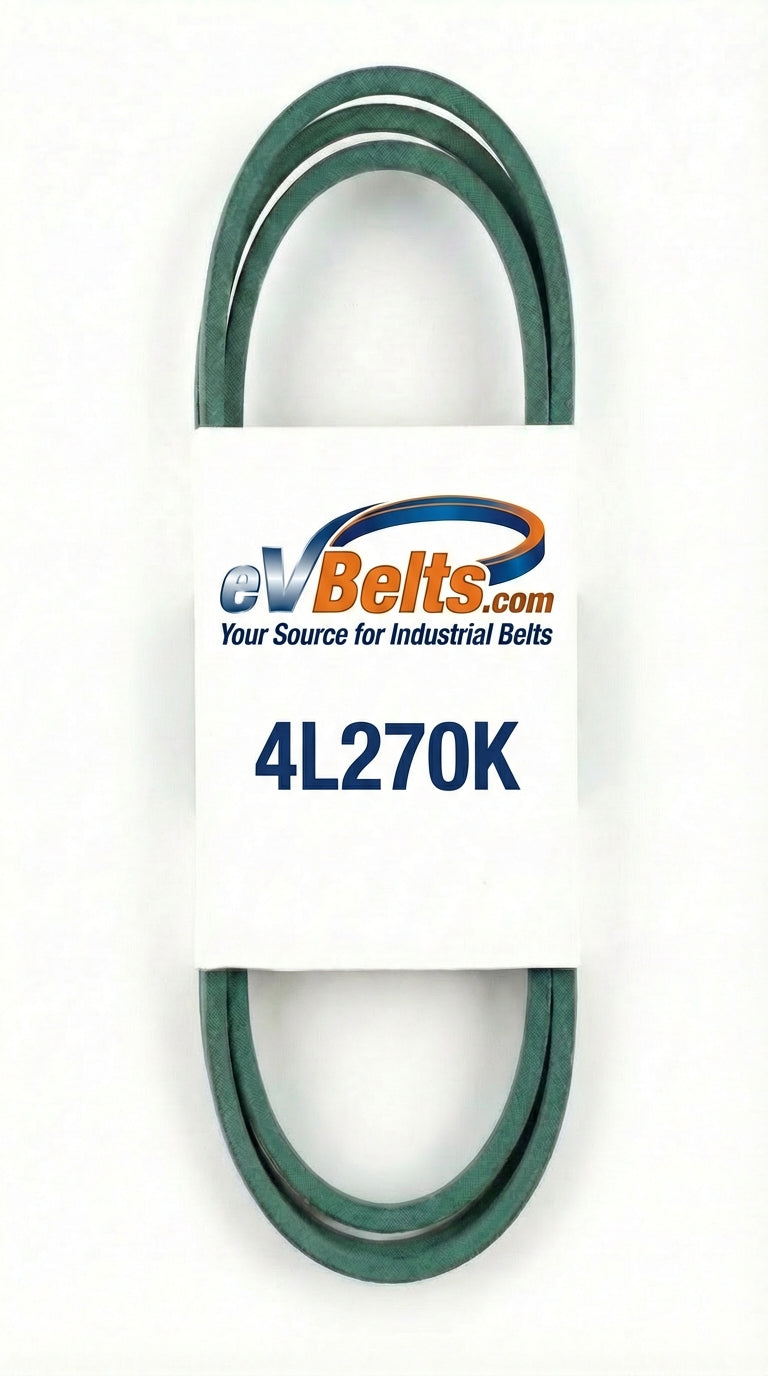

The 4L270K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 27" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L270K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 27" (685.8mm)
• Inside Length: 25" (635mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L270K

• BIG WHEEL 104147
• DIXON 1765
• DYNAMARK 29798
• DYNAMARK 31053
• DYNAMARK RP8095
• GENERAL LEISURE 530050049
• HOMKO 29798
• HOMKO 31053
• MONTGOMERY WARD 165132
• NOMA 29798
• NOMA 31053
• SEARS ROEBUCK 3496H
• SNAPPER 17508

The 4L270K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

The 4L275 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 27.5" long, featuring oil and heat resistant rubber construction.

4L275 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 27.5" (698.5mm)
• Inside Length: 25.5" (647.7mm)
• Min Pulley Diameter: 1.5"

The 4L275 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 4L280 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 28" long, featuring oil and heat resistant rubber construction.

4L280 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 28" (711.2mm)
• Inside Length: 26" (660.4mm)
• Min Pulley Diameter: 1.5"

OEM Part Numbers Replaced by 4L280

• 1108461
• 11948
• 17481
• 18055
• 22431768003
• 2714
• 320005118
• 464351R1
• 61D35
• 7540107

The 4L280 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
