The 4/CX85 is a factory-joined 4-band CX banded belt assembly measuring 3.59" wide x 87.9" long, offering improved flexibility around smaller pulleys.

4/CX85 Specifications

• Top Width: 3.59" (91.19mm)
• Outside Length: 87.9" (2232.7mm)
• Inside Length: 85" (2159mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 4-Band Set

The 4/CX85 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/CX90 is a factory-joined 4-band CX banded belt assembly measuring 3.59" wide x 92.9" long, offering improved flexibility around smaller pulleys.

4/CX90 Specifications

• Top Width: 3.59" (91.19mm)
• Outside Length: 92.9" (2359.7mm)
• Inside Length: 90" (2286mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 4-Band Set

The 4/CX90 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/CX96 is a factory-joined 4-band CX banded belt assembly measuring 3.59" wide x 98.9" long, offering improved flexibility around smaller pulleys.

4/CX96 Specifications

• Top Width: 3.59" (91.19mm)
• Outside Length: 98.9" (2512.1mm)
• Inside Length: 96" (2438.4mm)
• Min Pulley Diameter: 6.5"
• Profile: Cogged/Notched
• Configuration: 4-Band Set

The 4/CX96 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D144 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 147.3" long, featuring oil and heat resistant rubber construction.

4/D144 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 147.3" (3741.4mm)
• Inside Length: 144" (3657.6mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D144 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D158 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 161.3" long, featuring oil and heat resistant rubber construction.

4/D158 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 161.3" (4097mm)
• Inside Length: 158" (4013.2mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D158 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D173 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 176.3" long, featuring oil and heat resistant rubber construction.

4/D173 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 176.3" (4478mm)
• Inside Length: 173" (4394.2mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D173 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D180 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 183.3" long, featuring oil and heat resistant rubber construction.

4/D180 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 183.3" (4655.8mm)
• Inside Length: 180" (4572mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D180 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D195 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 198.3" long, featuring oil and heat resistant rubber construction.

4/D195 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 198.3" (5036.8mm)
• Inside Length: 195" (4953mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D195 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D210 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 213.3" long, featuring oil and heat resistant rubber construction.

4/D210 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 213.3" (5417.8mm)
• Inside Length: 210" (5334mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D210 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D225 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 228.3" long, featuring oil and heat resistant rubber construction.

4/D225 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 228.3" (5798.8mm)
• Inside Length: 225" (5715mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D225 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D240 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 243.3" long, featuring oil and heat resistant rubber construction.

4/D240 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 243.3" (6179.8mm)
• Inside Length: 240" (6096mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D240 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D255 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 258.3" long, featuring oil and heat resistant rubber construction.

4/D255 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 258.3" (6560.8mm)
• Inside Length: 255" (6477mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D255 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D270 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 273.3" long, featuring oil and heat resistant rubber construction.

4/D270 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 273.3" (6941.8mm)
• Inside Length: 270" (6858mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D270 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D285 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 288.3" long, featuring oil and heat resistant rubber construction.

4/D285 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 288.3" (7322.8mm)
• Inside Length: 285" (7239mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D285 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D300 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 303.3" long, featuring oil and heat resistant rubber construction.

4/D300 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 303.3" (7703.8mm)
• Inside Length: 300" (7620mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D300 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D315 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 318.3" long, featuring oil and heat resistant rubber construction.

4/D315 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 318.3" (8084.8mm)
• Inside Length: 315" (8001mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D315 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D330 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 333.3" long, featuring oil and heat resistant rubber construction.

4/D330 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 333.3" (8465.8mm)
• Inside Length: 330" (8382mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D330 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D345 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 348.3" long, featuring oil and heat resistant rubber construction.

4/D345 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 348.3" (8846.8mm)
• Inside Length: 345" (8763mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D345 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D360 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 363.3" long, featuring oil and heat resistant rubber construction.

4/D360 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 363.3" (9227.8mm)
• Inside Length: 360" (9144mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D360 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D390 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 393.3" long, featuring oil and heat resistant rubber construction.

4/D390 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 393.3" (9989.8mm)
• Inside Length: 390" (9906mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D390 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D420 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 423.3" long, featuring oil and heat resistant rubber construction.

4/D420 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 423.3" (10751.8mm)
• Inside Length: 420" (10668mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D420 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D450 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 453.3" long, featuring oil and heat resistant rubber construction.

4/D450 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 453.3" (11513.8mm)
• Inside Length: 450" (11430mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D450 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D480 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 483.3" long, featuring oil and heat resistant rubber construction.

4/D480 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 483.3" (12275.8mm)
• Inside Length: 480" (12192mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D480 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D540 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 543.3" long, featuring oil and heat resistant rubber construction.

4/D540 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 543.3" (13799.8mm)
• Inside Length: 540" (13716mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D540 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D600 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 603.3" long, featuring oil and heat resistant rubber construction.

4/D600 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 603.3" (15323.8mm)
• Inside Length: 600" (15240mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D600 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4/D660 is a factory-joined 4-band D banded belt assembly measuring 5.09" wide x 663.3" long, featuring oil and heat resistant rubber construction.

4/D660 Specifications

• Top Width: 5.09" (129.29mm)
• Outside Length: 663.3" (16847.8mm)
• Inside Length: 660" (16764mm)
• Min Pulley Diameter: 13"
• Configuration: 4-Band Set

The 4/D660 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 4L1000 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 100" long, featuring oil and heat resistant rubber construction.

4L1000 Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 100" (2540mm)
• Inside Length: 98" (2489.2mm)
• Min Pulley Diameter: 1.5"

The 4L1000 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

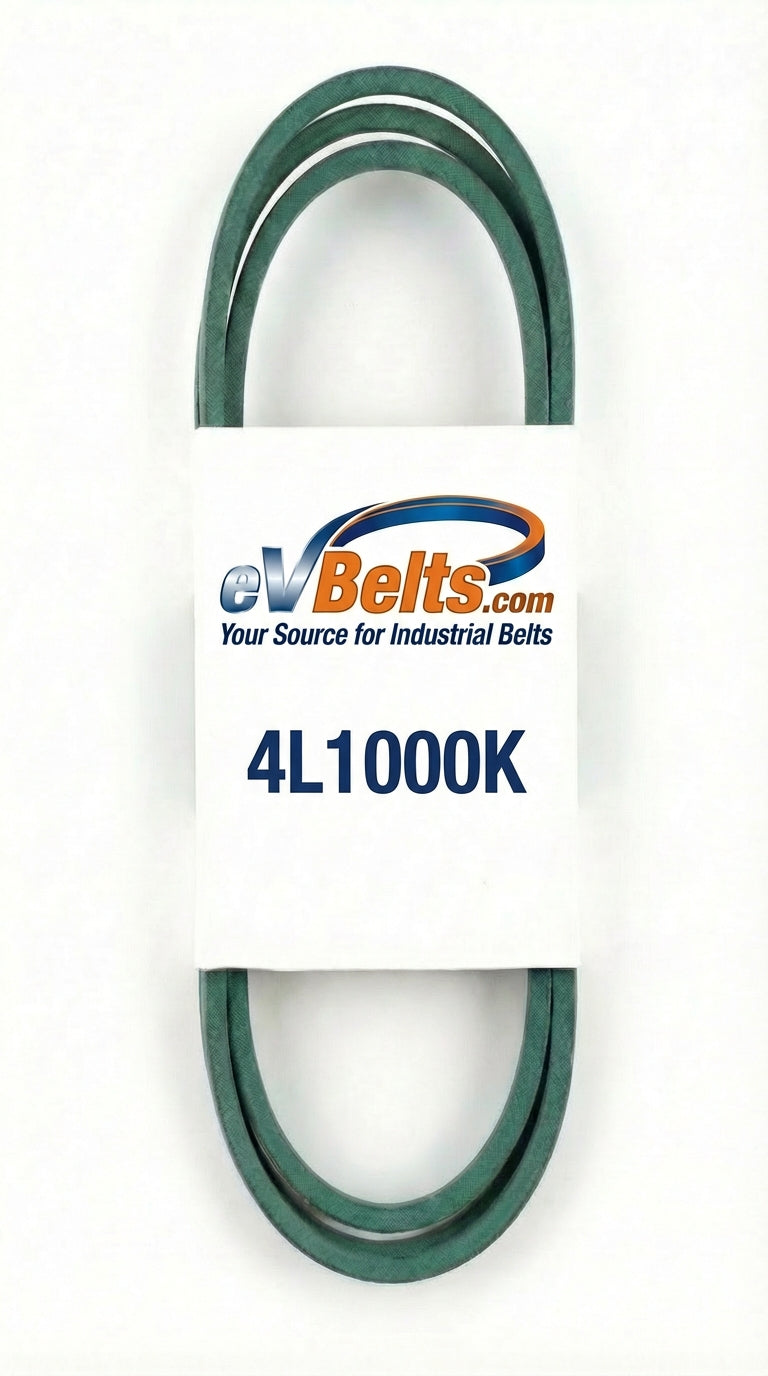

The 4L1000K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 100" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L1000K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 100" (2540mm)
• Inside Length: 98" (2489.2mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L1000K

• DIXON 574173002
• FORD 234360
• HUSQVARNA 574173002
• POULAN PRO 574173002
• ROPER 3703J
• SEARS ROEBUCK 3703J
• SNAPPER 28582
• SNAPPER 29205
• WESTERN AUTO 7540181

The 4L1000K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

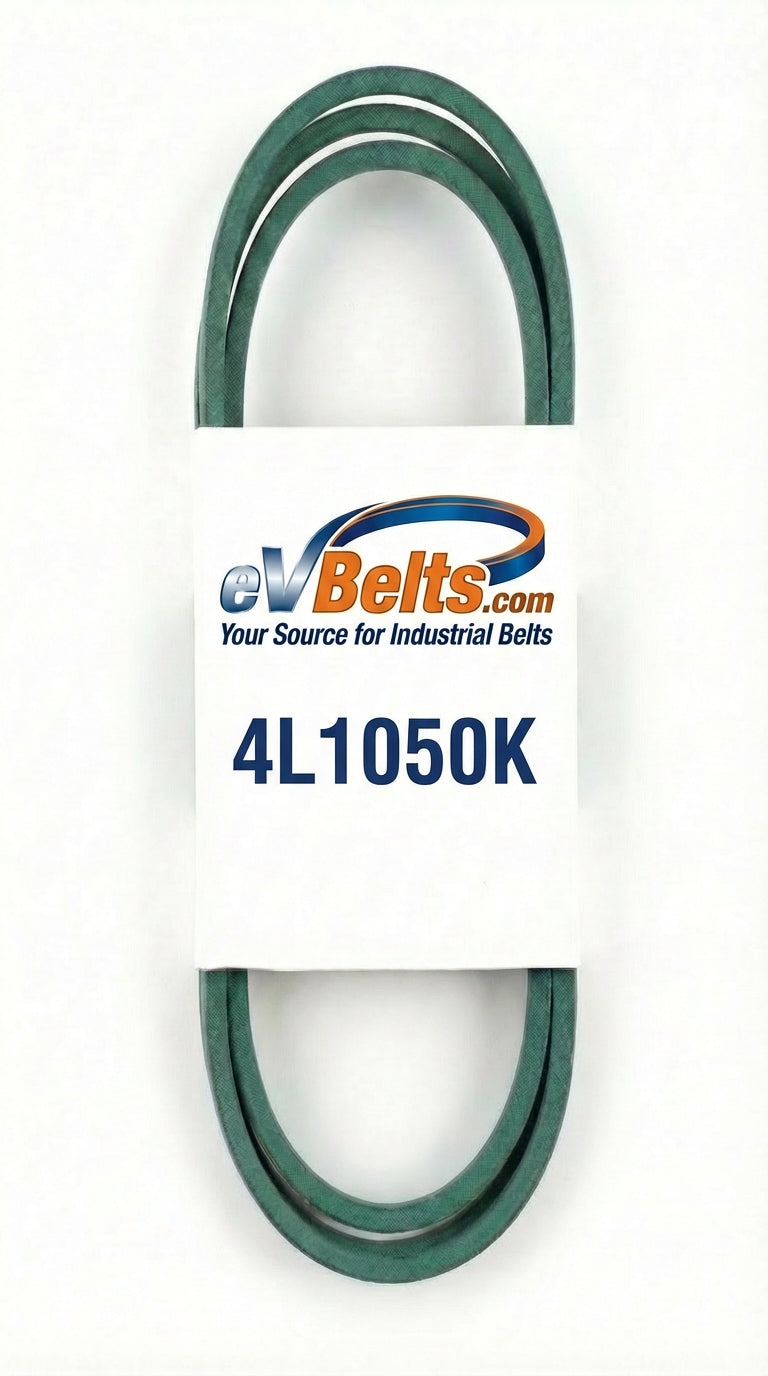

The 4L1050K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 105" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L1050K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 105" (2667mm)
• Inside Length: 103" (2616.2mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

The 4L1050K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.

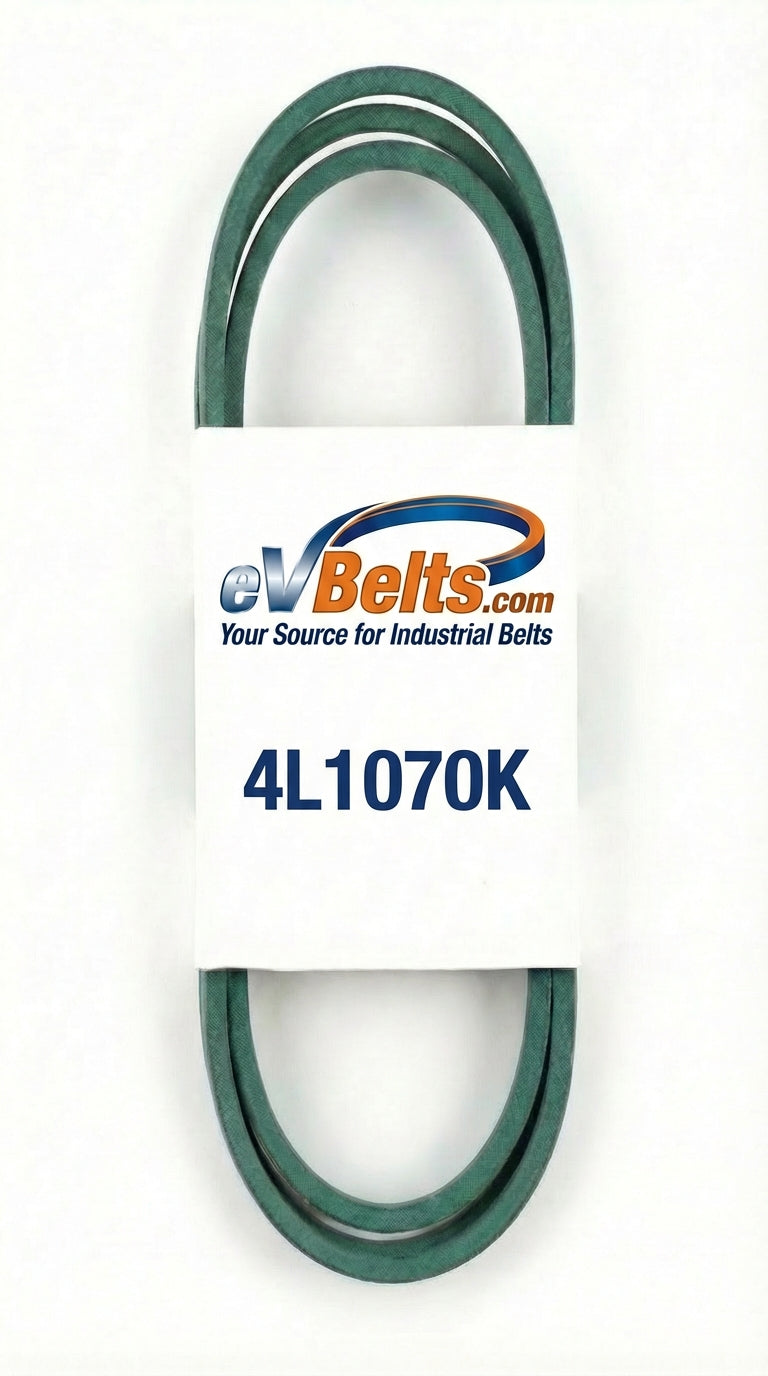

The 4L1070K is a heavy-duty aramid fiber reinforced V-belt measuring 0.5" wide x 107" long, featuring aramid fiber reinforced cords for superior tensile strength.

4L1070K Specifications

• Top Width: 0.5" (12.7mm)
• Outside Length: 107" (2717.8mm)
• Inside Length: 105" (2667mm)
• Min Pulley Diameter: 1.5"
• Reinforcement: Kevlar Aramid Fiber

OEM Part Numbers Replaced by 4L1070K

• JOHN DEERE M89111
• STEINER TURF 81A105

The 4L1070K Kevlar belt is recommended for equipment exposed to extreme temperatures, heavy loads, or demanding operating conditions.
