The 3/5VXP1320 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 132.6" long, offering improved flexibility around smaller pulleys.

3/5VXP1320 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 132.6" (3368mm)
• Inside Length: 131" (3327.4mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP1320 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

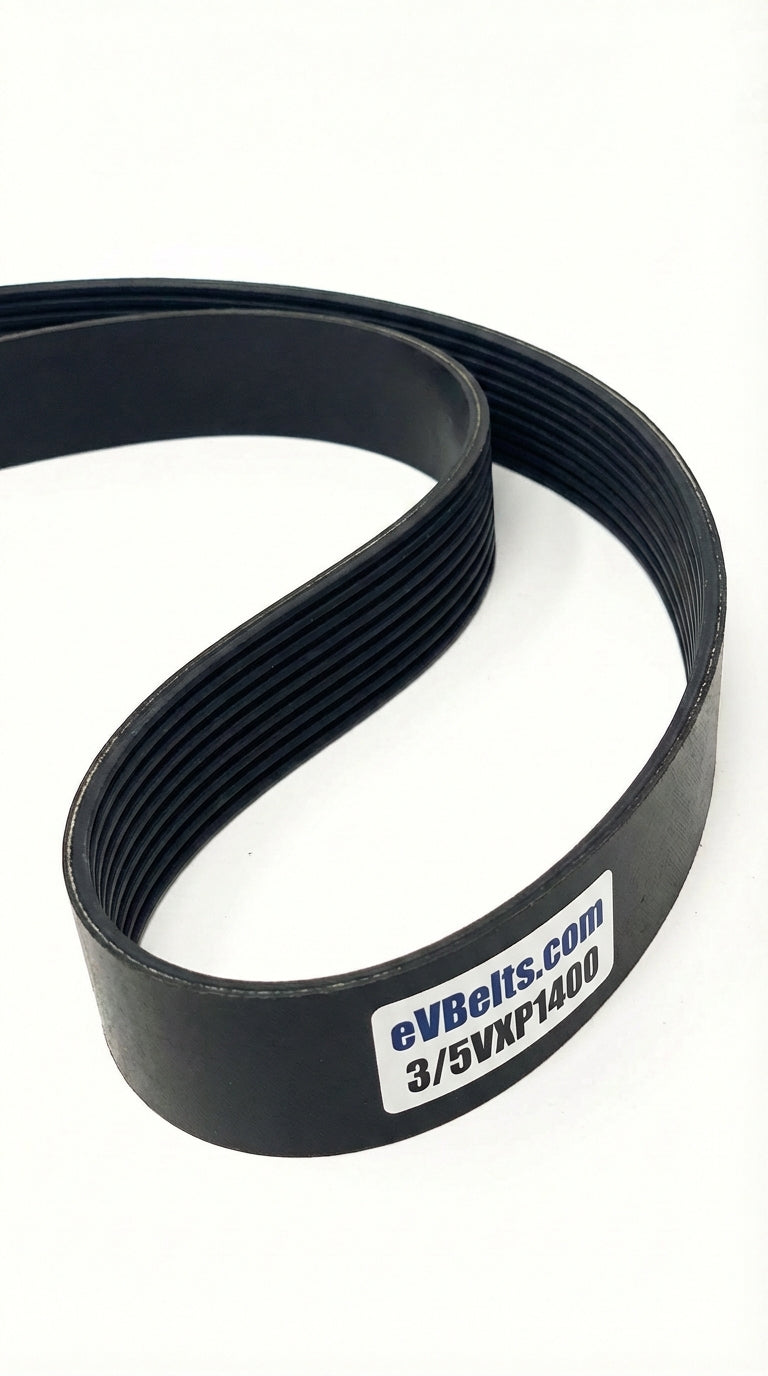

The 3/5VXP1400 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 140.6" long, offering improved flexibility around smaller pulleys.

3/5VXP1400 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 140.6" (3571.2mm)
• Inside Length: 139" (3530.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP1400 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/5VXP1500 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 150.6" long, offering improved flexibility around smaller pulleys.

3/5VXP1500 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 150.6" (3825.2mm)
• Inside Length: 149" (3784.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP1500 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

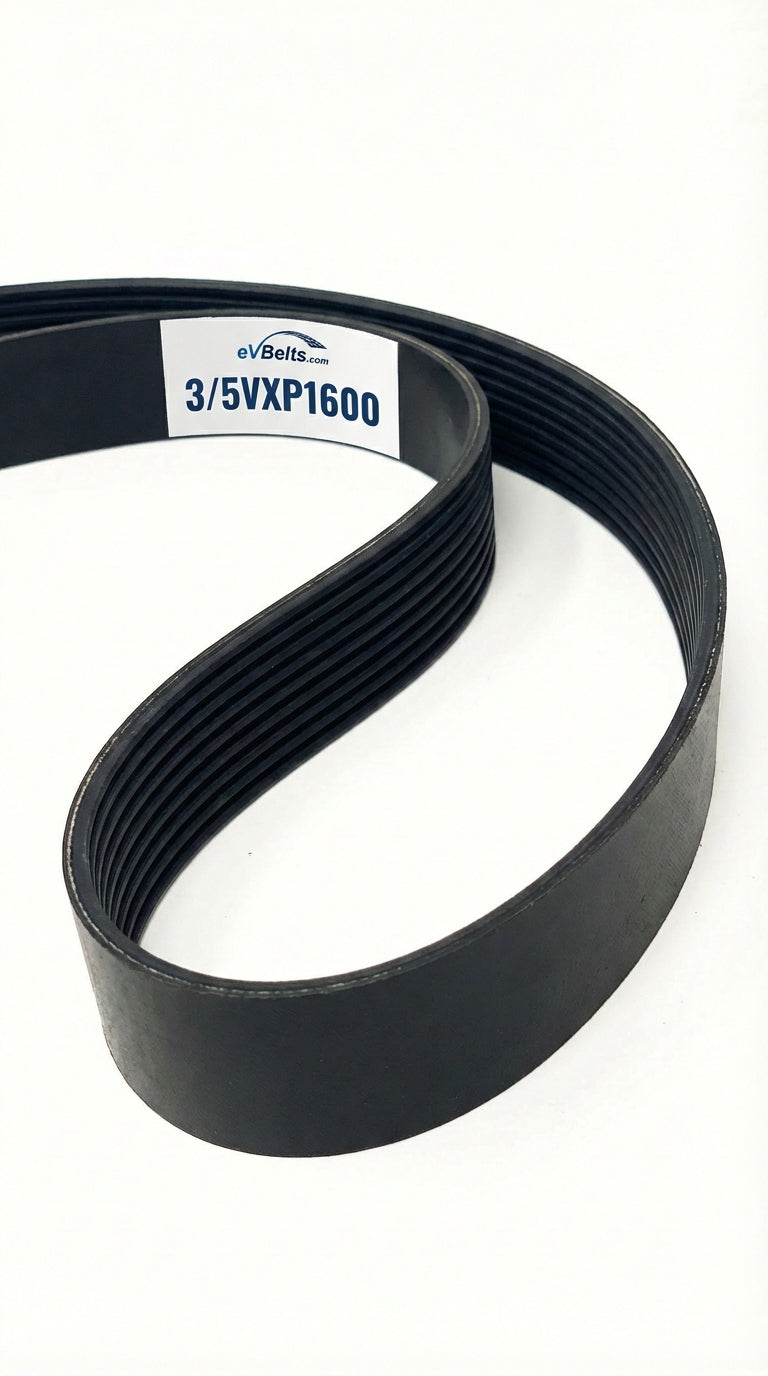

The 3/5VXP1600 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 160.6" long, offering improved flexibility around smaller pulleys.

3/5VXP1600 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 160.6" (4079.2mm)
• Inside Length: 159" (4038.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP1600 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/5VXP1800 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 180.6" long, offering improved flexibility around smaller pulleys.

3/5VXP1800 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 180.6" (4587.2mm)
• Inside Length: 179" (4546.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP1800 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

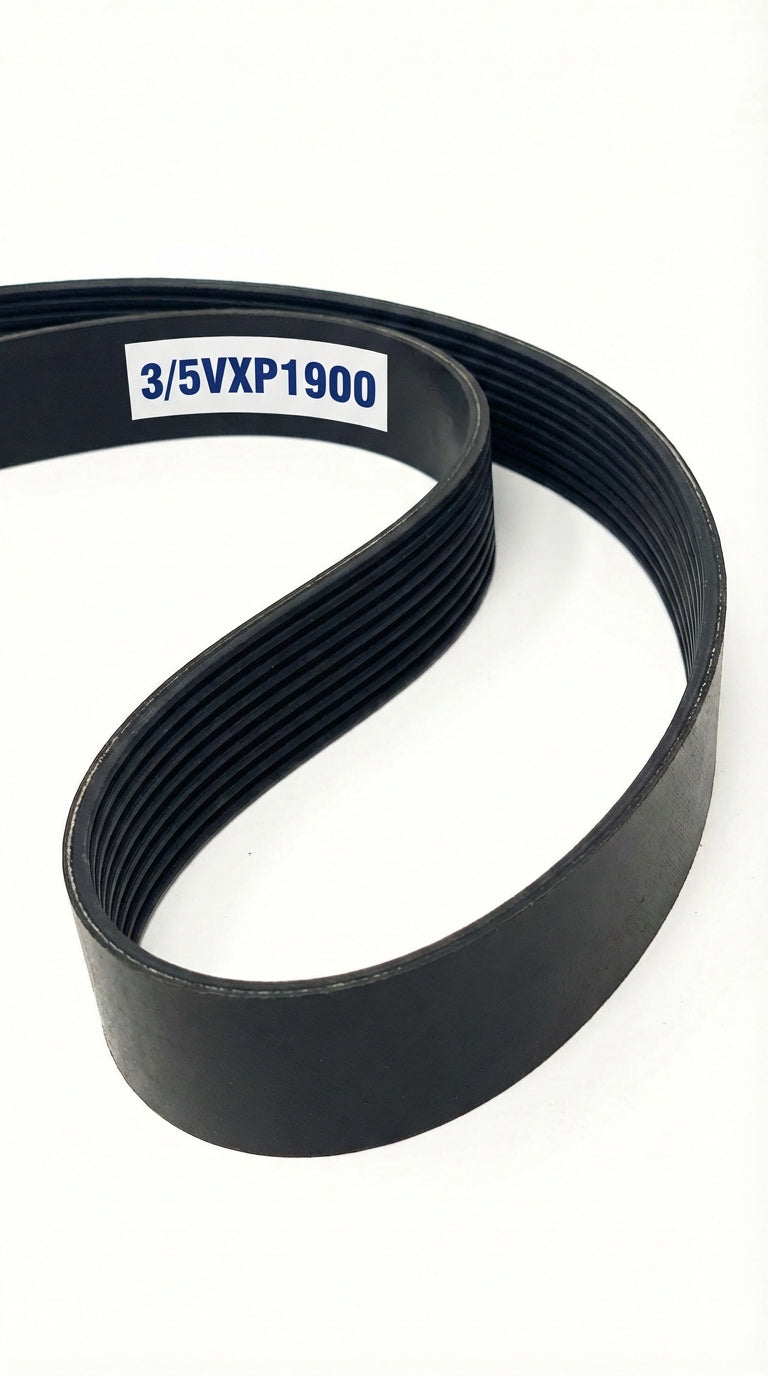

The 3/5VXP1900 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 190.6" long, offering improved flexibility around smaller pulleys.

3/5VXP1900 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 190.6" (4841.2mm)
• Inside Length: 189" (4800.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP1900 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

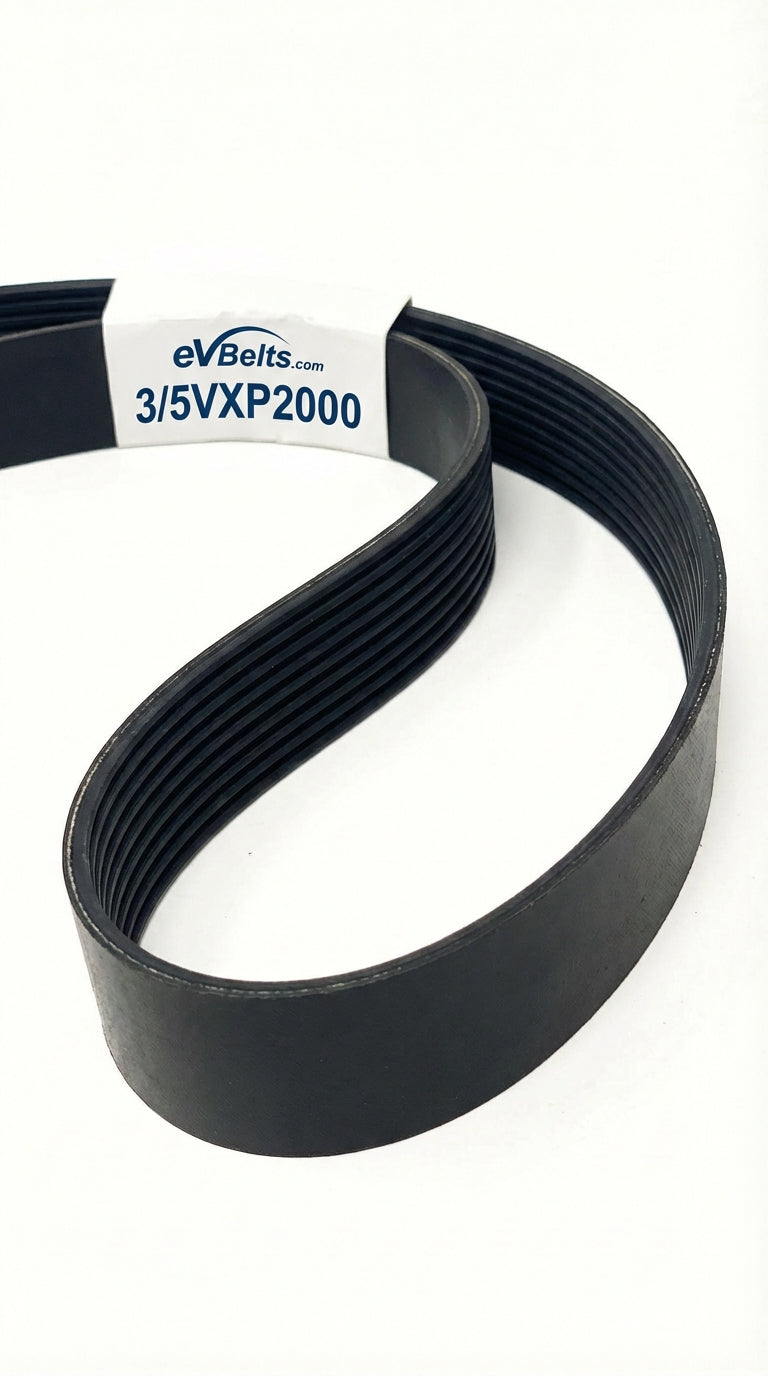

The 3/5VXP2000 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 200.6" long, offering improved flexibility around smaller pulleys.

3/5VXP2000 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 200.6" (5095.2mm)
• Inside Length: 199" (5054.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP2000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/5VXP710 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 71.6" long, offering improved flexibility around smaller pulleys.

3/5VXP710 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 71.6" (1818.6mm)
• Inside Length: 70" (1778mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP710 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

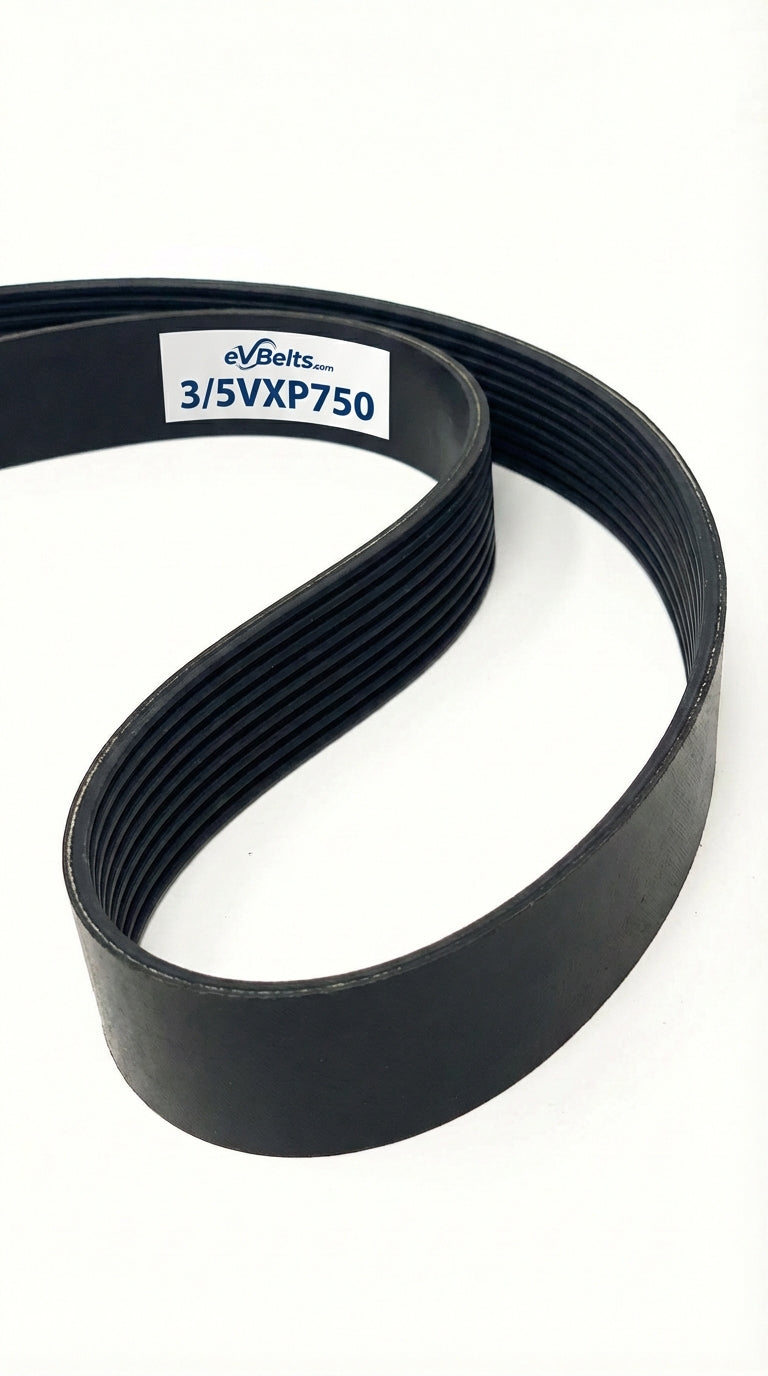

The 3/5VXP750 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 75.6" long, offering improved flexibility around smaller pulleys.

3/5VXP750 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 75.6" (1920.2mm)
• Inside Length: 74" (1879.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP750 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

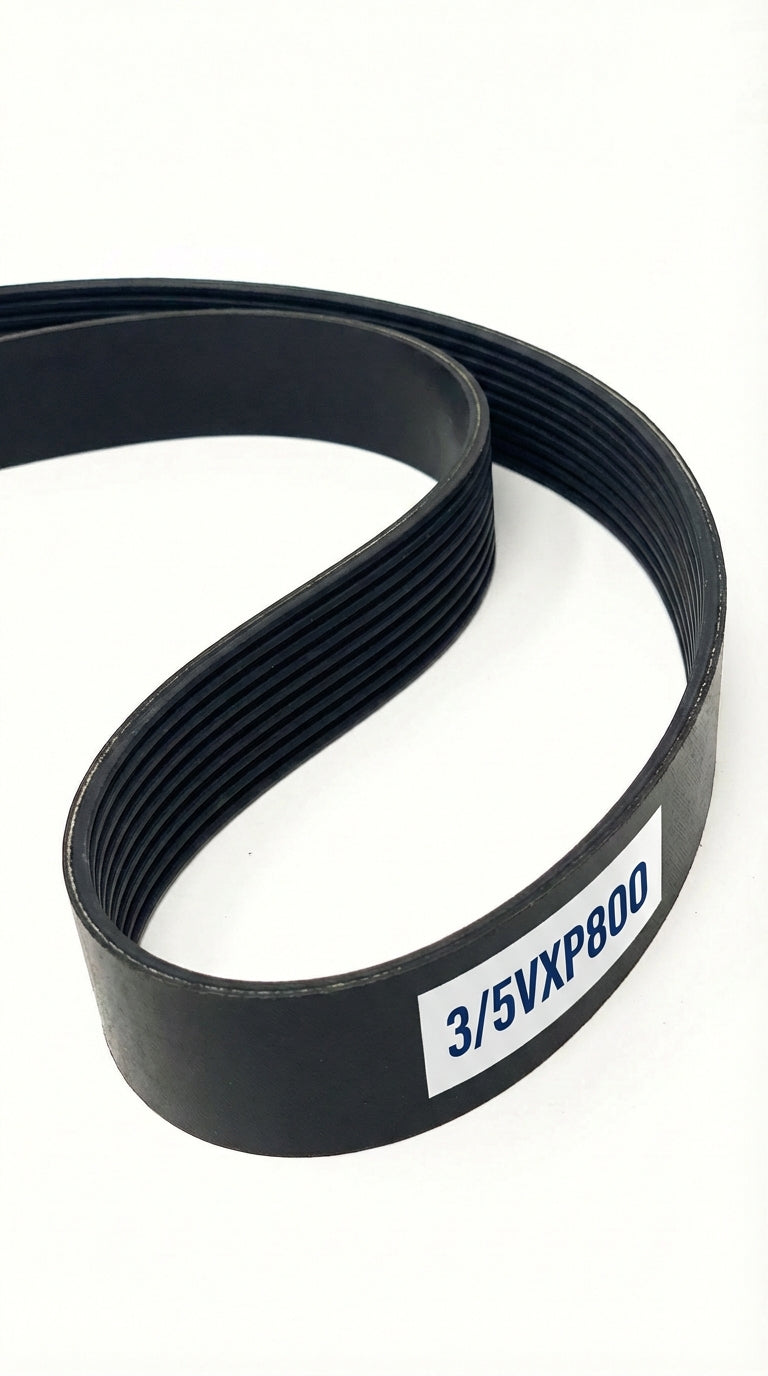

The 3/5VXP800 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 80.6" long, offering improved flexibility around smaller pulleys.

3/5VXP800 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 80.6" (2047.2mm)
• Inside Length: 79" (2006.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP800 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

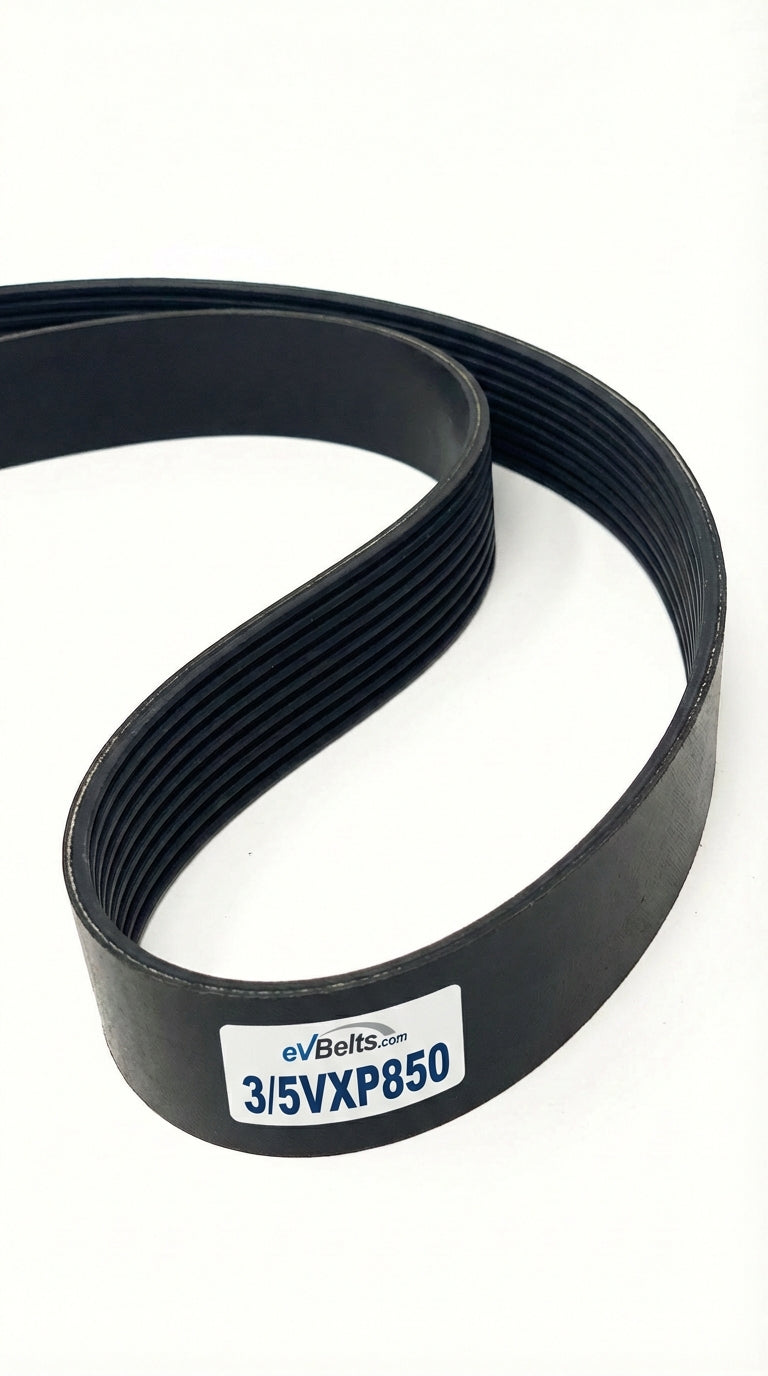

The 3/5VXP850 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 85.6" long, offering improved flexibility around smaller pulleys.

3/5VXP850 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 85.6" (2174.2mm)
• Inside Length: 84" (2133.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP850 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/5VXP900 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 90.6" long, offering improved flexibility around smaller pulleys.

3/5VXP900 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 90.6" (2301.2mm)
• Inside Length: 89" (2260.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP900 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

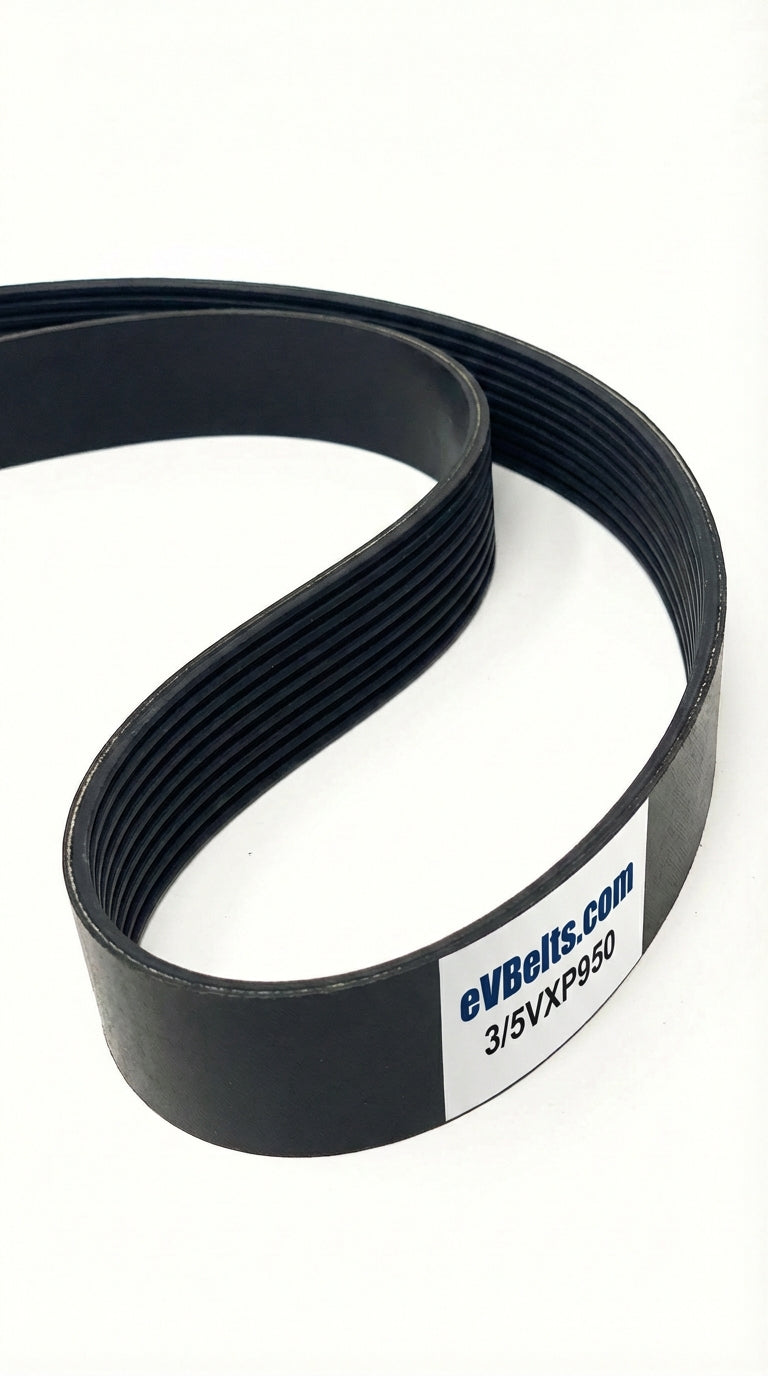

The 3/5VXP950 is a factory-joined 3-band 5VX banded belt assembly measuring 1.935" wide x 95.6" long, offering improved flexibility around smaller pulleys.

3/5VXP950 Specifications

• Top Width: 1.935" (49.15mm)
• Outside Length: 95.6" (2428.2mm)
• Inside Length: 94" (2387.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/5VXP950 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1000JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 39.37" long, featuring oil and heat resistant rubber construction.

3/7M1000JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 39.37" (1000mm)
• Inside Length: 39.17" (995mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1000JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1030JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 40.55" long, featuring oil and heat resistant rubber construction.

3/7M1030JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 40.55" (1030mm)
• Inside Length: 40.35" (1025mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1030JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1060JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 41.73" long, featuring oil and heat resistant rubber construction.

3/7M1060JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 41.73" (1060mm)
• Inside Length: 41.54" (1055mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1060JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1090JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 42.91" long, featuring oil and heat resistant rubber construction.

3/7M1090JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 42.91" (1090mm)
• Inside Length: 42.72" (1085mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1090JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1120JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 44.09" long, featuring oil and heat resistant rubber construction.

3/7M1120JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 44.09" (1120mm)
• Inside Length: 43.9" (1115mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1120JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1150JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 45.28" long, featuring oil and heat resistant rubber construction.

3/7M1150JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 45.28" (1150mm)
• Inside Length: 45.08" (1145mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1150JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1180JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 46.46" long, featuring oil and heat resistant rubber construction.

3/7M1180JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 46.46" (1180mm)
• Inside Length: 46.26" (1175mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1180JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1220JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 48.03" long, featuring oil and heat resistant rubber construction.

3/7M1220JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 48.03" (1220mm)
• Inside Length: 47.83" (1215mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1220JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1250JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 49.21" long, featuring oil and heat resistant rubber construction.

3/7M1250JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 49.21" (1250mm)
• Inside Length: 49.02" (1245mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1250JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1280JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 50.39" long, featuring oil and heat resistant rubber construction.

3/7M1280JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 50.39" (1280mm)
• Inside Length: 50.2" (1275mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1280JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1320JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 51.97" long, featuring oil and heat resistant rubber construction.

3/7M1320JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 51.97" (1320mm)
• Inside Length: 51.77" (1315mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1320JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1360JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 53.54" long, featuring oil and heat resistant rubber construction.

3/7M1360JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 53.54" (1360mm)
• Inside Length: 53.35" (1355mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1360JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1400JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 55.12" long, featuring oil and heat resistant rubber construction.

3/7M1400JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 55.12" (1400mm)
• Inside Length: 54.92" (1395mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1400JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1450JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 57.09" long, featuring oil and heat resistant rubber construction.

3/7M1450JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 57.09" (1450mm)
• Inside Length: 56.89" (1445mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1450JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1500JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 59.06" long, featuring oil and heat resistant rubber construction.

3/7M1500JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 59.06" (1500mm)
• Inside Length: 58.86" (1495mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1500JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1550JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 61.02" long, featuring oil and heat resistant rubber construction.

3/7M1550JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 61.02" (1550mm)
• Inside Length: 60.83" (1545mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1550JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.

The 3/7M1600JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 62.99" long, featuring oil and heat resistant rubber construction.

3/7M1600JB Specifications

• Top Width: 0.555" (14.1mm)
• Outside Length: 62.99" (1600mm)
• Inside Length: 62.8" (1595mm)
• Min Pulley Diameter: 2.48"
• Configuration: 3-Band Set

The 3/7M1600JB banded belt assembly ensures synchronized operation and even load distribution across all grooves.
