9/A74
9/A74
/
/

9/A74

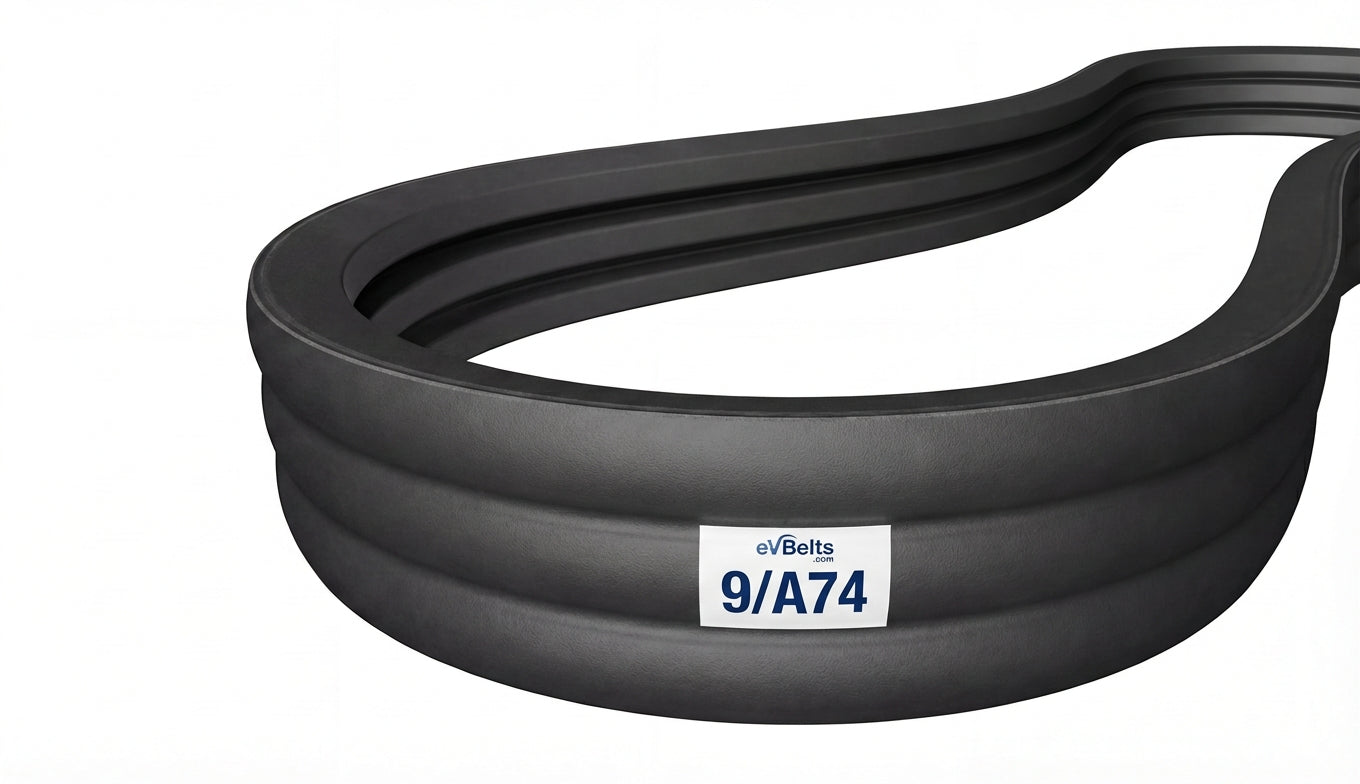

The 9/A74 is a factory-joined 9-band A banded belt assembly measuring 4.74" wide x 75.3" long, featuring oil and heat resistant rubber construction.

SKU: 1214116

$90.73

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications
Part Number 9/A74
Top Width 4.74 in / 120.4 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 74.0 in / 1879.6 mm
Outside Length 75.3 in / 1912.6 mm
Effective Length 75.0 in
Min Sheave Diameter 3.0 in / 76.2 mm
Ribs 9
