9/A110

Top Width: 4.74" (120.4mm)
Outside Length: 111.3" (2827mm)
Inside Length: 110" (2794mm)
Min Pulley Diameter: 3"
Configuration: 9-Band Set

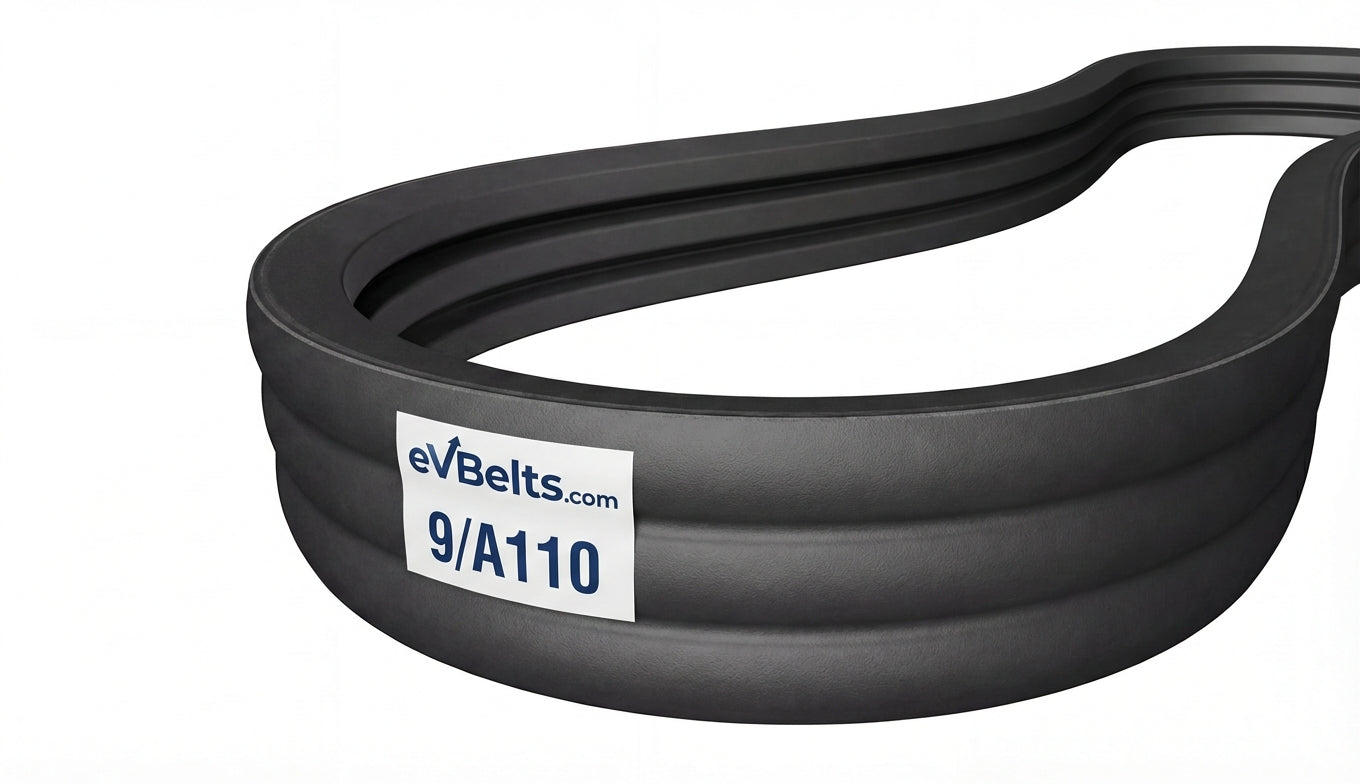

The 9/A110 is a factory-joined 9-band A banded belt assembly measuring 4.74" wide x 111.3" long, featuring oil and heat resistant rubber construction.

SKU: 1214130

$142.49

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	9/A110
Top Width	4.74 in / 120.4 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	110.0 in / 2794.0 mm
Outside Length	111.3 in / 2827.0 mm
Effective Length	111.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	9
