7/A144

Top Width: 3.68" (93.47mm)
Outside Length: 145.3" (3690.6mm)
Inside Length: 144" (3657.6mm)
Min Pulley Diameter: 3"
Configuration: 7-Band Set

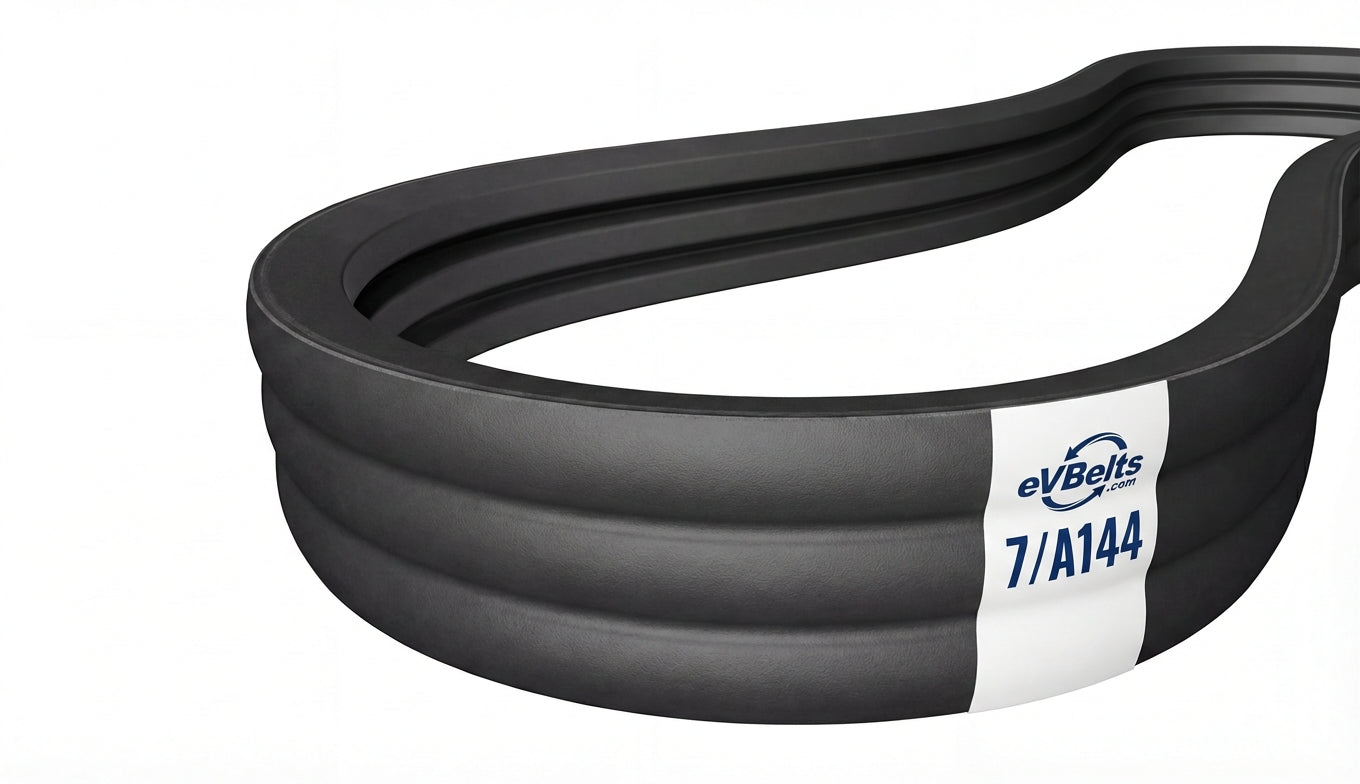

The 7/A144 is a factory-joined 7-band A banded belt assembly measuring 3.68" wide x 145.3" long, featuring oil and heat resistant rubber construction.

SKU: 1214046

$148.32

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	7/A144
Top Width	3.68 in / 93.47 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	144.0 in / 3657.6 mm
Outside Length	145.3 in / 3690.6 mm
Effective Length	145.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	7
