5/A77
5/A77
/
/

5/A77

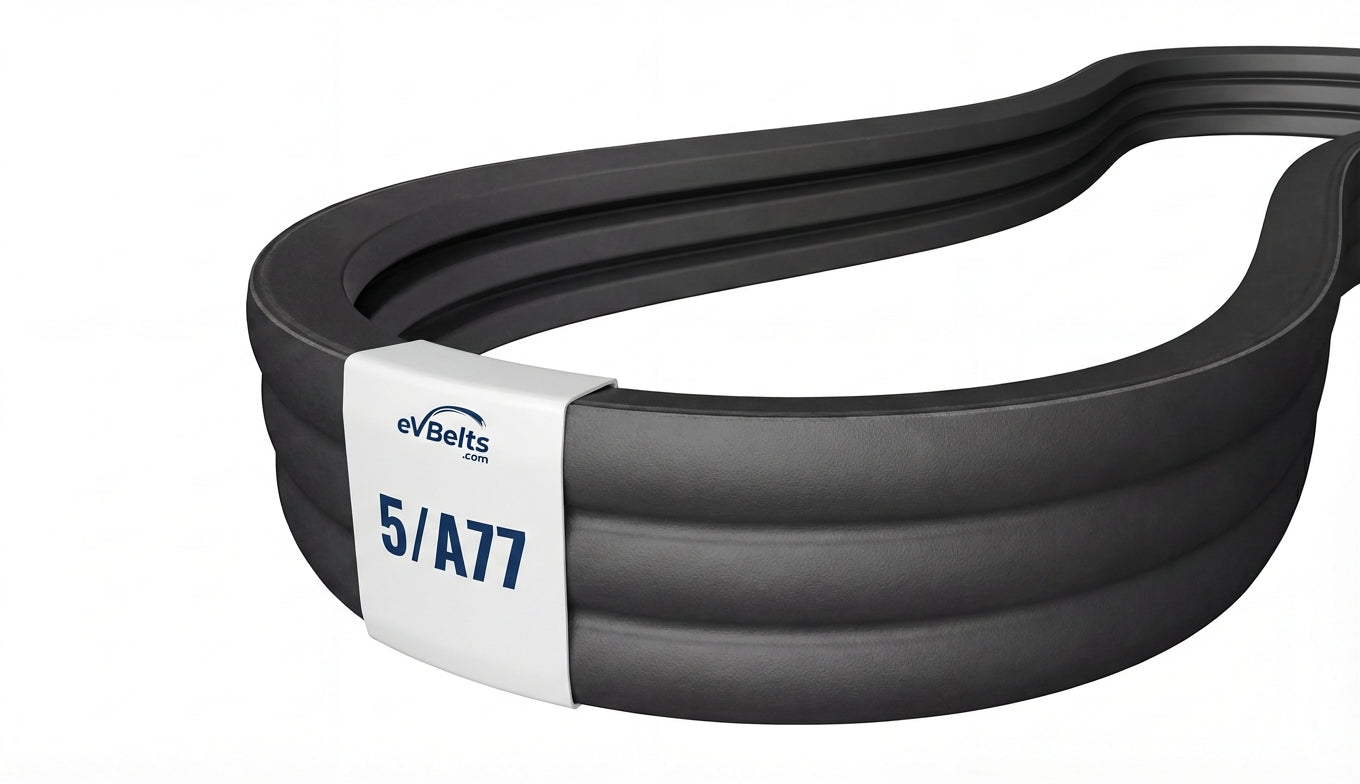

The 5/A77 is a factory-joined 5-band A banded belt assembly measuring 2.62" wide x 78.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213942

$41.75

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications
Part Number 5/A77
Top Width 2.62 in / 66.55 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 77.0 in / 1955.8 mm
Outside Length 78.3 in / 1988.8 mm
Effective Length 78.0 in
Min Sheave Diameter 3.0 in / 76.2 mm
Ribs 5
