4L760

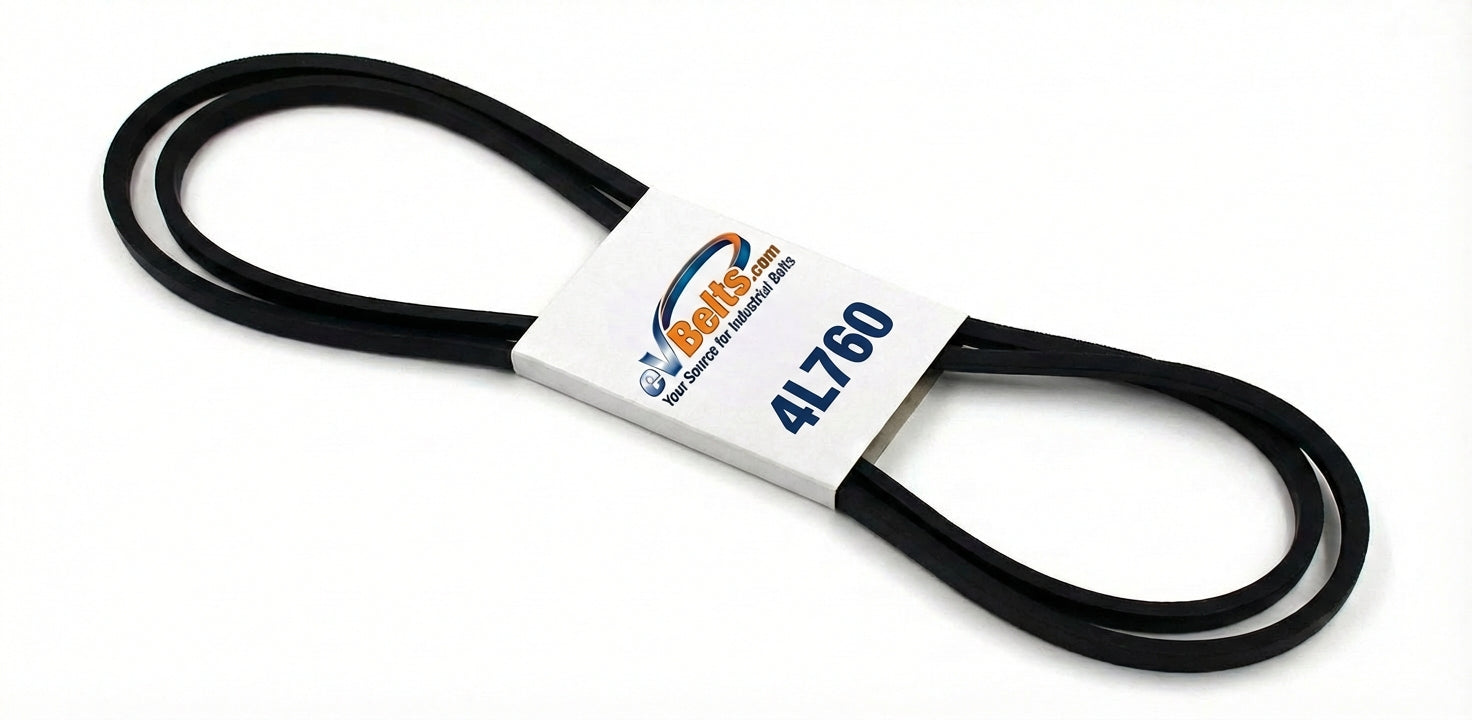

The 4L760 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 76" long, featuring oil and heat resistant rubber construction.
SKU: 1251453
$4.31
431
1502 In Stock
Estimated delivery between June 25 and June 27.
Technical Specifications
| Part Number | 4L760 |
| Top Width | 0.5 in / 12.7 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 74.0 in / 1879.6 mm |
| Outside Length | 76.0 in / 1930.4 mm |
| Effective Length | 75.0 in |
| Min Sheave Diameter | 1.5 in / 38.1 mm |
Replaces These OEM Part Numbers (2)
This belt replaces the following OEM part numbers:
11296
200982
4L760
