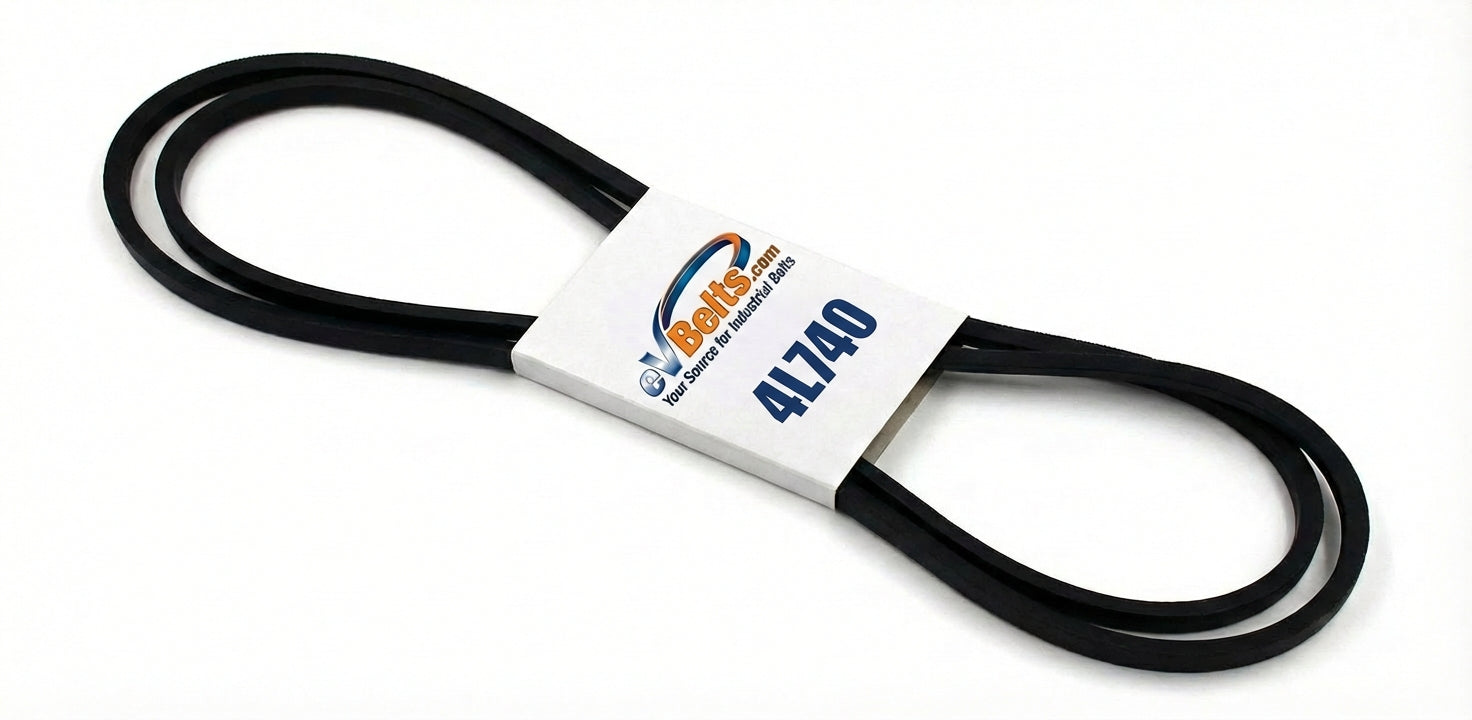

4L740
The 4L740 is a premium Fractional Horsepower V-belt measuring 0.5" wide x 74" long, featuring oil and heat resistant rubber construction.
SKU: 1251450
$4.18
418
2208 In Stock
Estimated delivery between June 24 and June 26.
Technical Specifications
| Part Number | 4L740 |
| Top Width | 0.5 in / 12.7 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 72.0 in / 1828.8 mm |
| Outside Length | 74.0 in / 1879.6 mm |
| Effective Length | 73.0 in |
| Min Sheave Diameter | 1.5 in / 38.1 mm |
Replaces These OEM Part Numbers (5)
This belt replaces the following OEM part numbers:
1607284
25129
C16498
C22707
H86061
4L740
