3/A136

Top Width: 1.56" (39.62mm)
Outside Length: 137.3" (3487.4mm)
Inside Length: 136" (3454.4mm)
Min Pulley Diameter: 3"
Configuration: 3-Band Set

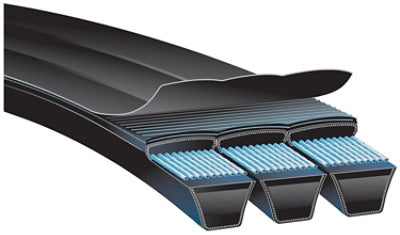

The 3/A136 is a factory-joined 3-band A banded belt assembly measuring 1.56" wide x 137.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213870

$54.73

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	3/A136
Top Width	1.56 in / 39.62 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	136.0 in / 3454.4 mm
Outside Length	137.3 in / 3487.4 mm
Effective Length	137.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	3
