20/A90

Top Width: 10.57" (268.48mm)
Outside Length: 91.3" (2319mm)
Inside Length: 90" (2286mm)
Min Pulley Diameter: 3"
Configuration: 20-Band Set

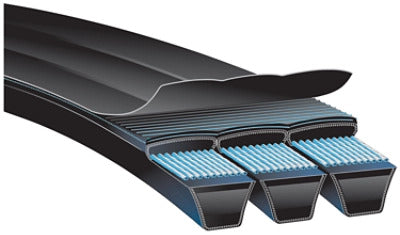

The 20/A90 is a factory-joined 20-band A banded belt assembly measuring 10.57" wide x 91.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213772

$253.17

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	20/A90
Top Width	10.57 in / 268.48 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	90.0 in / 2286.0 mm
Outside Length	91.3 in / 2319.0 mm
Effective Length	91.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	20
