20/A144

Top Width: 10.57" (268.48mm)
Outside Length: 145.3" (3690.6mm)
Inside Length: 144" (3657.6mm)
Min Pulley Diameter: 3"
Configuration: 20-Band Set

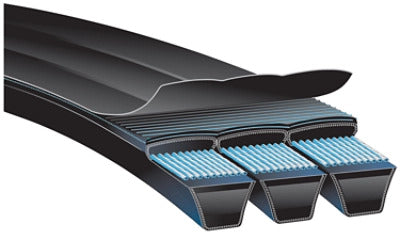

The 20/A144 is a factory-joined 20-band A banded belt assembly measuring 10.57" wide x 145.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213781

$423.48

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	20/A144
Top Width	10.57 in / 268.48 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	144.0 in / 3657.6 mm
Outside Length	145.3 in / 3690.6 mm
Effective Length	145.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	20
