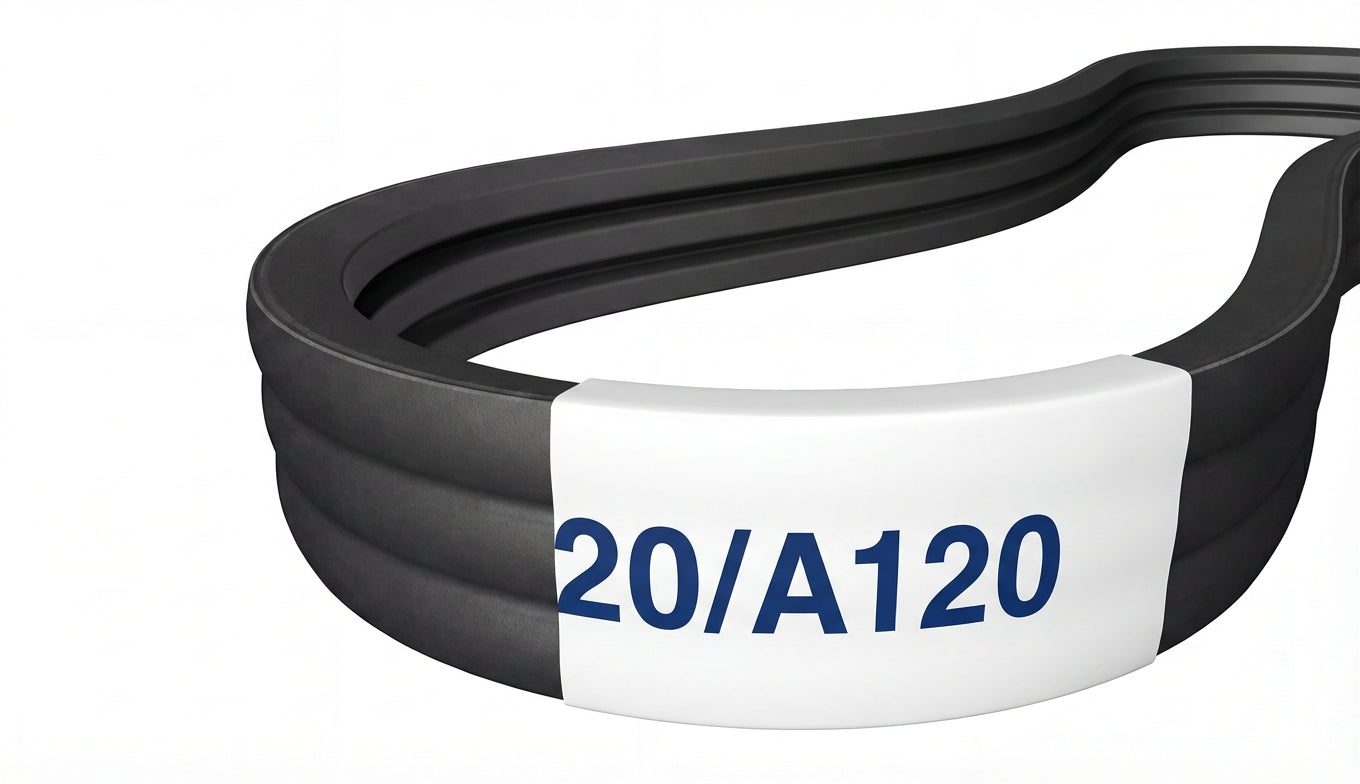

20/A120

Top Width: 10.57" (268.48mm)
Outside Length: 121.3" (3081mm)
Inside Length: 120" (3048mm)
Min Pulley Diameter: 3"
Configuration: 20-Band Set

The 20/A120 is a factory-joined 20-band A banded belt assembly measuring 10.57" wide x 121.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213780

$351.02

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	20/A120
Top Width	10.57 in / 268.48 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	120.0 in / 3048.0 mm
Outside Length	121.3 in / 3081.0 mm
Effective Length	121.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	20
