19/A58

Top Width: 10.04" (255.02mm)
Outside Length: 59.3" (1506.2mm)
Inside Length: 58" (1473.2mm)
Min Pulley Diameter: 3"
Configuration: 19-Band Set

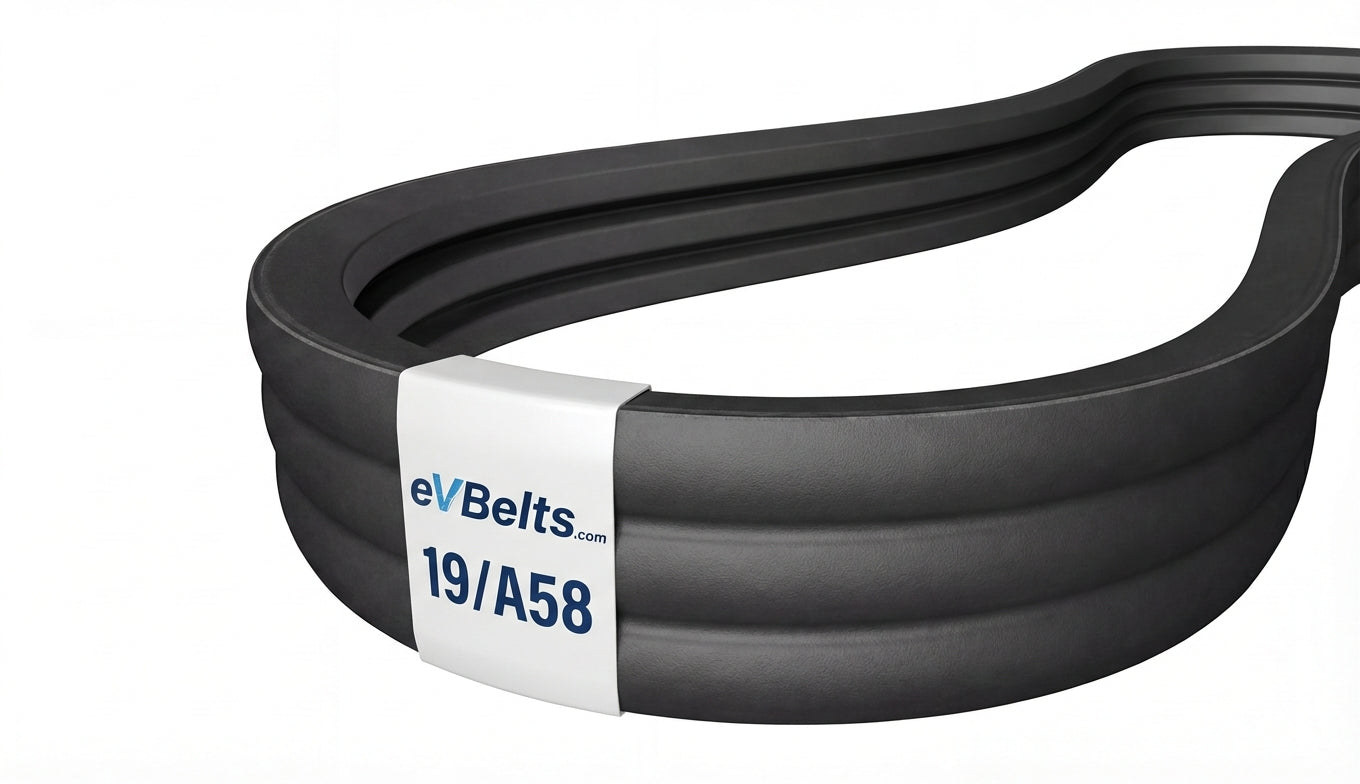

The 19/A58 is a factory-joined 19-band A banded belt assembly measuring 10.04" wide x 59.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213711

$159.66

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	19/A58
Top Width	10.04 in / 255.02 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	58.0 in / 1473.2 mm
Outside Length	59.3 in / 1506.2 mm
Effective Length	59.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	19
