19/A49

Top Width: 10.04" (255.02mm)
Outside Length: 50.3" (1277.6mm)
Inside Length: 49" (1244.6mm)
Min Pulley Diameter: 3"
Configuration: 19-Band Set

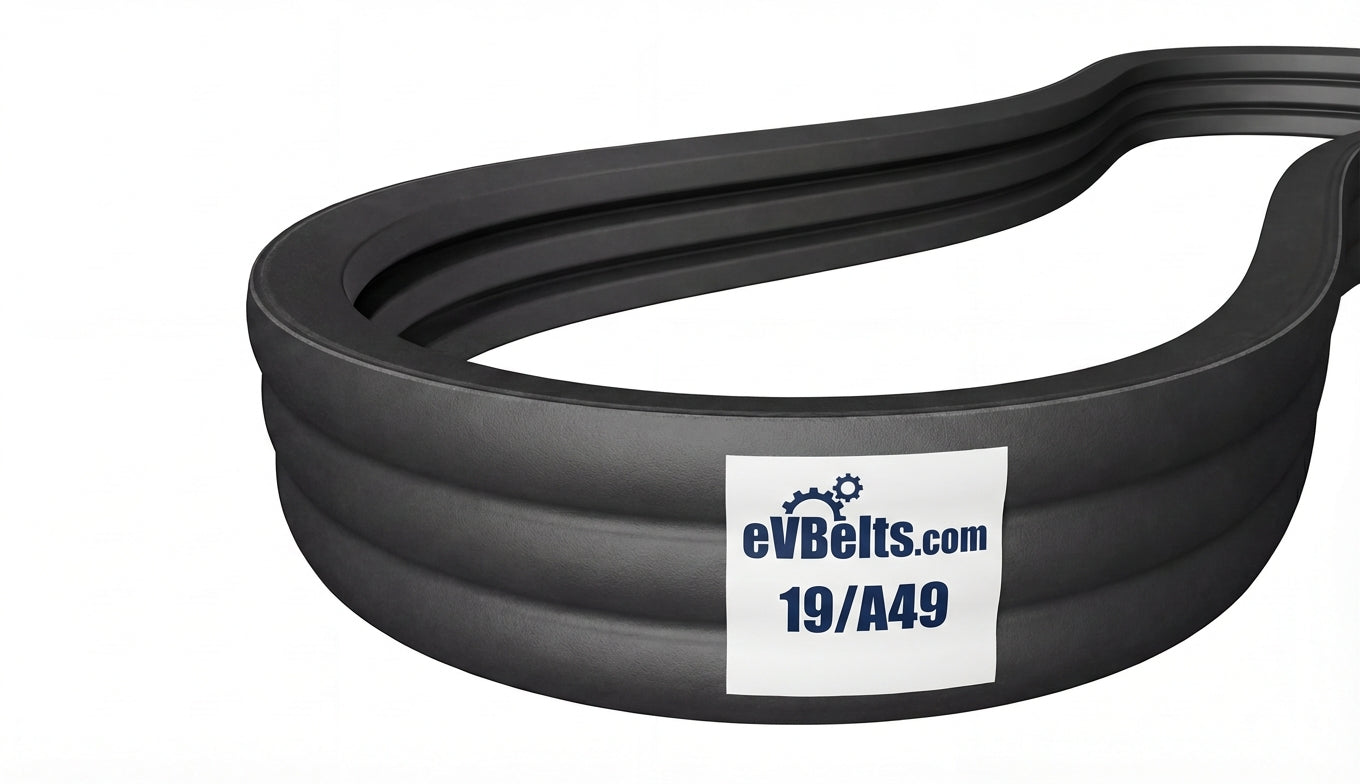

The 19/A49 is a factory-joined 19-band A banded belt assembly measuring 10.04" wide x 50.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213705

$144.19

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	19/A49
Top Width	10.04 in / 255.02 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	49.0 in / 1244.6 mm
Outside Length	50.3 in / 1277.6 mm
Effective Length	50.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	19
