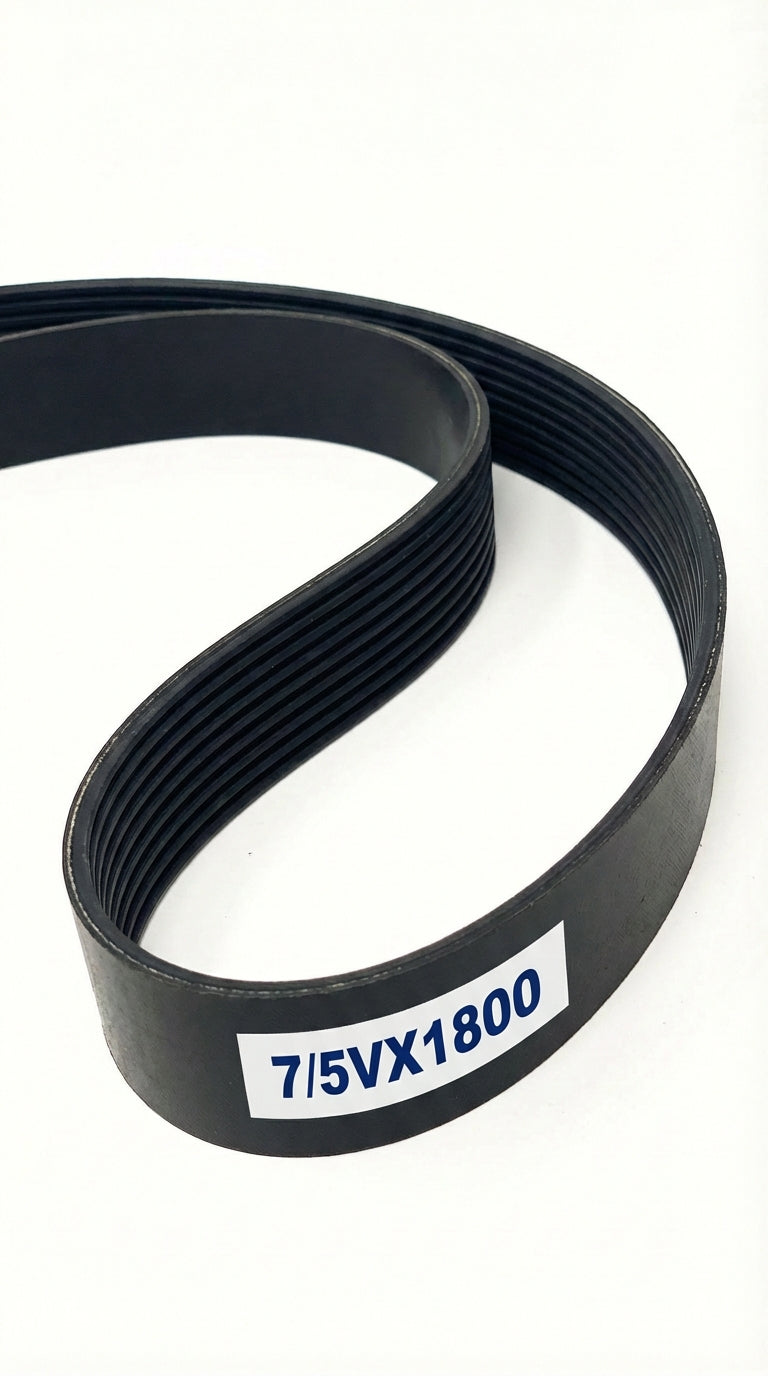

7/5VX1800

Top Width: 4.555" (115.7mm)
Outside Length: 180.6" (4587.2mm)
Inside Length: 179" (4546.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 7-Band Set

The 7/5VX1800 is a factory-joined 7-band 5VX banded belt assembly measuring 4.555" wide x 180.6" long, offering improved flexibility around smaller pulleys.

SKU: 1226016

$407.25

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	7/5VX1800
Top Width	4.555 in / 115.7 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	179.0 in / 4546.6 mm
Outside Length	180.6 in / 4587.2 mm
Effective Length	180.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	7
Cogged	Yes
