9/5V2500

Top Width: 5.865" (148.97mm)
Outside Length: 250.6" (6365.2mm)
Inside Length: 249" (6324.6mm)
Min Pulley Diameter: 7.1"
Configuration: 9-Band Set

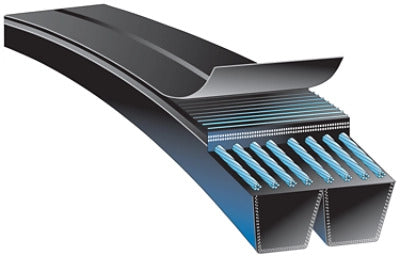

The 9/5V2500 is a factory-joined 9-band 5V banded belt assembly measuring 5.865" wide x 250.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224800

$990.40

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	9/5V2500
Top Width	5.865 in / 148.97 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	249.0 in / 6324.6 mm
Outside Length	250.6 in / 6365.2 mm
Effective Length	250.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	9
