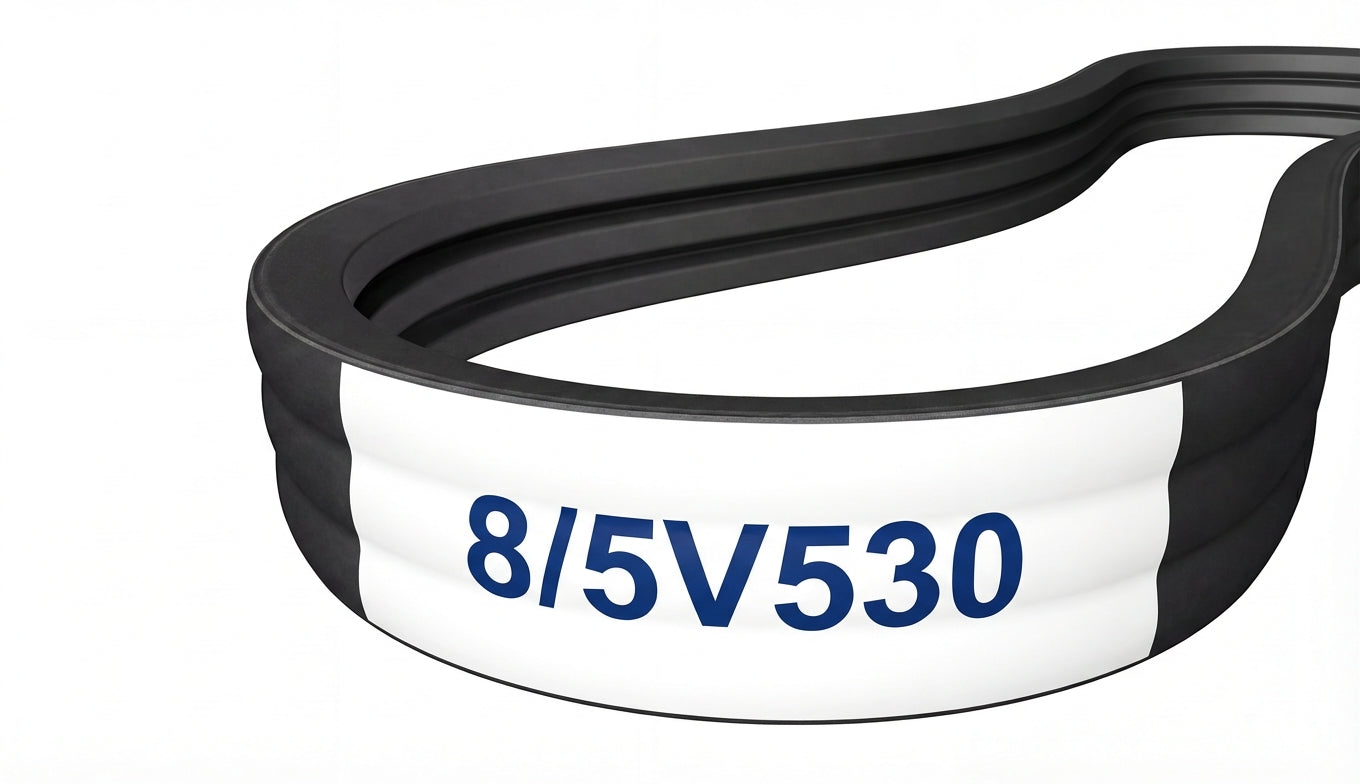

8/5V530

Top Width: 5.21" (132.33mm)
Outside Length: 53.6" (1361.4mm)
Inside Length: 52" (1320.8mm)
Min Pulley Diameter: 7.1"
Configuration: 8-Band Set

The 8/5V530 is a factory-joined 8-band 5V banded belt assembly measuring 5.21" wide x 53.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224734

$180.88

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	8/5V530
Top Width	5.21 in / 132.33 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	52.0 in / 1320.8 mm
Outside Length	53.6 in / 1361.4 mm
Effective Length	53.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	8
